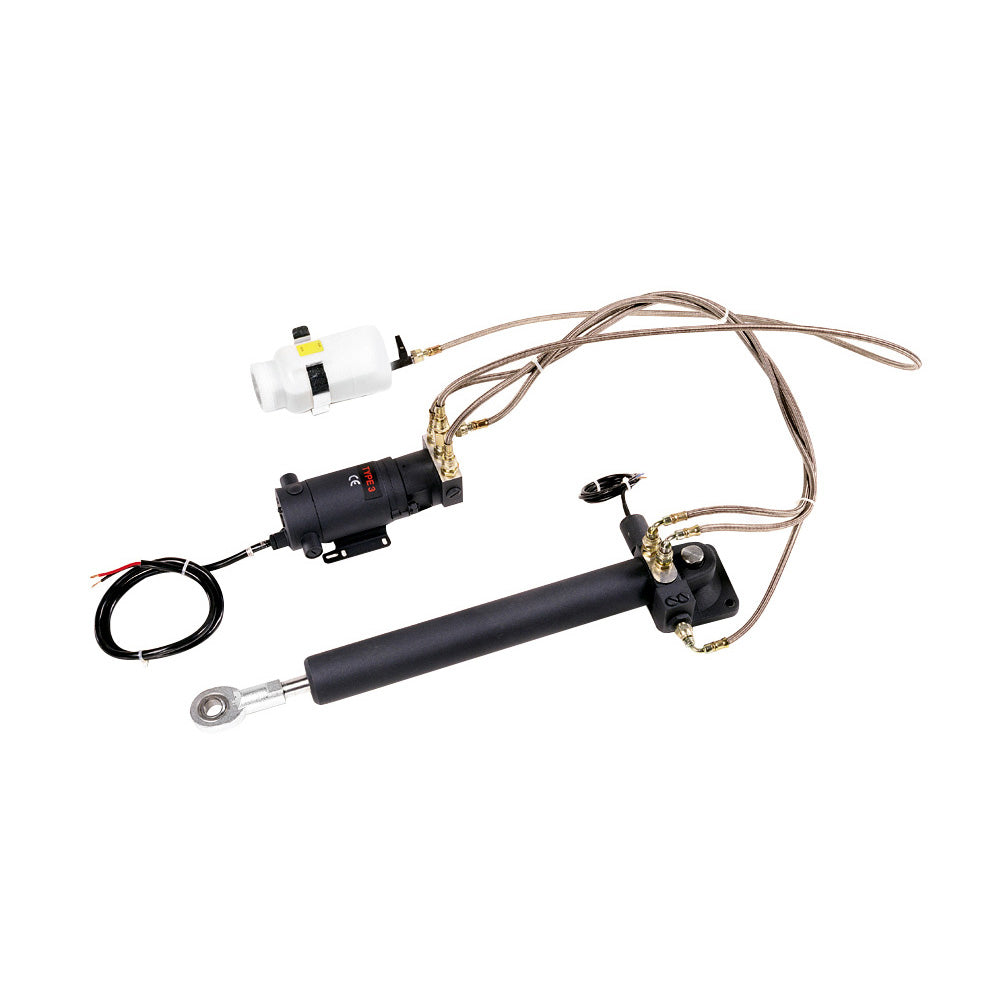

The Raymarine Type 3 Hydraulic Linear drive is engineered for mechanically steered vessels up to 77,000 lb (35,000 kg) displacement. Unlike systems designed for hydraulic steering, this unit creates a fully isolated autopilot steering circuit alongside your existing mechanical setup — keeping autopilot control completely separate from your primary helm. The package includes a self-contained hydraulic ram, reversing pump, and fluid reservoir, delivering reliable hands-free steering on larger coastal and offshore boats.

Specifications:

• Designed for mechanically steered vessels — not hydraulic steering systems
• Maximum vessel displacement: 77,000 lb (35,000 kg)
• Operating voltage: 12V
• Hydraulic ram: self-contained autopilot steering cylinder with integrated load-limiting system and built-in clutch for friction-free manual steering when autopilot is disengaged
• Reversing hydraulic pump: drives the hydraulic ram
• Hydraulic fluid reservoir: supplies fluid to the system
• Provides a fully isolated autopilot steering circuit
