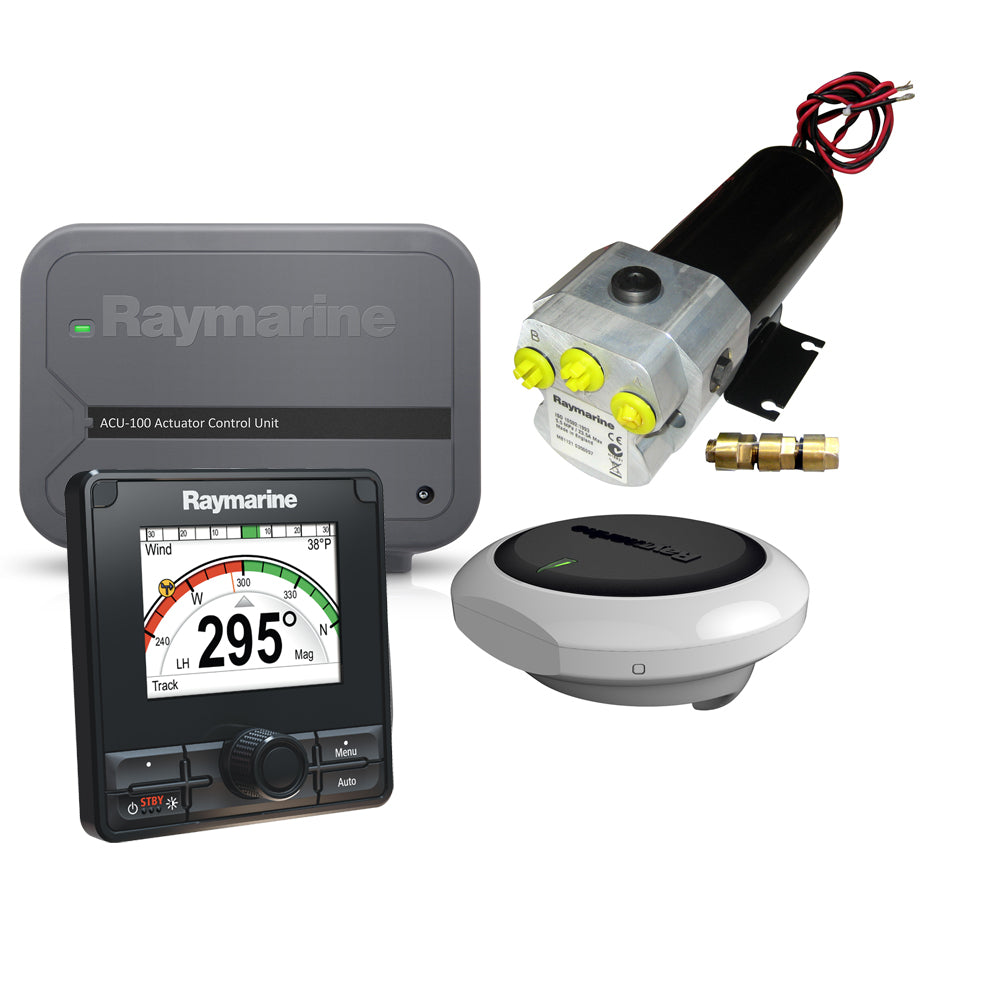

The Raymarine EV-100 Power Evolution Autopilot is a complete, ready-to-install system engineered for small, hydraulically steered powerboats running 12V DC electrical systems. Powered by Evolution AI technology, it requires no calibration out of the box and delivers precise, adaptive steering performance through built-in 9-axis motion sensing. Trolling patterns are built in, and the included p70Rs control head supports a full range of autopilot modes including Track, Wind Vane, and Power Steer.

Specifications:

• Application: Small, hydraulically steered powerboats
• Power: 12V DC
• Autopilot technology: Evolution AI — no calibration required
• Built-in trolling patterns: Yes
• Supported drive type: Type 0.5 Hydraulic Pump (included) — compatible with 3.1" to 6.7" cu in ram

EV-1 Sensor Core:

• 9-axis sensor monitoring heading, pitch, roll, and yaw in all three dimensions
• Solid-state sensor technology with dynamic accuracy to within 2 degrees in all conditions
• Mountable above or below deck
• Fully sealed housing rated to IPX6 and IPX7 waterproofing and submersion standards
• SeaTalk^ng single-cable connection carries both power and data to the ACU and extended SeaTalk^ng/NMEA 2000 networks
• Provides fast, reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70Rs Autopilot Control Head:

• Rotary control knob with LightHouse user interface
• Startup wizard for quick system configuration
• Wide 160° viewing angle
• Anti-reflective coating for bright-sunlight visibility
• Low power draw: typically 132mA / 1.6W — 27% less than ST70 at x4 measured brightness
• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• System and group dimming/illumination control
• Supports multiple data sources
• SeaTalk^ng/NMEA 2000 and SeaTalk1 connectivity — no bridging required

ACU-100 Actuator Control Unit:

• Delivers autopilot drive power and supplies power to the SeaTalk^ng bus
• Compatible drive type: Type 0.5 Hydraulic Pump (3.1" to 6.7" cu in ram)

In the Box:

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-100 Actuator Control Unit
• Type 0.5 Hydraulic Pump 12V
• Evolution Cabling Kit:
  • 1x SeaTalk^ng Power Cable (0.4m)
  • 1x SeaTalk^ng Backbone Cable (5m)
  • 1x SeaTalk^ng Spur Cable (0.4m)
  • 1x SeaTalk^ng 5-Way Connector Block
  • 2x SeaTalk^ng T-Piece Connector
  • 2x SeaTalk^ng Terminator
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket
