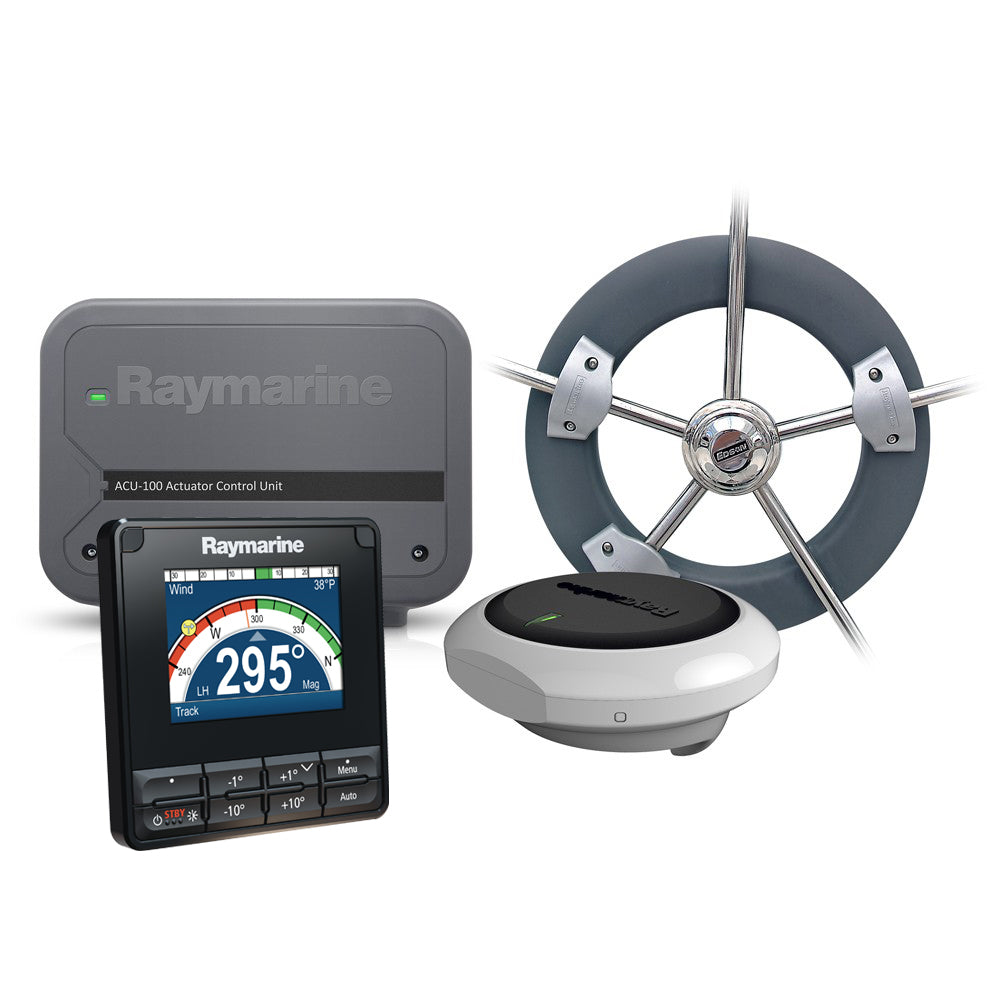

The Raymarine EV-100 Wheel Evolution Autopilot is a complete, ready-to-install system built for sailboat wheel steering on vessels up to 16,500 lbs. Powered by Evolution AI technology, it requires no calibration and connects via SeaTalkng for straightforward integration with existing Raymarine networks and NMEA 2000 devices.

Specifications:

• Complete autopilot system in a single box
• Evolution AI for adaptive, superior autopilot performance
• No calibration required
• Compatible with most sailboat wheel types
• Simple, robust clutch engagement mechanism
• Designed for boats up to 16,500 lbs (7,500 kg)
• 12V DC power system compatibility
• Includes p70s Autopilot Controller

EV-1 Sensor Core:

• 9-axis sensor monitors vessel motion across all three dimensions
• Combines advanced solid-state sensors with the Evolution autopilot processor in a single housing
• Installs above or below deck; fully sealed to IPX6 and IPX7 waterproofing and submersion standards
• Designed for Evolution mechanical and hydraulic autopilot systems
• SeaTalkng networking provides a single cable connection for power and data to the ACU and extended SeaTalkng and NMEA 2000 networks
• Monitors heading, pitch, roll, and yaw for real-time adaptation to changing sea conditions
• Solid-state sensor technology delivers dynamic accuracy within 2 degrees in all conditions
• Provides fast, reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70s Autopilot Control Head:

• Push-button operation controller designed for sailboats
• LightHouse user interface for quick and intuitive operation
• Wide 160° viewing angle
• Start-up wizard for fast system configuration
• Anti-reflective coating for improved visibility in bright sunlight
• Low power draw — typically 132mA / 1.6W, approximately 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• Simple system and group dimming/illumination control
• Supports multiple data sources
• SeaTalkng / NMEA 2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Actuator Control Unit:

• Delivers reliable autopilot drive power
• Provides power to the SeaTalkng bus

In the Box:

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Wheel Drive
• Evolution Cabling Kit including: 1x SeaTalkng Power Cable (0.4m), 1x SeaTalkng Backbone Cable (5m), 1x SeaTalkng Spur Cable (0.4m), 1x SeaTalkng 5-way Connector Block, 2x SeaTalkng T-piece Connector, 2x SeaTalkng Terminator
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

Resources:

• Quick Start Guide (PDF)
• Product Brochure (PDF)
