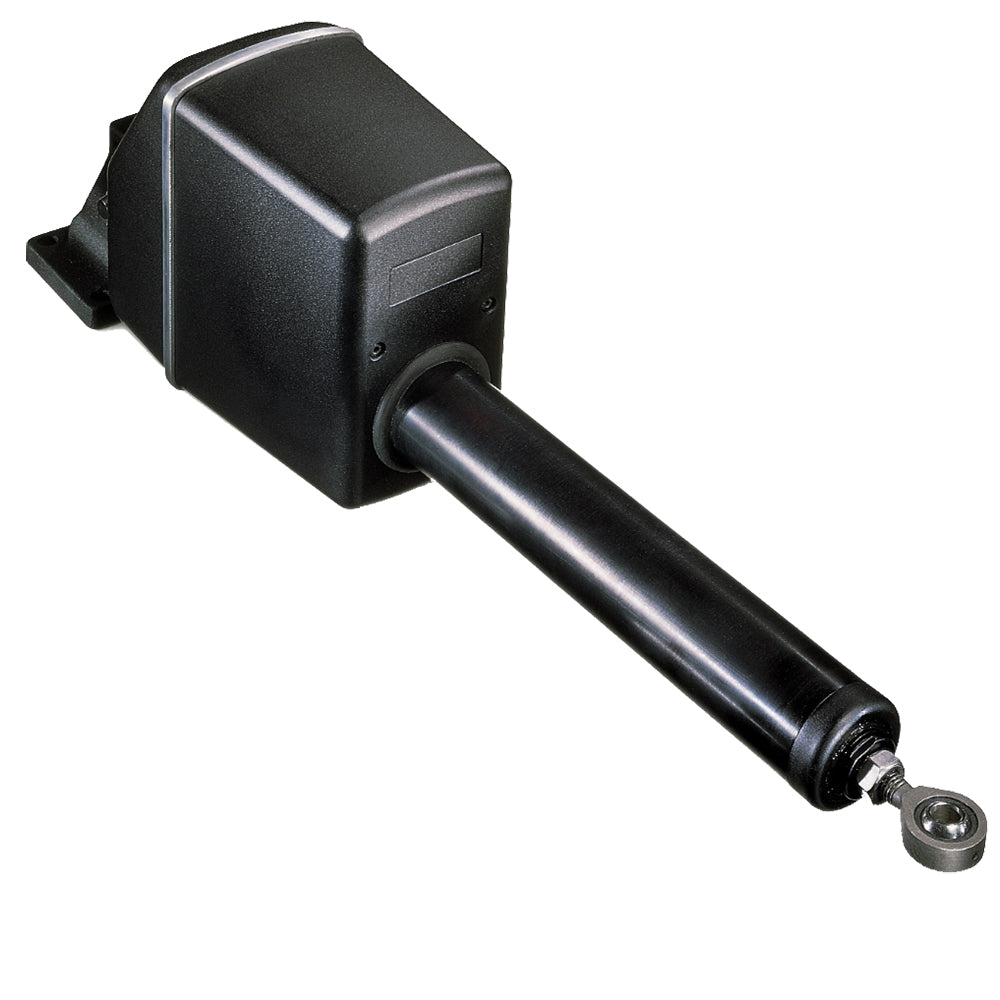

The Raymarine Type 2 Long Linear Drive Unit operates at 24V and is engineered for sailing vessels requiring reliable, below-decks autopilot control. It connects directly to the tiller arm or rudder quadrant, translating commands from the ACU-400 corepack into precise rudder movement with strong thrust, quick hard-over response, and low acoustic output. An independent tiller arm connection is used for the rudder stock interface; accessory fittings from your steering system manufacturer may be needed, and the steering system must be capable of being back-driven from the rudder.

Specifications:

• Drive Type: Type 2 Long
• Voltage: 24V
• Maximum boat displacement: 20,000 kg (44,000 lb)
• Peak thrust: 480 kg (1,050 lb)
• Maximum stroke: 400 mm (16")
• Hard-over to hard-over time: 14 seconds
• Maximum rudder torque: 1,660 Nm (14,700 lb·in)
• Power consumption: 48–72W
• Compatible corepack: ACU-400
