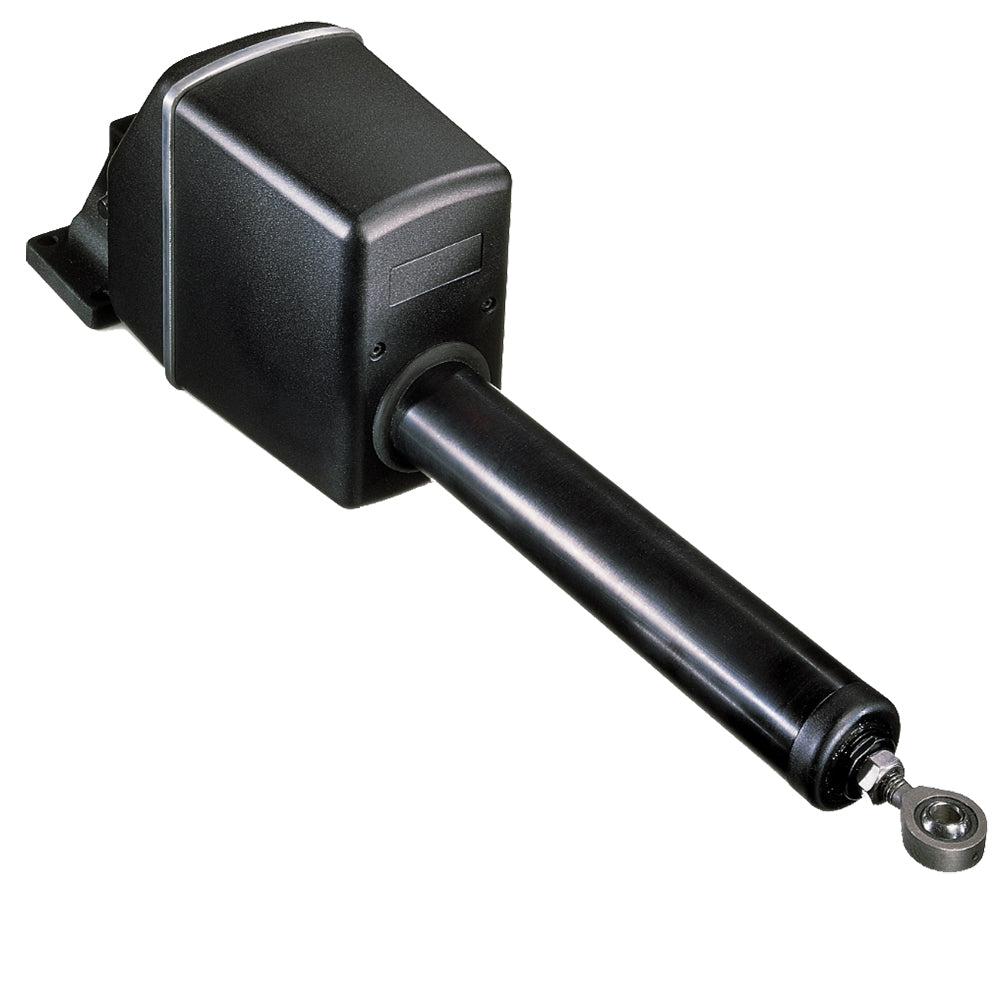

Raymarine Type 2 Long Linear Drive Unit - 24V
Raymarine Type 2 Long Linear Drive Unit - 24V
Capt. Joel will email you the moment this lands. No spam, one message.
Similar autopilots we have in stock now
Raymarine EV-100 Power Evolution Autopilot
$1,749.99 · In stock
Raymarine EV-100 Tiller Evolution Autopilot
$2,049.99 · In stock
Raymarine EV-100 Wheel Evolution Autopilot
$2,049.99 · In stock
Not sure what fits your boat? Call (360) 504-8112
The Raymarine Type 2 Long Linear Drive Unit operates at 24V and is engineered for sailing vessels requiring reliable, below-decks autopilot control. It connects directly to the tiller arm or rudder quadrant, translating commands from the ACU-400 corepack into precise rudder movement with strong thrust, quick hard-over response, and low acoustic output. An independent tiller arm connection is used for the rudder stock interface; accessory fittings from your steering system manufacturer may be needed, and the steering system must be capable of being back-driven from the rudder.
Specifications:
- Drive Type: Type 2 Long
- Voltage: 24V
- Maximum boat displacement: 20,000 kg (44,000 lb)
- Peak thrust: 480 kg (1,050 lb)
- Maximum stroke: 400 mm (16")
- Hard-over to hard-over time: 14 seconds
- Maximum rudder torque: 1,660 Nm (14,700 lb·in)
- Power consumption: 48–72W
- Compatible corepack: ACU-400
