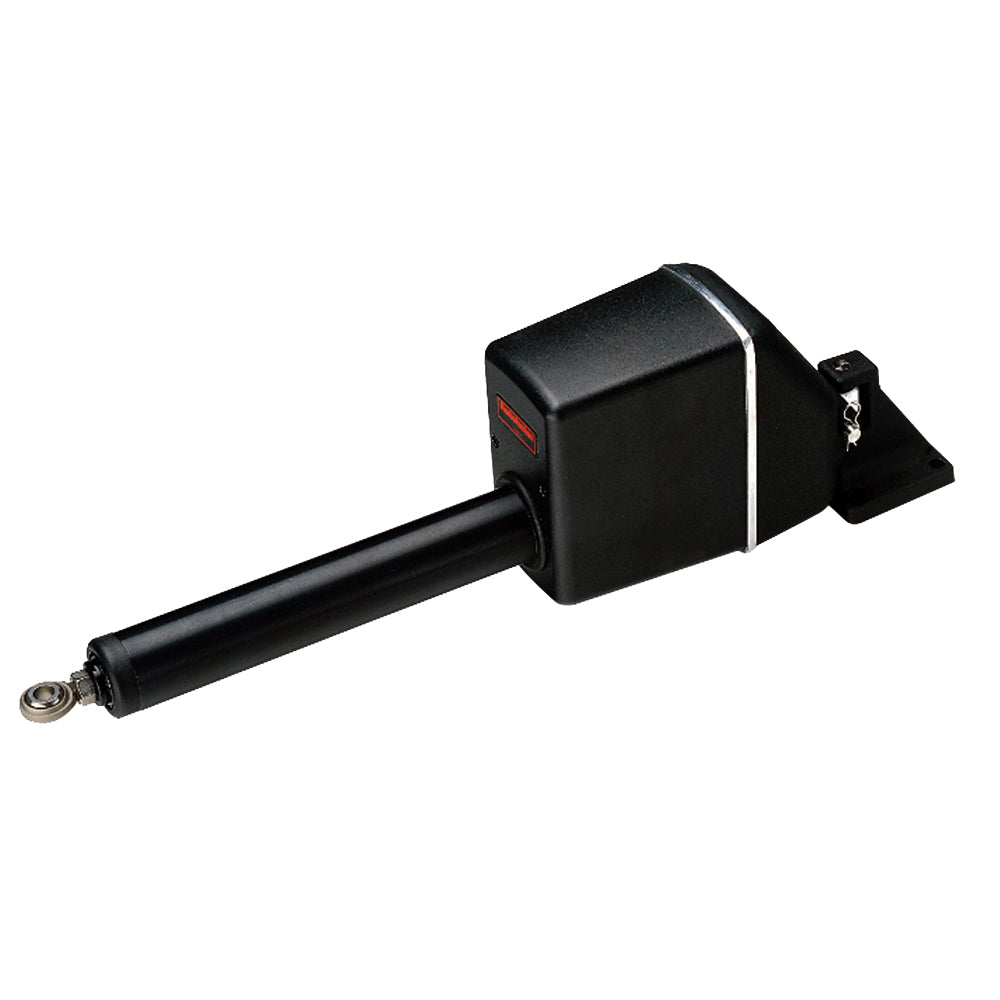

The Raymarine Type 2 Long Linear Drive delivers reliable, powerful autopilot control for mechanically steered vessels up to 44,000 lb (20,000 kg). Built around a high-tensile belt drive and epicyclic gearbox, this 12V unit pairs a strong electric motor with an electromagnetic fail-safe clutch to provide fast hardover times and quiet, efficient operation. Low backdrive force keeps the steering feeling natural whenever the autopilot is in standby mode.

Specifications:

• Type 2 Long Linear Drive configuration
• Designed for mechanically steered vessels
• Maximum vessel displacement: 44,000 lb (20,000 kg)
• Operating voltage: 12V
• Low backdrive force minimizes steering interference in standby
• Electromagnetic fail-safe clutch controls the electric motor
• High-tensile belt drive and epicyclic gearbox construction
• High performance with minimal current consumption

Resources:

• Installation Guide (PDF)
