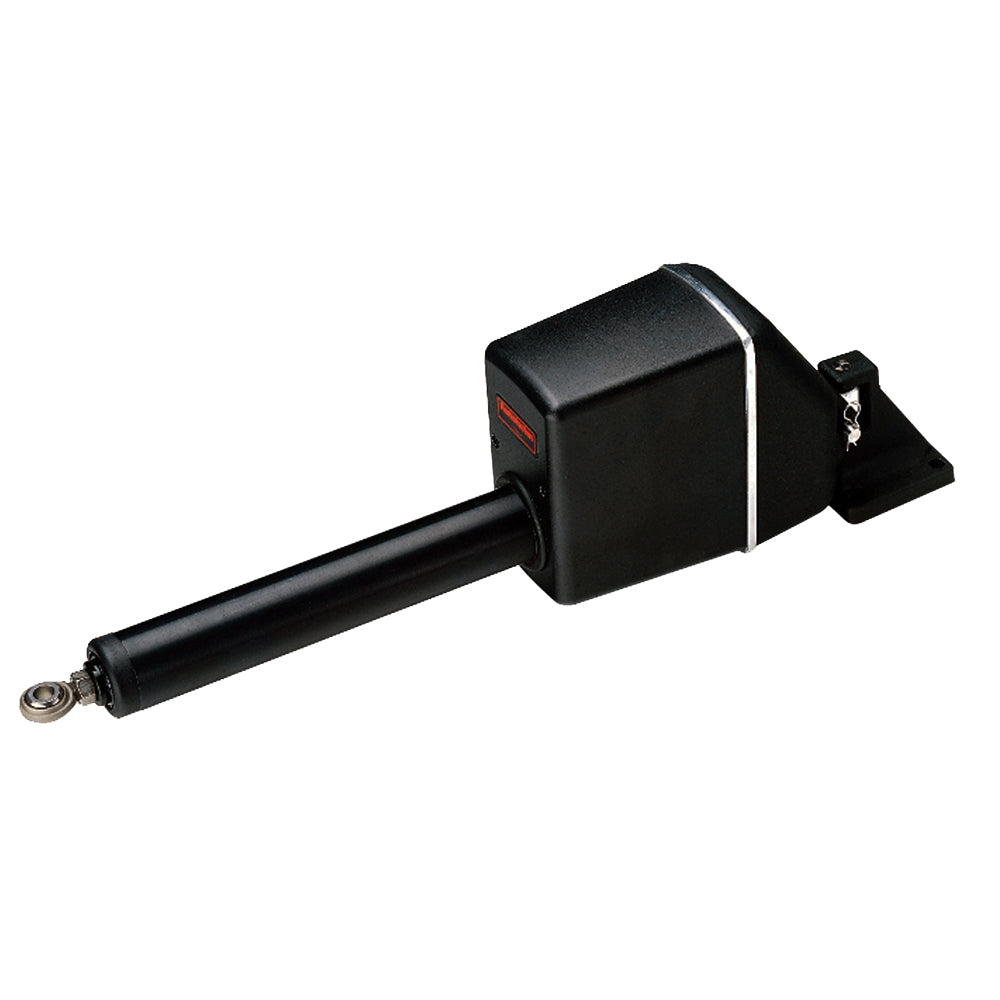

The Raymarine Type 2 (short) Linear Drive delivers reliable autopilot control for mechanically steered vessels up to 33,000 lb (15,000 kg). Built around a high-tensile belt drive and epicyclic gearbox, it combines strong thrust with fast hardover times and quiet operation — all while keeping current draw low.

Specifications:

• Compatible with mechanically steered vessels up to 33,000 lb (15,000 kg)
• Type 2 short-body form factor
• 12V operation
• Low backdrive force minimizes steering resistance when autopilot is in standby mode
• Powerful electric motor controlled by an electromagnetic fail-safe clutch
• High-tensile belt drive with epicyclic gearbox for smooth, efficient power transfer
• High performance output engineered for minimum current consumption
