Raymarine EV-100 Tiller Evolution Autopilot
Raymarine EV-100 Tiller Evolution Autopilot
The Raymarine EV-100 Tiller Evolution Autopilot delivers a fully integrated, ready-to-install autopilot solution for tiller-steered sailboats up to 13,200 lbs. Built around Raymarine's Evolution AI technology, the system requires no calibration and relies on a 9-axis EV-1 Sensor Core to continuously monitor heading, pitch, roll, and yaw -- adapting in real time to changing sea conditions. The compact tiller drive, p70s control head, and ACU-100 work together over SeaTalkng and NMEA 2000 networks, making this a proven choice among competitive single-handed sailors worldwide.
Specifications:
- Autopilot type: Tiller drive, Evolution AI
- Suitable for tiller-steered vessels up to 13,200 lbs (6,000 kg)
- Power requirement: 12V DC
- No calibration required
- EV-1 Sensor Core: 9-axis sensor monitoring heading, pitch, roll, and yaw
- Sensor Core waterproofing: IPX6 and IPX7 rated; suitable for above- or below-deck mounting
- Heading accuracy: within 2 degrees in all conditions
- Provides heading data for MARPA, radar overlay, and heading modes on Raymarine MFDs
- SeaTalkng connectivity: single cable for power and data to ACU and extended network
- NMEA 2000 compatible
- p70s Control Head: push-button operation, LightHouse user interface
- p70s viewing angle: 160°
- p70s power consumption: typically 132mA / 1.6W (27% less than ST70 at x4 measured brightness)
- p70s anti-reflective coating for sunlight visibility
- p70s startup wizard for quick configuration
- p70s supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, Jog Steer
- p70s connectivity: SeaTalkng / NMEA 2000 and SeaTalk1 (no bridging required)
- p70s: system and group dimming/illumination; multiple data source support
- ACU-100 provides autopilot drive power and powers the SeaTalkng bus

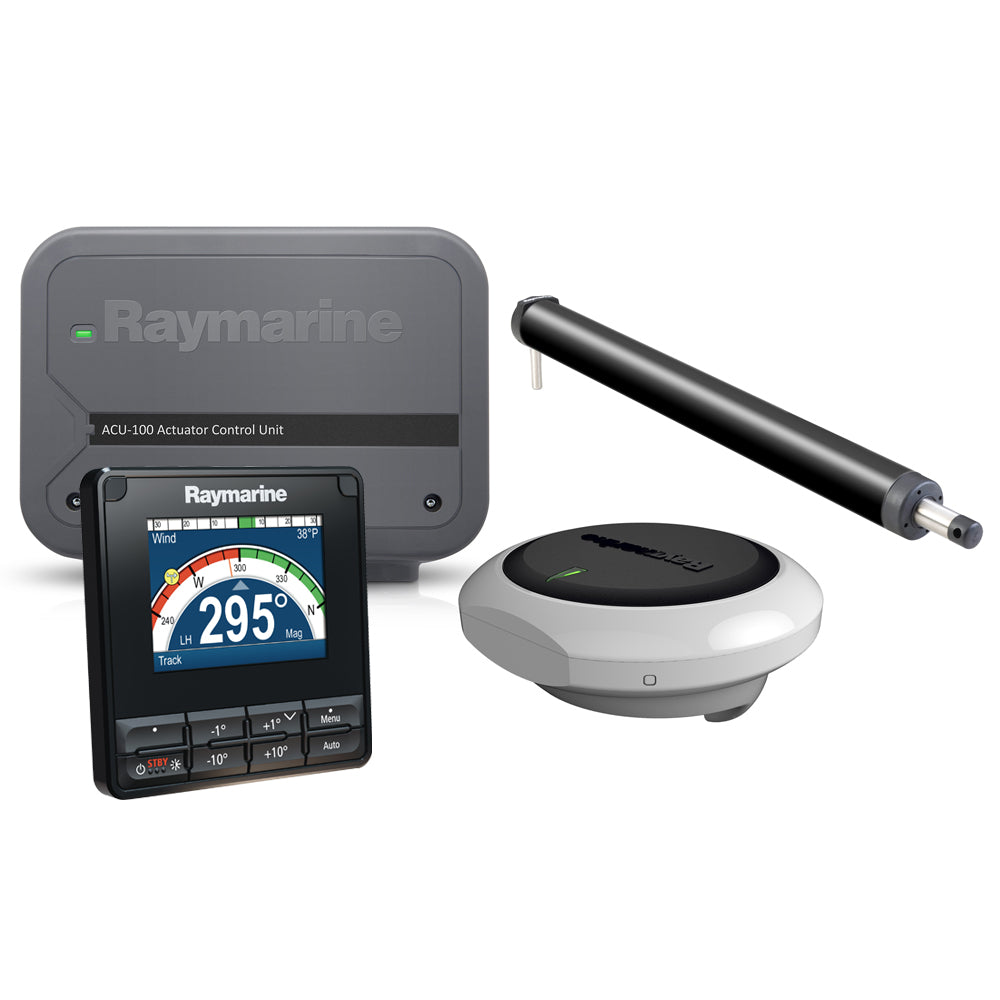

In the Box:
- EV-1 Sensor Core
- p70s Autopilot Control Head
- ACU-100 Actuator Control Unit
- Tiller Drive
- Tiller Pin (sold in packages of 5)
- Mounting Socket (sold in packages of 5)
- Evolution Cabling Kit: 1x SeaTalkng Power Cable (0.4m), 1x SeaTalkng Backbone Cable (5m), 1x SeaTalkng Spur Cable (0.4m), 1x SeaTalkng 5-way Connector Block, 2x SeaTalkng T-piece Connector, 2x SeaTalkng Terminator
- EV Unit O-Ring Pack (set of 2)
- Wall Mounting Bracket
