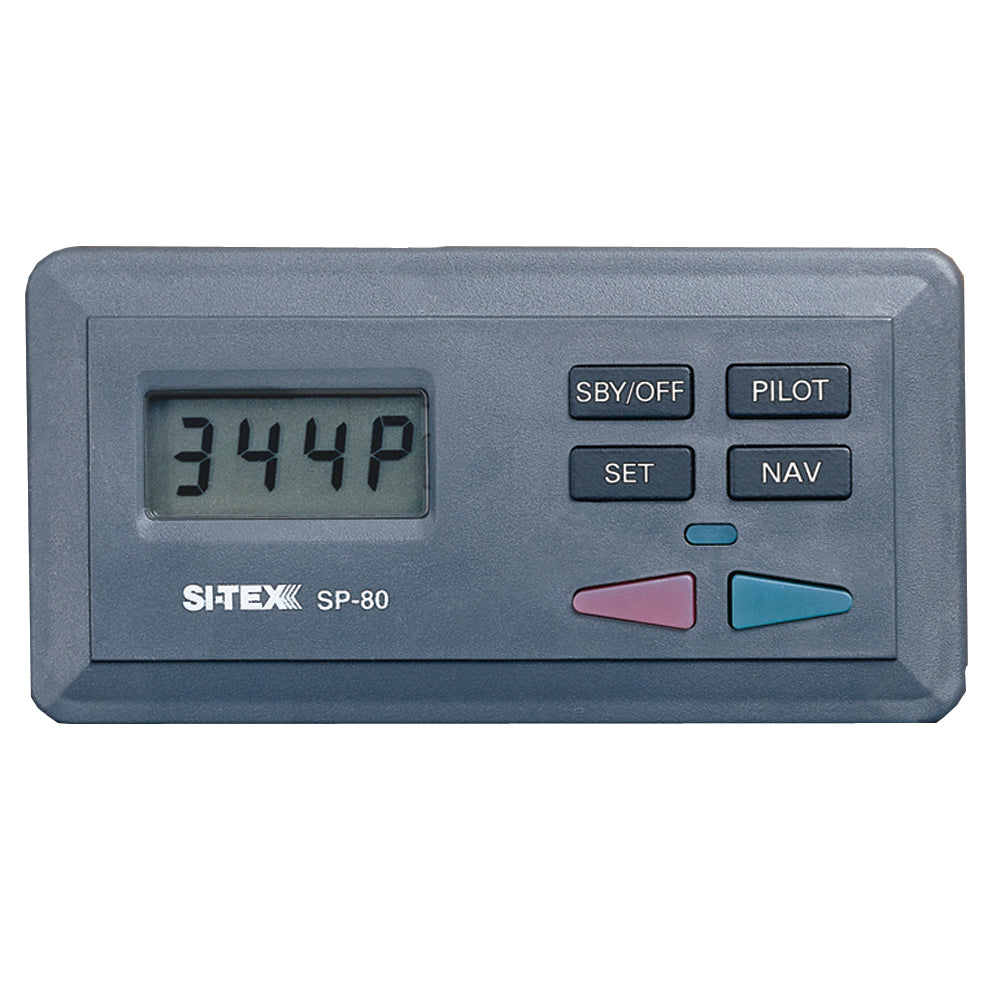

The SI-TEX SP-80-1 is a fixed-mount autopilot system built for inboard, outboard, and sterndrive vessels running hydraulic or quadrant steering. A built-in NMEA 0183 Loran/GPS interface lets the unit navigate automatically to your next waypoint, while Ghost Rudder backup keeps the system functional even if rudder feedback fails. The waterproof control head mounts flush or surface-mounted, and a second station can be added via the SI-TEX SP-70 Handheld Control Unit. This package includes the rotary feedback unit but no drive unit.

Specifications:

• Designed for inboard, outboard, and sterndrive vessels with hydraulic or quadrant steering systems
• Built-in NMEA 0183 Loran/GPS interface for automatic waypoint navigation
• Waterproof control head -- flush or surface mountable
• Expandable to a second station using the SI-TEX SP-70 Handheld Control Unit
• Bold, backlit display with ten selectable brightness levels
• Digital readout of rudder angle and active operating mode
• Automatic Sea State and Trim controls
• Ten selectable levels of rudder sensitivity with high and low speed settings
• Rudder feedback unit included (rotary type) -- verifies autopilot commands
• Ghost Rudder backup calculates rudder movements from memory if feedback signal is lost
• Heading Output feature for radar display stabilization
• Built-in diagnostics, self-tests, and visual/audible alarms
• Power Steering mode for push-button steering; Stand-By mode for manual steering
• Compatible with solenoid valves
• Optional analog Rudder Angle Indicator available separately
• Previously listed as part number SP-80RLP
