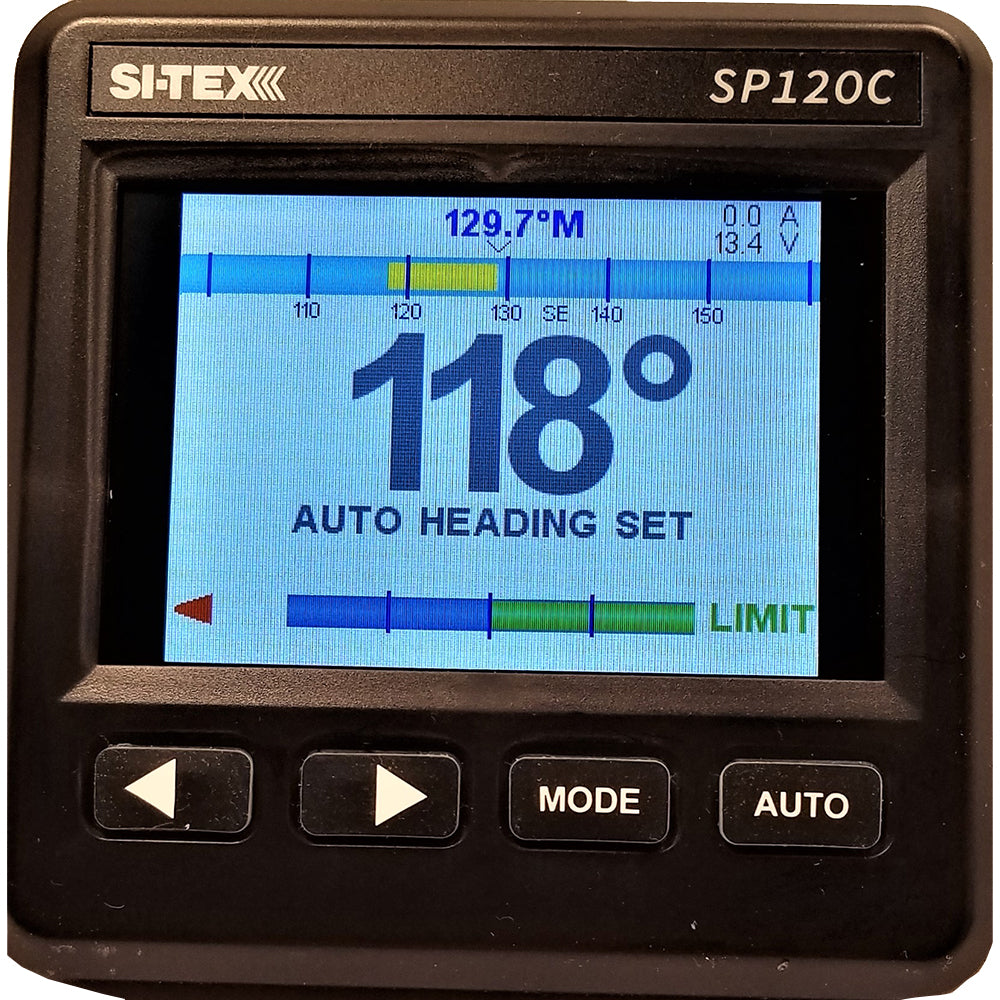

The SI-TEX SP-120C brings full-color autopilot capability to hydraulic, mechanical, and solenoid-steered vessels under 38 feet. All wiring terminates directly at the control head — no junction box required. A high-performance 9-axis rate gyro compass delivers precise steering response, while NMEA-0183 GPS integration enables waypoint and route following when paired with a chartplotter. The compact, splash-proof color LCD simultaneously displays compass heading, selected heading, and rudder angle, making situational awareness straightforward at a glance. Covered by a 2-year SI-TEX warranty.

Steering Modes:

• Manual (Power Steer)
• Auto — maintains a selected magnetic course
• GPS — steers to waypoints or routes via GPS interface
• Wind — steers to wind angle when connected to a wind sensor (sailboat installations)

Specifications:

• Waterproof rating: IPX6
• Control head dimensions: 110 mm L x 110 mm W (4.1" x 4.1")
• Power supply: 12/24 V DC
• Display: Color LCD with constant compass heading and rudder angle indicators
• Standby current consumption: 0.5 A at 12 V DC
• Maximum drive output current: 15 A
• Operating temperature: -10°C to +55°C
• Data connections: NMEA-0183 GPS input; NMEA-0183 10 kHz compass heading output
• Course detection accuracy: <1 degree
• Rudder feedback: Virtual rudder feedback mode (outboards) or separate rudder feedback unit (inboards)
• GPS inputs accepted: Speed over ground (SOG) and course over ground (COG)
• Warranty: 2-year SI-TEX limited warranty

In the Box:

• SI-TEX SP-120C color LCD autopilot control head
• NMEA interface cables
• 9-axis electronic rate gyro compass
• Control head sun cover
• Mounting screws
• Product manual
