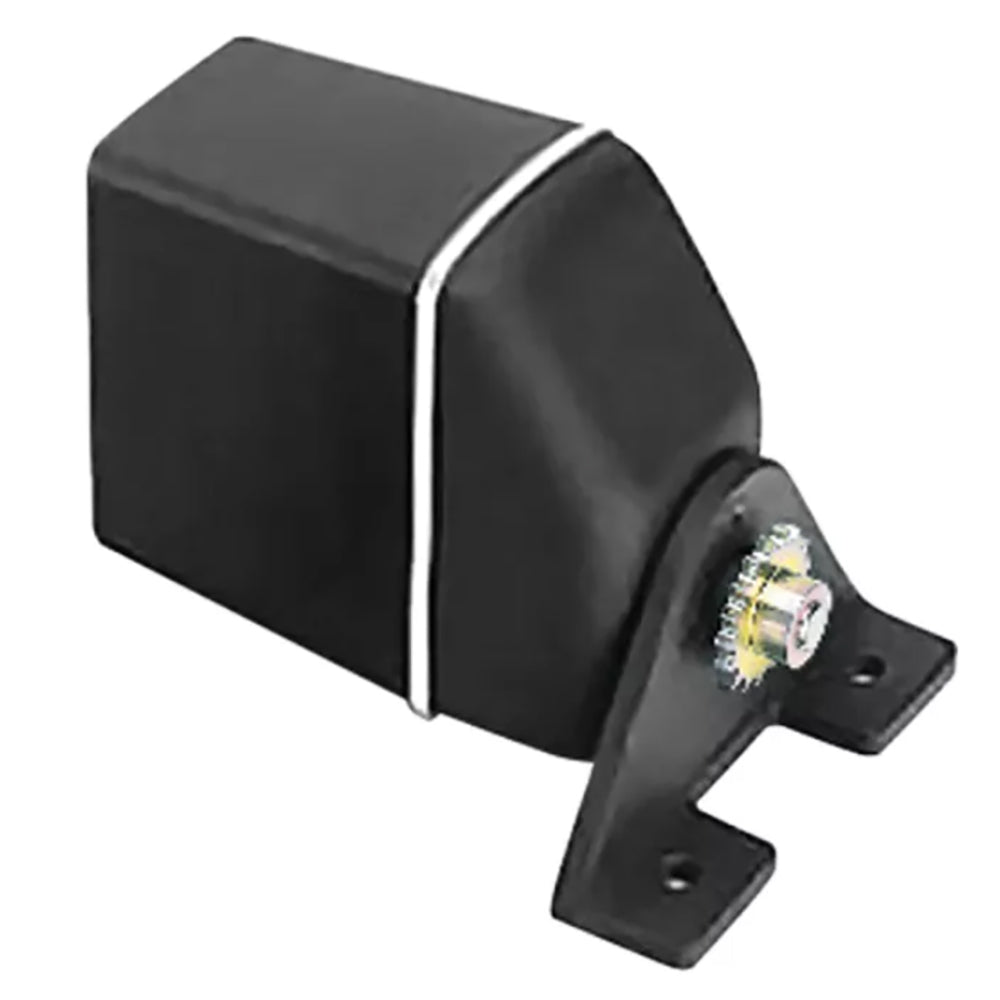

The Raymarine Rotary Drive Type 2 operates at 12V and is engineered for power and sailboat steering systems driven from the helm via chain and sprocket — including cable and rod steering configurations. Delivering smooth, quiet autopilot-controlled steering with strong output torque, it pairs with the ACU-400 corepack for reliable performance. Note that optional drive sprockets and steering chain modifications may be required for installation.

Specifications:

• Drive Type: Rotary, Type 2
• Voltage: 12V
• Maximum Boat Displacement: 20,000 kg
• Peak Output Torque: 34 Nm
• Maximum Shaft Speed: 33 RPM
• Recommended Hard-Over Time (no load): 10 seconds
• Power Consumption: 60–84W
• Corepack Used: ACU-400
