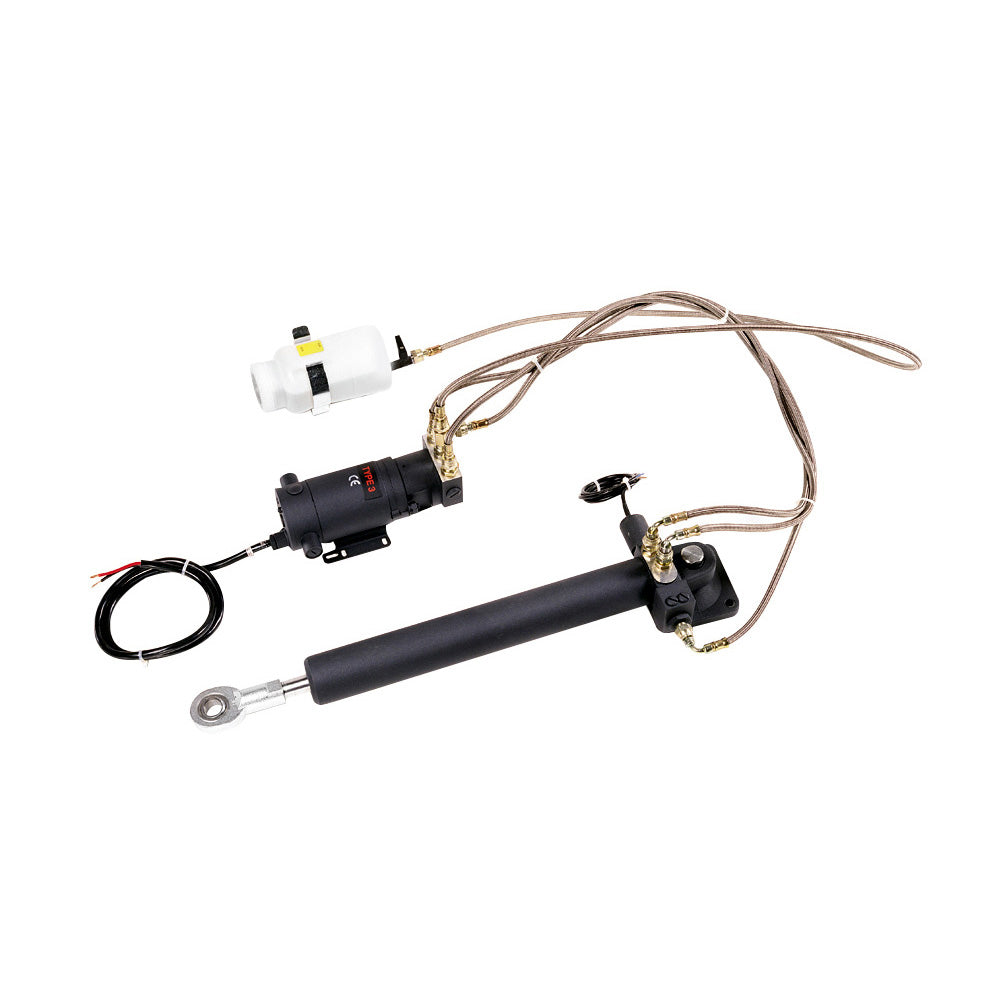

The Raymarine Hydraulic Linear Drive Type 3 (24V) delivers a fully isolated autopilot steering solution engineered for vessels equipped with existing mechanical steering systems — not hydraulic steering. The system integrates three core components: a self-contained hydraulic ram with a load-limiting system and built-in clutch for friction-free manual steering when the autopilot is disengaged, a reversing hydraulic pump to power the ram, and a hydraulic fluid reservoir to supply the system.

Specifications:

• Voltage: 24V
• Drive Type: Hydraulic Linear Drive, Type 3
• Compatible Steering: Mechanical steering systems (not intended for hydraulic steering systems)
• Hydraulic Ram: Self-contained autopilot steering cylinder with load-limiting system and built-in clutch
• Clutch Function: Allows friction-free steering when autopilot is not engaged
• Reversing Hydraulic Pump: Included — powers the hydraulic ram
• Hydraulic Fluid Reservoir: Included — supplies hydraulic fluid to the system
• System Type: Fully isolated autopilot steering system
