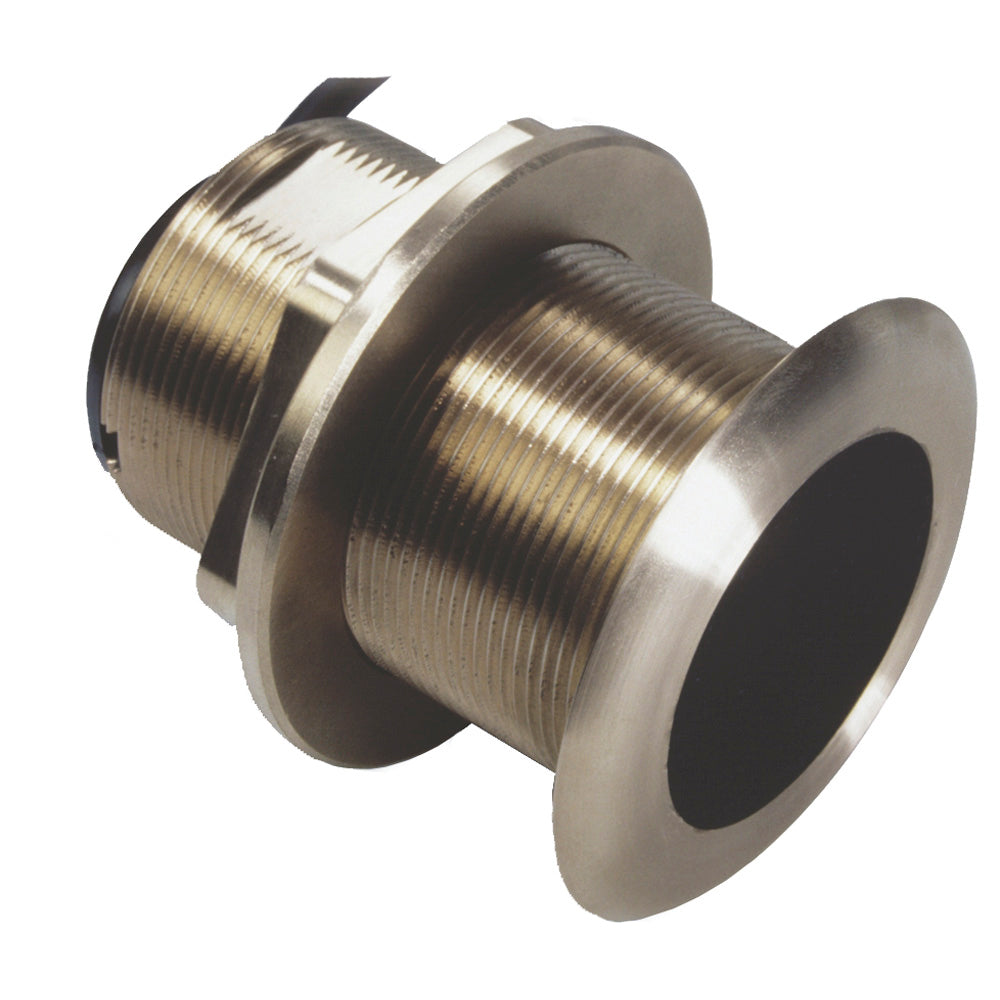

The Lowrance B60-12 is a bronze through-hull transducer built around a 12° Tilted Element™ ceramic design, engineered specifically for hulls with 8°–15° deadrise angles. The internal tilt projects a true vertical beam without a fairing block, delivering accurate depth and temperature readings with clean echo returns. At just 5 mm (3/16") of hull protrusion, the nearly flush profile adds minimal drag below the waterline.

Specifications:

• Transducer type: Tilted Element™ through-hull
• Element tilt: 12° (designed for 8°–15° deadrise angles)
• Housing material: Bronze
• Frequencies: 50/200 kHz
• Power: 600W RMS
• Performance level: Mid-performance
• Sensing: Depth and temperature
• Hull protrusion: 5 mm (3/16")
• Fairing block required: No

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
