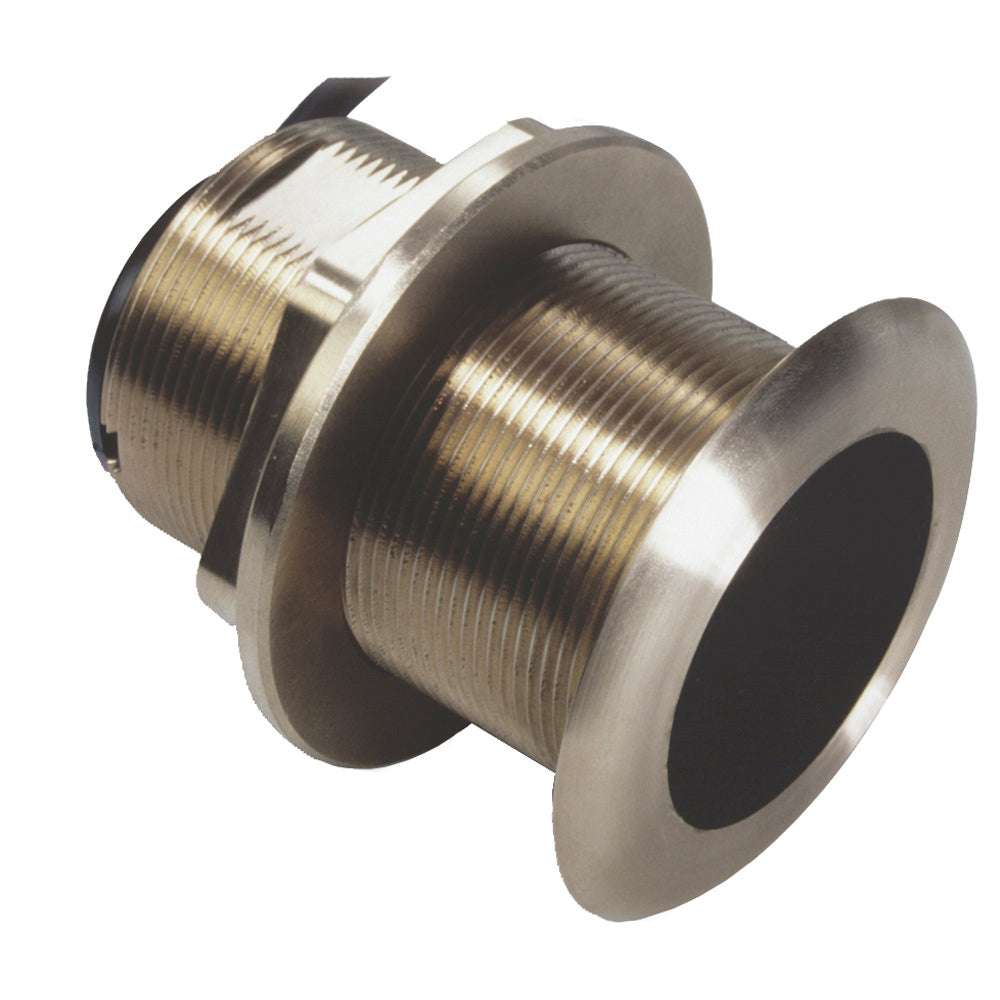

The Lowrance B60-12 is a bronze through-hull transducer with a 12° tilted ceramic element, purpose-built for hulls with 8°–15° deadrise angles. The internal tilt eliminates the need for a fairing block while delivering a true vertical beam — resulting in accurate depth readings and clean echo returns. With only 5 mm (3/16") protruding below the hull, the nearly flush profile keeps drag to a minimum.

Specifications:

• Transducer type: Tilted Element™ through-hull
• Element tilt: 12° (designed for 8°–15° deadrise angles)
• Housing material: Bronze
• Frequencies: 50/200 kHz
• Power: 600W RMS
• Performance level: Mid-performance
• Sensing: Depth and temperature
• Hull protrusion: 5 mm (3/16")
• Fairing block required: No

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
