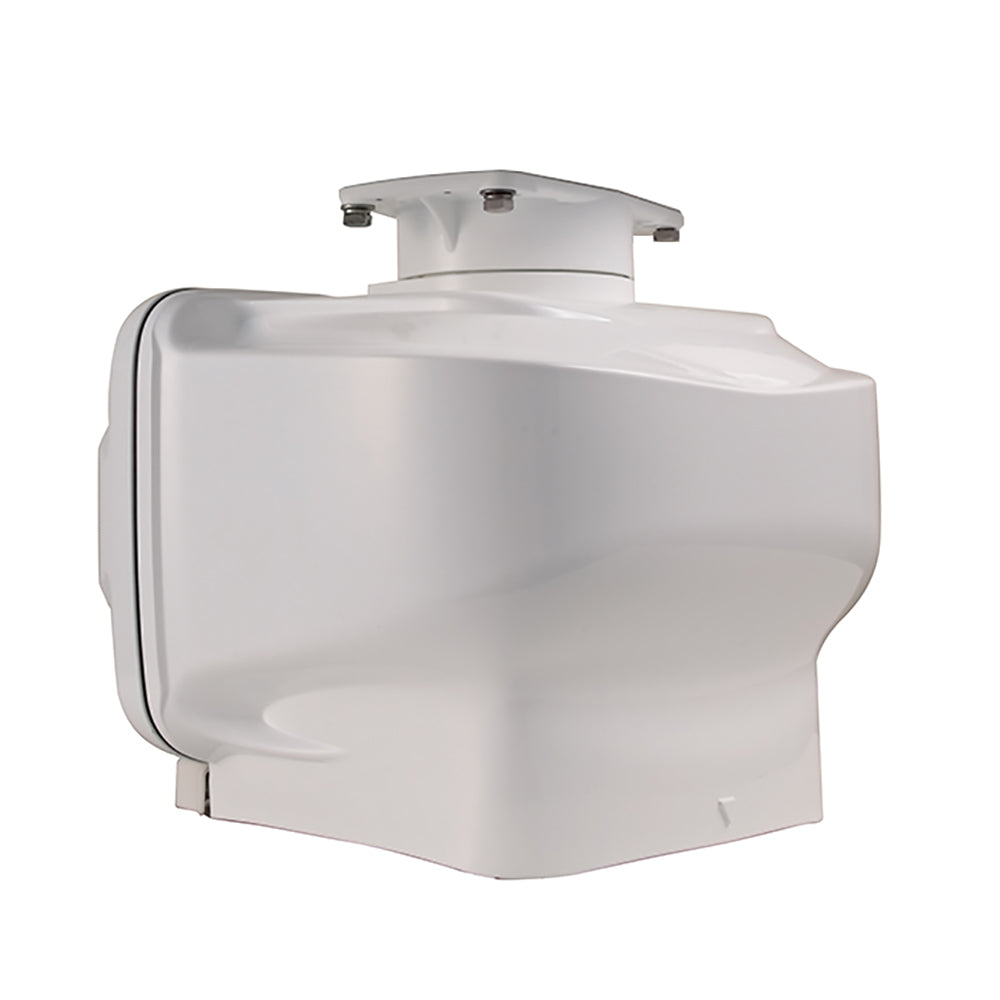

The Furuno DRS12AX "X-Class" 12kW UHD Digital Radar processor delivers a significant advancement over conventional radar technology, offering enhanced detection at both close quarters and out to 96 nautical miles. The redesigned pedestal is 20% lighter than its predecessor and incorporates a new low-noise motor, while a smart-connector cable simplifies installation and ongoing maintenance. Fast Target Tracking™ — drawn from Furuno's commercial FAR3000 radar — displays target course and speed vectors instantly at the press of a button, supporting greater situational awareness. Note: this listing is for the processor unit only; antenna and signal/power cable are sold separately.

Specifications:

• Power output: 12kW
• Maximum detection range: 96 nautical miles
• Minimum detection range: 20 m
• Enhanced target detection at both short and long range
• Fast Target Tracking™ function (adopted from Furuno commercial radar FAR3000)
• Bird Mode included
• Pedestal unit is 20% lighter than previous model
• Updated low-noise motor in pedestal unit
• No PSU required, reducing total system cost
• Smart-connector cable for easy installation without opening the pedestal unit
• Compatible with antenna sizes: 3.5 ft, 4 ft, or 6 ft (sold separately)
• Requires signal/power cable (sold separately)
• Compatible with NavNet TZtouch and NavNet TZtouch2
• Not compatible with NavNet 3D or earlier NavNet models
• 24V system; a converter is required for use with 12V power systems
• Listing includes processor unit only — antenna and cable not included
