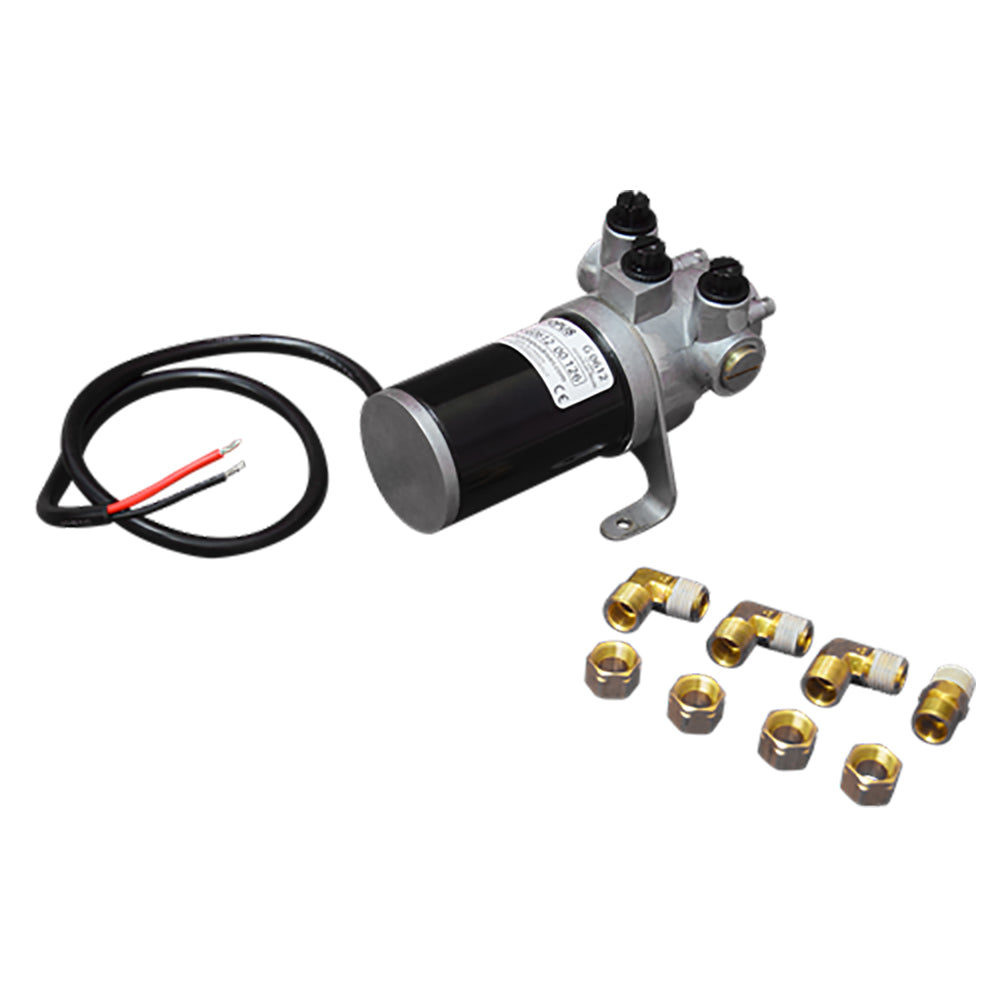

The Furuno PUMPOCT16-12 is a 12V Octopus hydraulic pump engineered for autopilot systems on hydraulically steered vessels. Running at 1,600 CC/min with a 1.6 cubic inch per second displacement rate, it pairs with RAM cylinders ranging from 12 to 23 cubic inches in volume. Its compact gear pump design reduces installation constraints, while low noise and vibration output make it well suited for sailboat applications. High efficiency at elevated flow rates allows pairing with smaller autopilot course computers than comparable drive units would require.

Specifications:

• Voltage: 12V
• Flow rate: 1,600 CC/min
• Displacement: 1.6 cubic inches per second
• Compatible RAM cylinder volume: 12–23 cubic inches
• Displacement range: 15.1 to 24 cubic inches
• Compact gear pump design for flexible installation
• Industry-leading efficiency with reduced power consumption, especially at higher flow rates
• Increased efficiency allows use with smaller autopilot course computers than equivalent drive units
• Lower noise and vibration — well suited for sailboat installations
• Compatible with balanced and unbalanced cylinders
• Professional hydraulic steering autopilot solution

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
