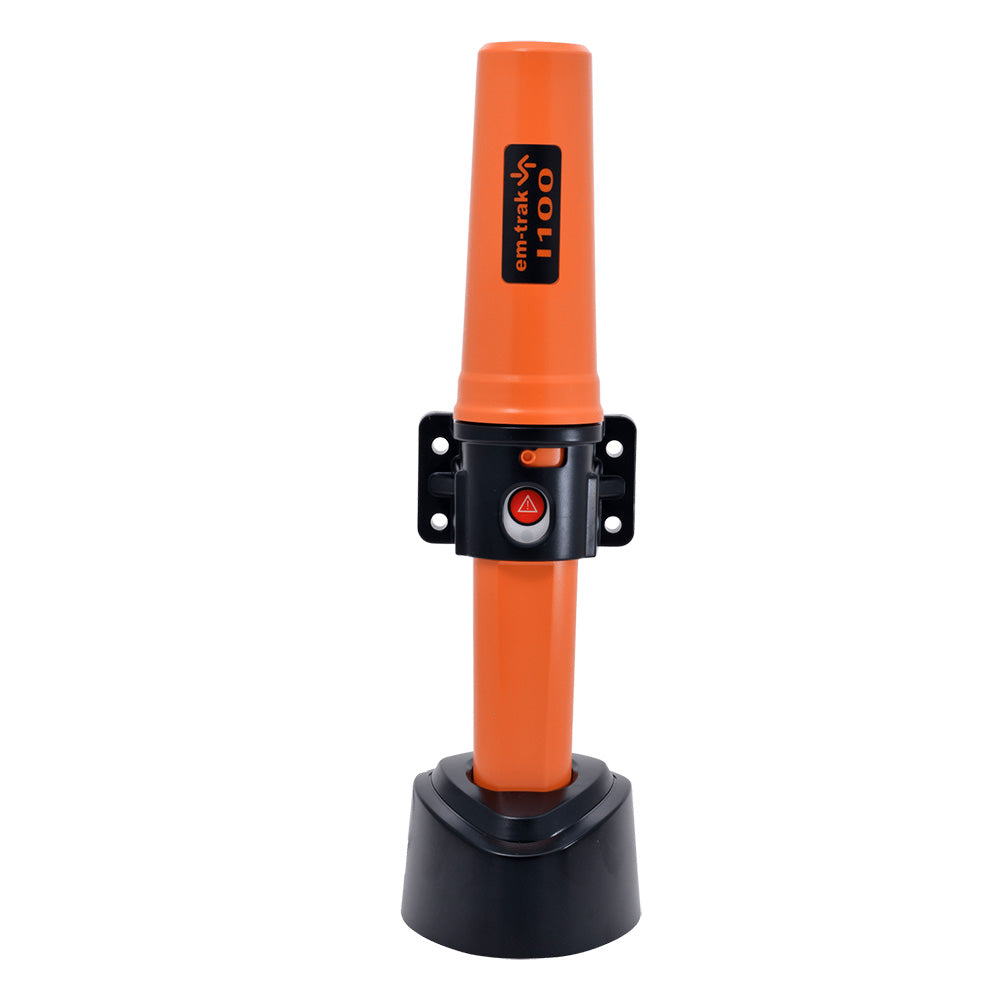

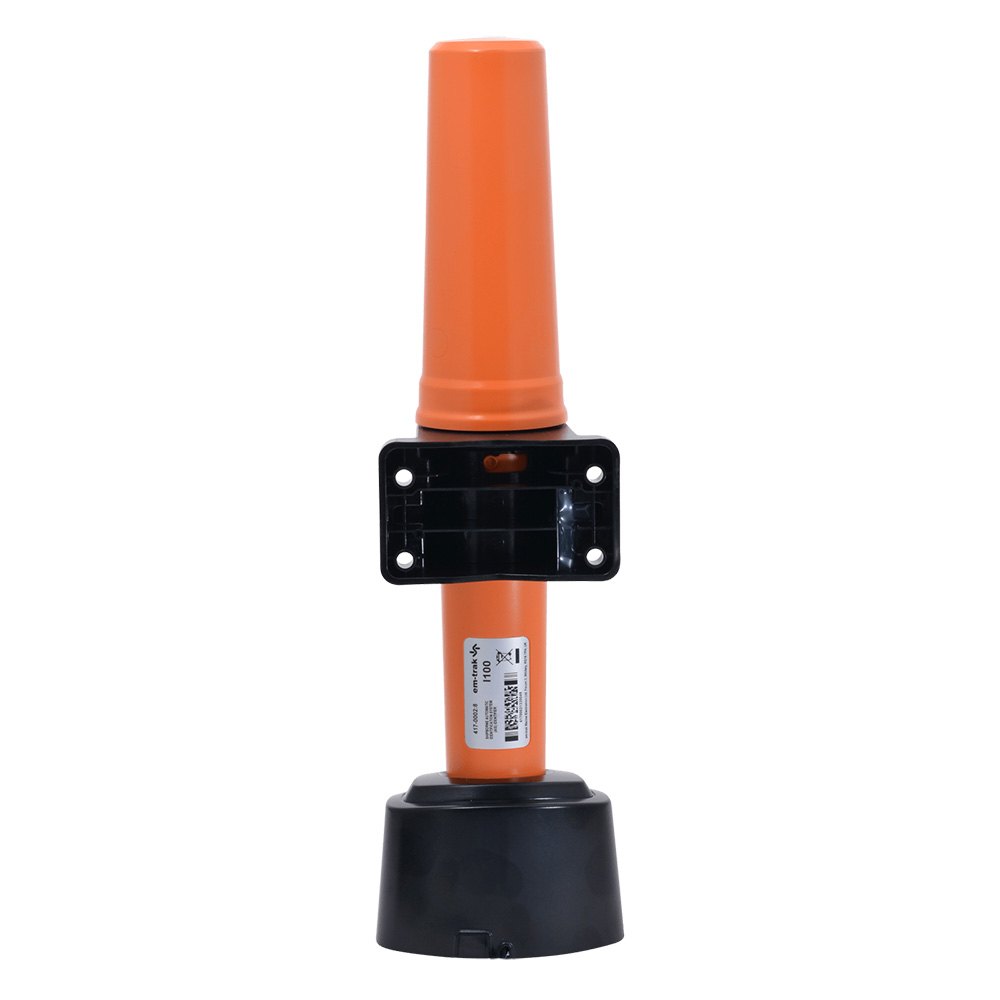

<p><strong>I100-X Small Vessel Tracker</strong></p><p id="isPasted">**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.**</p><p><a href="https://productimageserver.com/banners/ClassB.pdf">Click here to download form.</a></p><p>The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.</p><p>I100-X can power itself using its own internal rapid recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source such as an engine, battery, or solar, with the battery then acting as a backup.</p><p>I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.</p><p>Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.</p><p><strong>Features:</strong></p><ul><li>Certified AIS Class B Transponder</li><li>5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation</li><li>It takes only 5 hours to completely recharge</li><li>Rugged IPX8 design ensures the operational performance</li></ul><p><strong>Physical & Environmental Specifications:</strong></p><ul><li>Size (H x W): 370 x 67 mm</li><li>Weight: 355g</li><li>Operating temperature: -25°C to +55°C</li><li>Storage temperature: -25°C to +70°C</li><li>Ingress protection: IPx8 (1.1m 30 mins)</li></ul><p><strong>Electrical Specifications:</strong></p><ul><li>Battery Capacity: 2300mAh</li><li>Battery Type: 3.7V Li-Ion rechargeable</li><li>Battery Life (default operating conditions): 120 hours</li></ul><p><strong>Standards Compliance:</strong></p><ul><li>AIS Standards: IEC 62287-1 Ed. 3.  ITU-R M.1371.5</li><li>Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013</li><li>Environmental Standards: IEC 60945 Ed. 4</li><li>GNSS Performance Standards: IEC 61108-1 Ed 2.0</li></ul><p><strong>GNSS:</strong></p><ul><li>Systems Supported: GPS & GLONASS</li><li>Channels: 72</li><li>Time to First Fix from Cold Start: 26s</li></ul><p><strong>VHF Transceiver:</strong></p><ul><li>VDL Access Scheme: CSTDMA</li><li>Operating Frequency: 156.025MHz – 162.025MHz</li><li>Channel Bandwidth: 25kHz</li><li>Receivers / Transmitters: 1 x transmitter</li><li>AIS Transmitter Power: 2W (33dBm radiated)</li></ul><p><strong>User Interface:</strong></p><ul><li>Buttons: SOS</li><li>Indicators: Status indicator</li></ul><p><strong>Charging Dock:</strong></p><ul><li>Size (H x W x D): 110mm x 120mm x 78mm</li><li>Weight: 360g</li><li>Power Supply: 115V / 240V AC</li></ul><p><strong>Configuration Dock:</strong></p><ul><li>Size (H x W x D): 110mm x 120mm x 78mm</li><li>Weight: 360g</li><li>Power Supply: 115V / 240V AC</li><li>PC Interface: USB (cable supplied)</li></ul><p><strong>In the Box:</strong></p><ul><li>1 x Identifier</li><li>1 x Vessel Bracket and a Fixings Pack</li><li>1 x Charging Dock</li></ul><p>*NOTE: You will also require a configuration dock product code: 417-0047. This is used to program the unit before deployment.</p><strong>This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.</strong> <!--- cis2:m2lumJ1t --->
