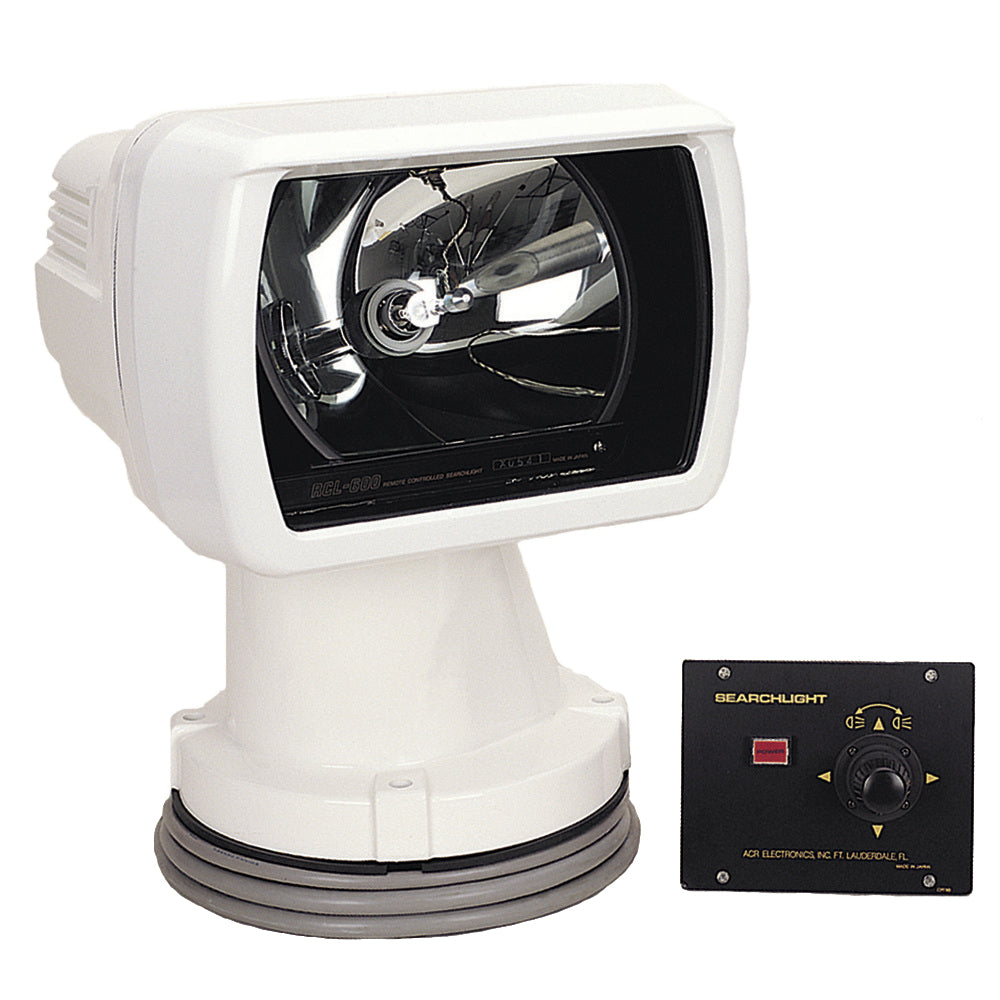

ACR RCL-600A Searchlight w/Joystick Panel - 24V

The ACR RCL-600A Searchlight produces 6,000,000 candela of light output through a 150-watt Xenon lamp and parabolic reflector, purpose-built for commercial vessels and large pleasure yachts. Marine-grade cast aluminum construction, continuous 360° rotation, and a self-contained remote joystick panel deliver dependable, precise illumination control in any weather — from narrow spot to broad flood.

Features:

• 150W Xenon lamp paired with a parabolic reflector delivers a hyper-intense 6,000,000 candela beam
• Internal elevation mechanism provides pitch control while keeping the drive components shielded from weather
• Continuous 360° rotation for full coverage around the vessel
• Auto-return function restores the light to a pre-programmed position
• Supports up to two independent control stations
• Adjustable focus switches the beam between narrow spot and wide flood patterns
• Nylon shoulder washers isolate the base plate to prevent galvanic corrosion between dissimilar metals
• Weatherproof enclosure engineered for long-term reliability in harsh marine environments

Specifications:

• Color: White
• Material: Marine-grade cast aluminum, tempered glass
• Operation: Remote joystick control
• Voltage Input: 24 VDC
• Lamp: 150W high-intensity Xenon
• Rotation: 360° continuous
• Tilt: 48°
• Light Pattern: Variable — adjustable from narrow spot to broad flood
• Beam Angle: 18° up, 30° down
• Dimensions (H x W x D): 17" x 14" x 15" (43.2 x 35.6 x 38.1 cm)
• Footprint Diameter: 11.5" (29.2 cm)
• Weight: 62 lb (28.1 kg)

In the Box:

• RCL-600A Searchlight (24V)
• Wired joystick panel with 6' cable
• Instruction manual

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)
• Product Video
