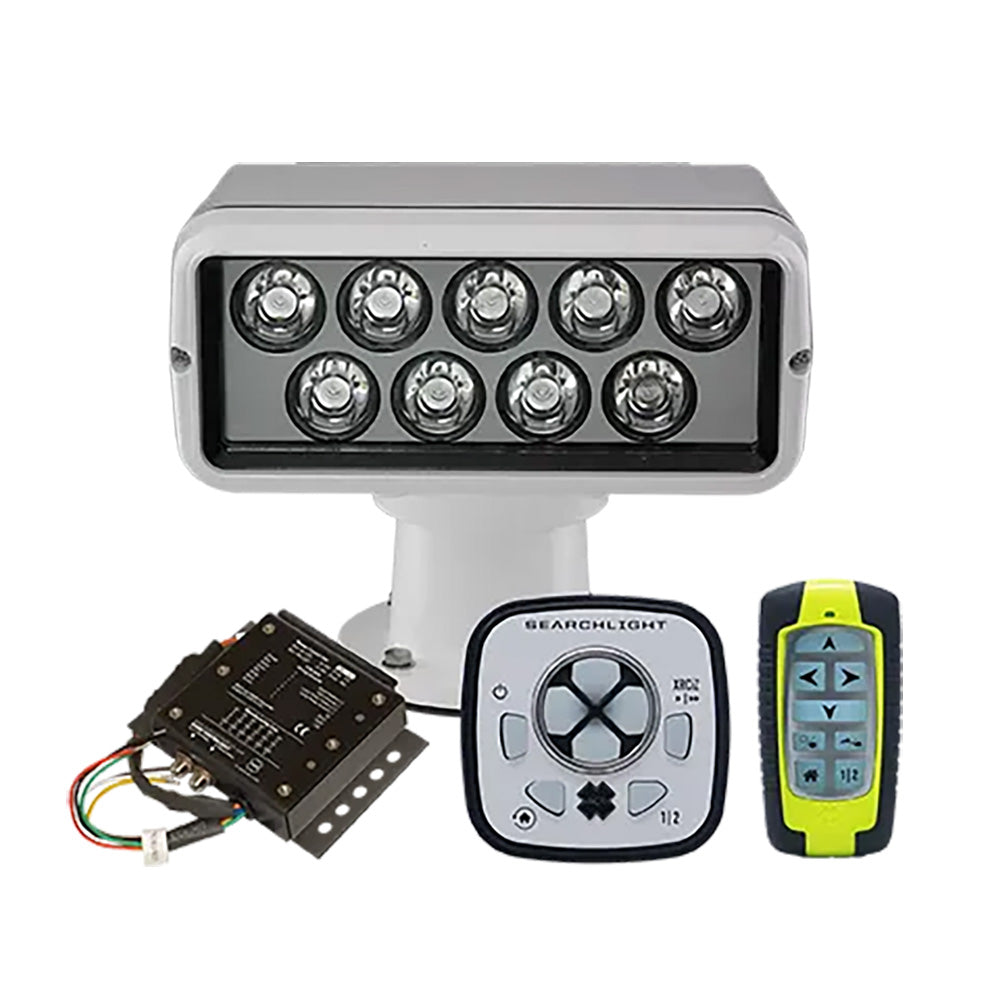

The ACR RCL-100 LED Searchlight Kit combines a 9-LED, 220,000 peak candela array with three distinct control interfaces — the URP-103 Wired Point Pad, URC-104 Master Controller, and URH-103 Wireless Handheld Remote — making it a complete solution for sport yachts, mega-yachts, sport fishers, and light commercial vessels. The 518 die-cast aluminum housing is triple-primed and UV-stabilized for sustained marine exposure, while an enclosed internal elevation mechanism keeps pitch control precise and shielded from the elements. ACR's proprietary XRCiZ™ technology automatically rotates the light assembly every 30 days from activation to guard against bearing corrosion and confirm electrical contact integrity. The URP-103 Point Pad integrates cleanly into modern dashboards, the behind-dash URC-104 Master Controller serves as the central hub for both wired and wireless operation, and the URH-103 Handheld Wireless Remote delivers ergonomic cordless command with backlit buttons from anywhere aboard.

Specifications:

• Color: White
• Material: 518 die-cast aluminum
• Operation: Dash-mount Point Pad™
• Voltage Input: 12/24 VDC
• Peak Candela: 220,000
• LED Array: 9 LEDs
• LED Operating Hours: 40,000+
• Rotation: 360° continuous
• Light Pattern: Spot
• Light Distance: 4,501 ft (1,372 m)
• Compatible with up to three remote Point Pad™ units
• XRCiZ™ auto-rotation interval: every 30 days from activation
• Dimensions (H x W x D): 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
• Footprint Diameter: 4.75" (12.7 cm)
• Weight: 7.2 lb (3.2 kg)
