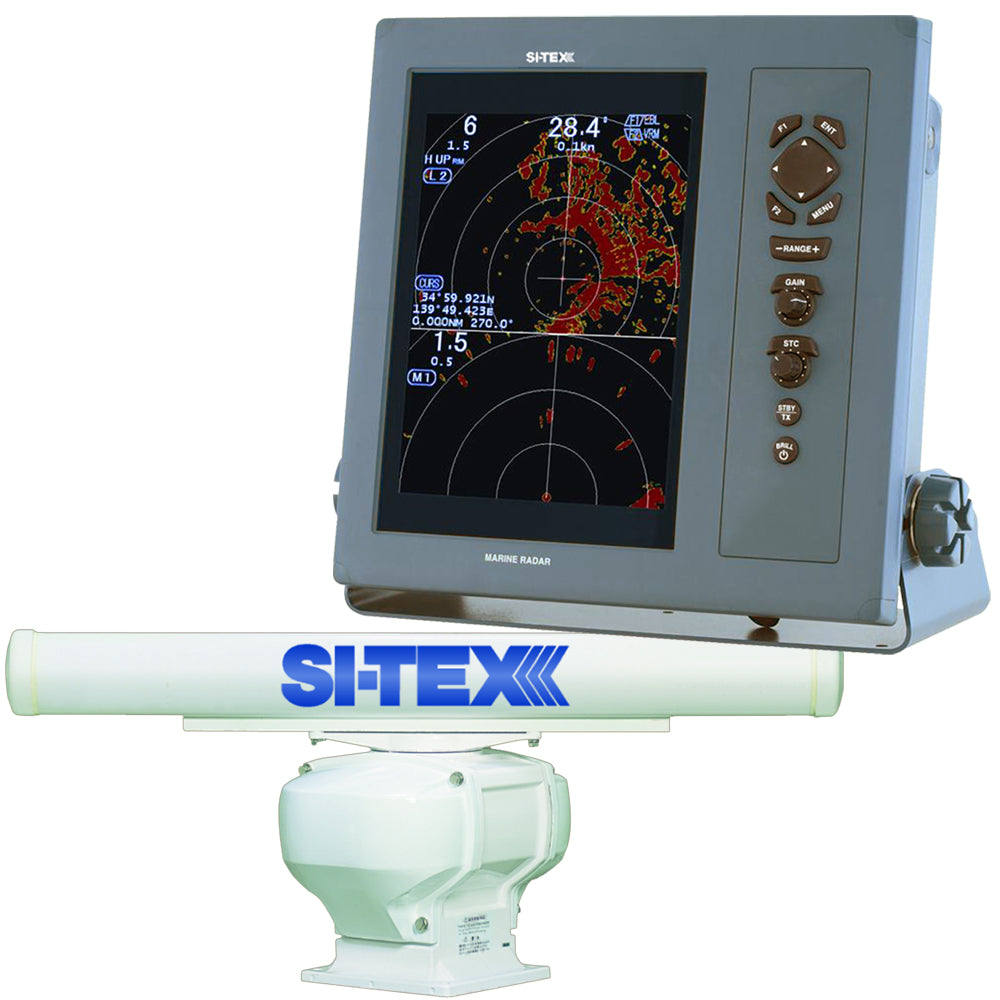

The SI-TEX Professional Dual Range Radar delivers 12kW of transmit power paired with a 6-foot open array antenna and a 10.4-inch color TFT LCD display — a capable combination for commercial vessels and larger recreational boats that demand reliable target detection at range. Dual-speed antenna rotation reaches 48 rpm for high-speed or river transits, while simultaneous split-screen display keeps both long- and short-range targets visible at once. A built-in AIS interface module tracks up to 200 targets, and an optional Automatic Tracking Aid expands active target management further.

Specifications:

• Transmit power: 12kW
• Antenna: 6-foot open array
• Display: 10.4-inch color TFT LCD
• Dual-speed antenna rotation with 48 rpm capability for high-speed and river operations
• Split-screen display shows long-range and short-range targets simultaneously
• True-Trail Function for identification of moving targets
• Interference Rejection, Target Expansion, Parallel Index, and True/Relative Bearing features included
• Standard AIS Interface module capable of tracking up to 200 targets
• Optional 50-target Automatic Tracking Aid (ATA) available
