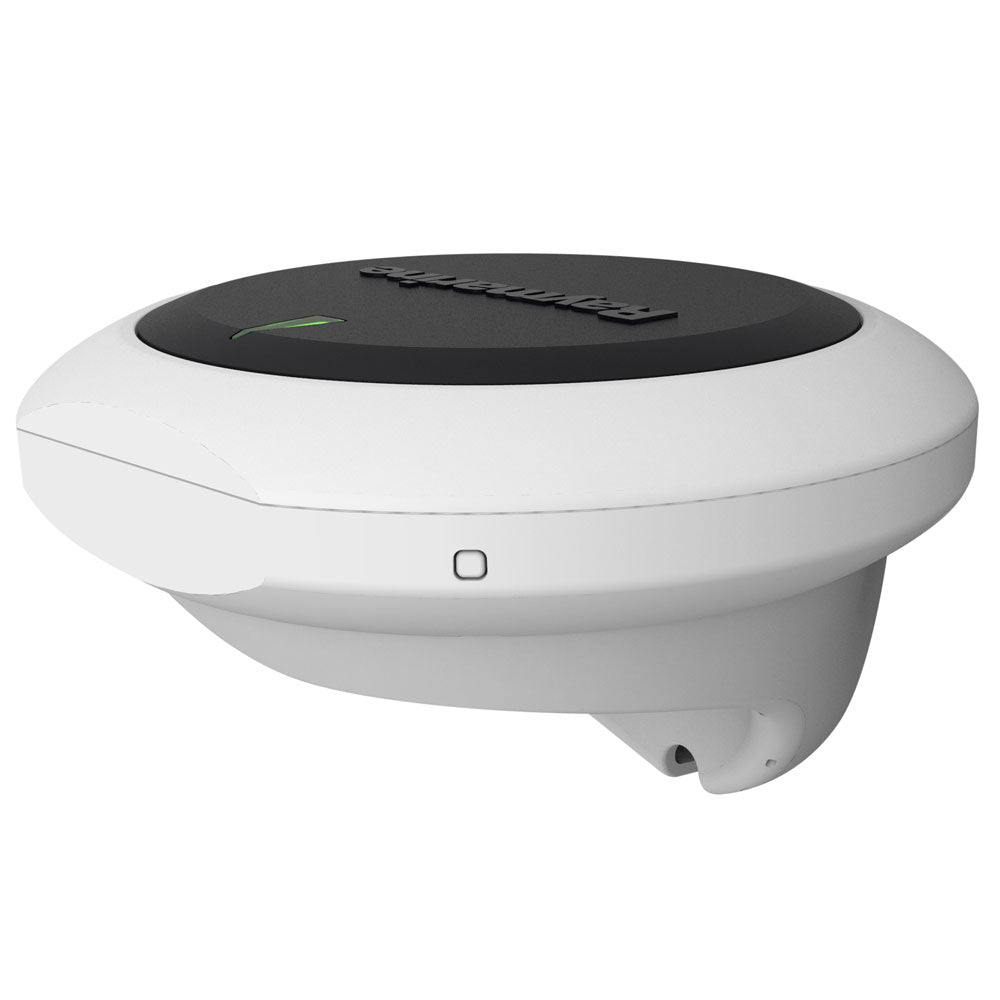

The Raymarine EV-1 Sensor Core sits at the heart of every Evolution autopilot system, integrating a 9-axis motion sensor with the Evolution autopilot processor into a single compact housing. Designed for Evolution mechanical and hydraulic autopilot systems, it tracks heading, pitch, roll, and yaw across all three dimensions, allowing the autopilot to respond immediately as sea conditions shift. SeaTalk^ng networking provides a single-cable connection for both power and data to the Evolution ACU and extended SeaTalk^ng and NMEA 2000 networks. The rugged, fully sealed enclosure meets IPX6 and IPX7 waterproofing standards and can be mounted above or below deck.

Specifications:

• 9-axis sensor monitors vessel motion in all three dimensions
• Combines advanced solid-state sensors with the Evolution autopilot processor in one housing
• Precision monitoring of heading, pitch, roll, and yaw
• Dynamic heading accuracy to within 2° in all conditions
• Auto-compensation for onboard magnetic fields
• Reliable heading accuracy in northern and southern extremes
• Compatible with Evolution mechanical and hydraulic autopilot systems
• SeaTalk^ng connectivity for single-cable power and data to the ACU
• Compatible with extended SeaTalk^ng and NMEA 2000 networks
• Supplies heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
• Flexible installation: mount above or below deck
• Fully sealed enclosure rated to IPX6 and IPX7 waterproofing and submersion standards

Resources:

• Installation Guide (PDF)
• Product Brochure (PDF)
