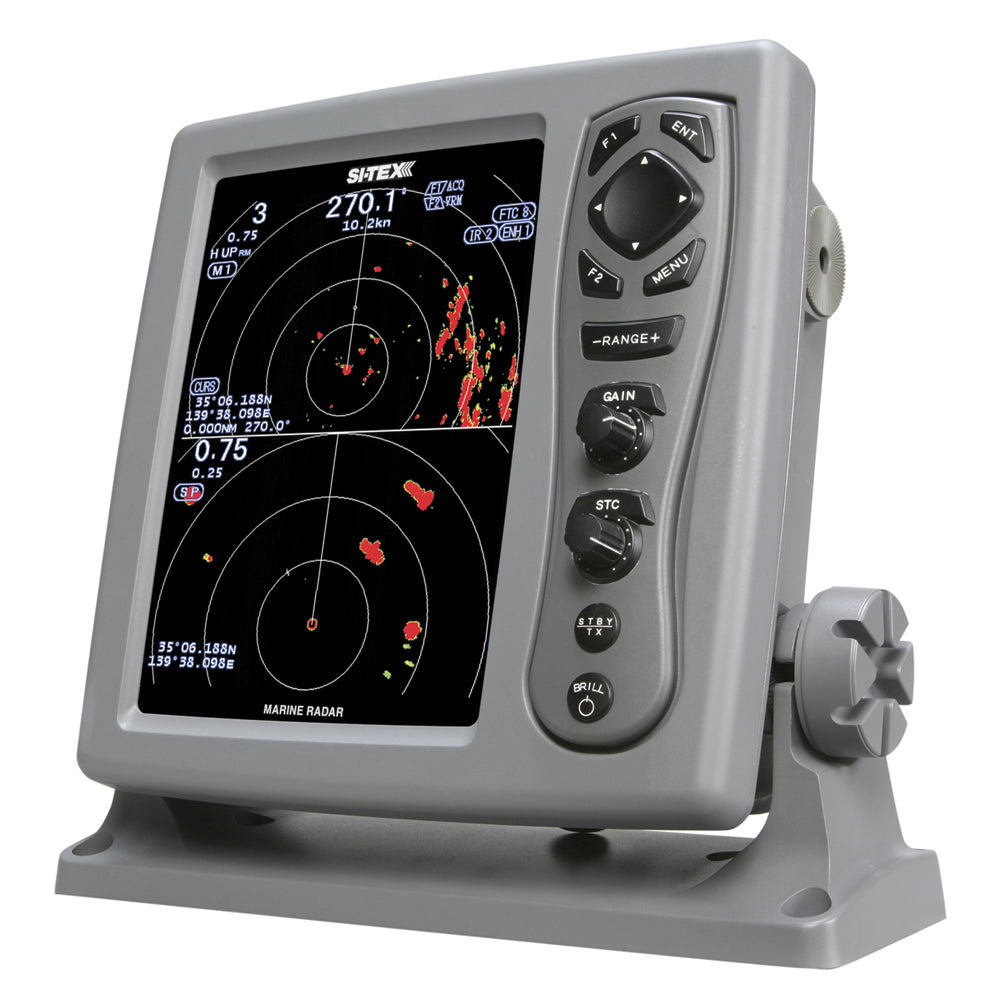

The SI-TEX T-940-3 brings Hyper-Digital Processing™ (HDP) Technology to an 8.4" daylight-viewable color LCD, delivering real-time target presentation and superior discrimination of smaller or closely spaced contacts. With a 4kW open array antenna, dual-speed rotation, and a waterproof IPX5-rated housing, this radar is built for serious offshore and coastal navigation.

Features:

• Hyper-Digital Processing™ (HDP) Technology virtually eliminates unwanted noise, producing a cleaner image and improving detection of smaller targets
• 8.4" TFT color LCD with 480 x 640-pixel resolution, anti-reflective glare coating, and true-color echo display — echo color varies by signal strength
• 3.5' open array antenna with 4kW peak output and a range from 1/16 NM up to 48 NM
• Dual-speed antenna rotation: 48 RPM or 24 RPM (24 RPM requires 24V DC input) for tracking fast-moving close-in targets
• Selectable range scales starting at 1/16 NM
• Warning Zone function alerts to targets entering or leaving a user-defined guard zone
• Automatic hands-off tuning maintains peak sensitivity continuously; manual override available for experienced operators
• RGB output supports connection of up to two optional external monitors
• Keypad with programmable function keys, comprehensive menus, and dedicated rotary knobs for instant Gain and STC control
• Built-in flush mounting system simplifies installation; IPX5-rated waterproof housing suitable for nearly any mounting location
• Dual Range Radar function provides a split-screen view of long- and short-range targets simultaneously
• True Trail function differentiates moving vessels from stationary objects — moving targets display trail tails while land and buoys appear stationary even when your vessel is underway
• CCD camera input enables split-screen Radar/Camera display for simultaneous vessel monitoring and situational awareness
• Optional ATA (Automatic Tracking Aid) tracks up to 50 user-designated targets, displaying distance, speed, bearing, course, and closest point of approach for each
• Optional AIS interface displays data on up to 100 AIS targets, including MMSI number, vessel name, course, and speed — useful for traffic monitoring and collision avoidance
• 12V or 24V DC operation, 70-watt power consumption

Specifications:

• Display: 8.4" TFT Color LCD
• Resolution: 480 x 640 pixels
• Scanner: 3-1/2" Open Array
• Peak Power Output: 4kW
• Output Frequency: 9410 ± 30 MHz
• Horizontal Beam Width: 2.5°
• Vertical Beam Width: 22°
• Antenna Rotation: 24 or 48 RPM (48 RPM at 24V DC or higher)
• Pulse Width: 0.08, 0.15, 0.3, 0.5, 1 µs
• IF Frequency: 60 MHz
• Range Accuracy: Better than 8 m
• Minimum Detecting Distance: Within 25 m
• Range Scales: 1/16 NM to 48 NM
• Power Input: 12V / 24V DC
• Power Consumption: 70 Watts
• Waterproof Rating: IPX5

In the Box:

• Display Unit MRD-103 with hardcover
• Connecting Cable 242J158055A — 10 m with 2 connectors
• DC Power Cable CW265-2M (2 m)
• CCD Camera Cable CW-405-0.3M
• Operation Manual and Quick Reference Guide
• Fuse (8A)
