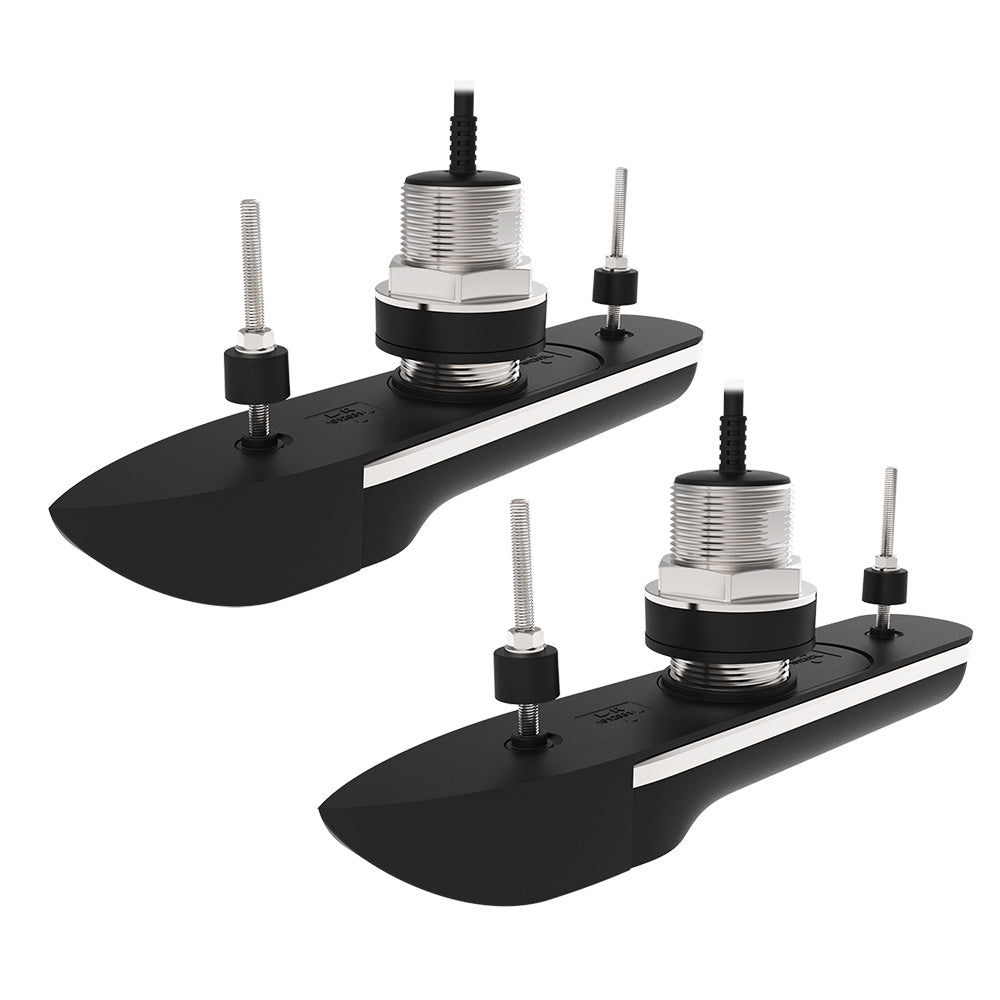

The Raymarine RVM-412 is a port and starboard stainless steel thru-hull transducer pair built for hulls with 5° to 15° of deadrise. Each element is tilted at 12° so beam patterns stay correctly aligned without fairings, eliminating the drag and turbulence that fairing-blocked installations introduce. The RVM-400 series delivers DownVision, SideVision, 600-Watt High CHIRP, and 3D sonar capability in a single platform. A built-in AHRS automatically stabilizes 3D sonar imagery against vessel motion, while a fast-response water temperature sensor provides quick, accurate readings. Compatible with Axiom 2 Pro RVM series and the RVM1600 Sounder Module.

Specifications:

• Sonar modes: DownVision, SideVision, 600-Watt High CHIRP, 3D sonar
• Built-in AHRS for automatic 3D sonar image stabilization and vessel motion compensation
• Built-in fast-response water temperature sensor
• High-performance Down and SideVision ceramics
• 600-Watt traditional CHIRP
• High-speed housing with isolation plate
• Port and starboard thru-hull pair; accommodates hull deadrise between 5° and 15°
• Each transducer element tilted at 12° to compensate for hull deadrise
• Tilted elements eliminate need for fairings, reducing drag and turbulence
• Includes Y-Cable harness to internally join the two transducers and an 8-meter transducer extension cable
• Cable length: 10M
• Housing material: stainless steel
• Compatible with: Axiom 2 Pro RVM series, RVM1600 Sounder Module
