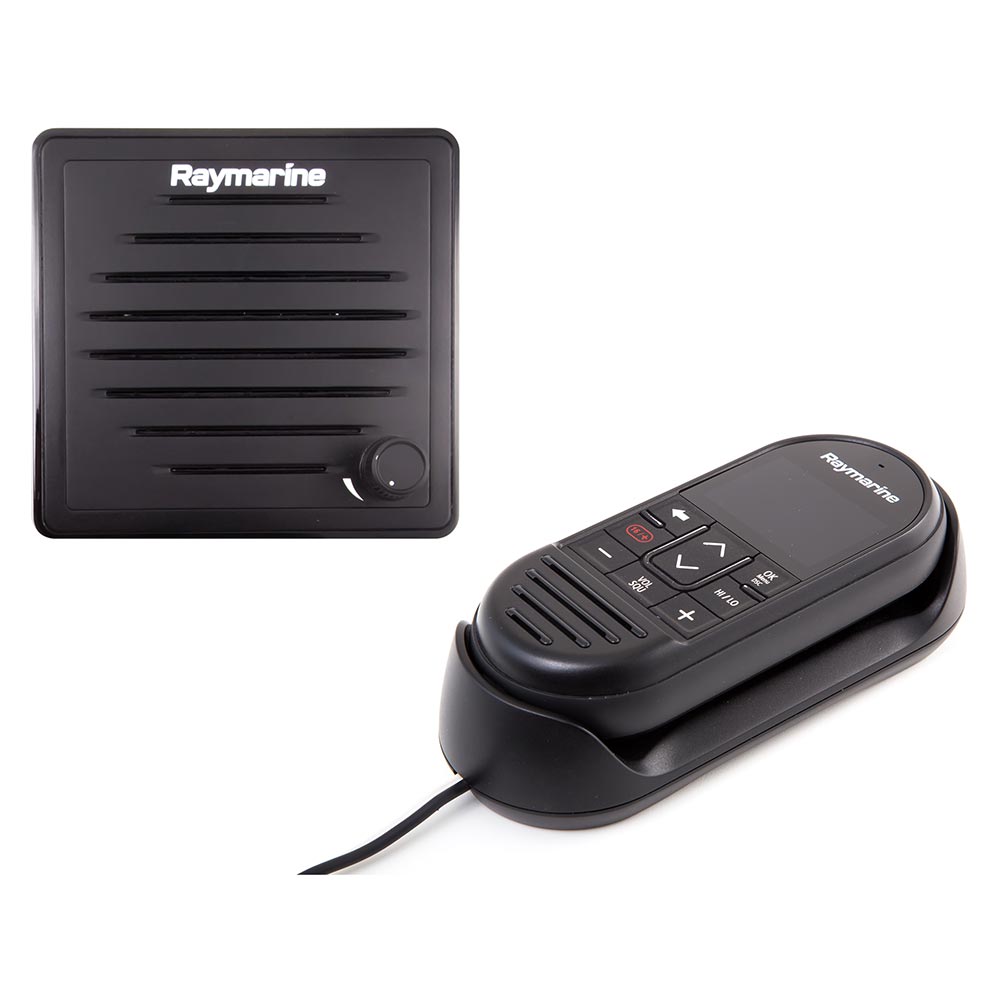

The Raymarine Ray90 Wireless Second Station Kit expands an existing Ray90 modular VHF system with an active speaker and wireless handset, delivering full radio control at a second helm position. The Ray90 black-box architecture keeps the transceiver out of sight while the RayMic handset and remote speaker provide crystal-clear audio and complete operational access. Note: a wireless hub (A80540) is required and sold separately. See MFG Part Number T70433 to purchase the mic and hub together.

Specifications:

• Black-box, multi-station capable VHF radio design
• Expandable to 2 handsets total
• 25-watt transmitter with commercial-grade electronics
• Built-in loudhailer with 30-watt audio output and 2-way talkback
• Built-in fog signal generator for power and sailing vessels underway and at anchor
• Class D Digital Selective Calling (DSC) with integrated GPS
• MMSI number input for DSC safety and calling features
• Position tracking for up to 5 nearby DSC-equipped vessels
• Automatic position sharing with Raymarine MFD
• ATIS system support on navigable inland waterways (Europe)
• Channel scanning, dual-watch, tri-watch, and weather alert standard
• Optional external GPS supported; GA150 passive GPS antenna required for GPS operation
• Transceiver unit cast in solid aluminum for shock/vibration resistance and heat dissipation
• RayMic handsets feature super-bright backlighting and oversized keys
• NMEA 2000 and NMEA 0183 networking
• Optional hailing horn compatible

Resources:

• Installation Guide (PDF)
