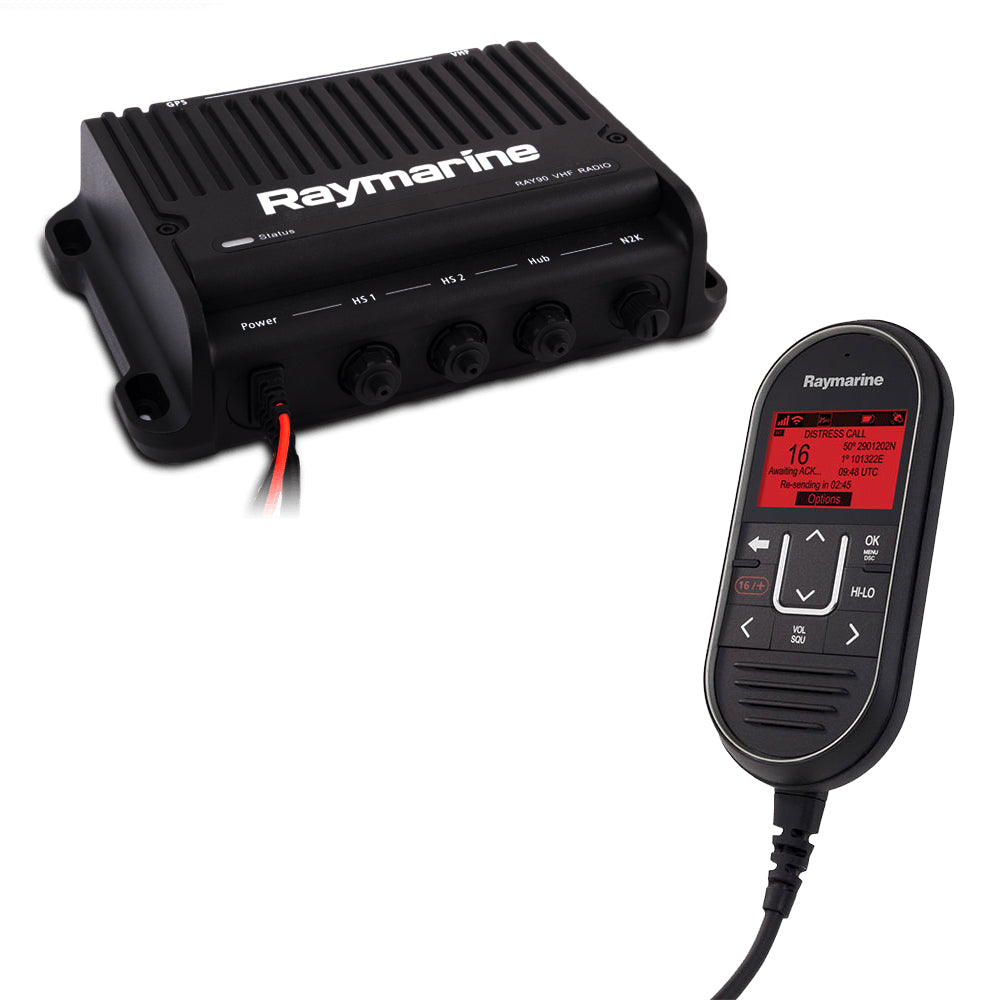

The Raymarine Ray90 puts the transceiver out of sight while the included RayMic wired handset and passive speaker deliver full radio control with clear, powerful audio. Built on commercial-grade electronics with a 25-watt transmitter, this black-box VHF supports multi-station operation, Class D DSC with integrated GPS, position tracking for up to five nearby vessels, and a 30-watt loudhailer with automatic fog signal generation — making it a capable communications hub for vessels of any size.

Specifications:

• Black-box design — transceiver mounts out of sight
• 25-watt transmitter with commercial-grade electronics
• Includes RayMic wired handset and passive speaker kit
• Expandable to 2 RayMic wired handsets
• Class D Digital Selective Calling (DSC) with integrated GPS
• Position tracking for up to 5 nearby DSC-equipped vessels; positions shared automatically with Raymarine MFD
• Channel scanning, dual-watch, tri-watch, and weather alert standard
• Built-in loudhailer with 30-watt audio output and 2-way talkback
• Automatic fog signal generator for power vessels, sailing vessels underway, and vessels at anchor
• Optional external GPS via GA150 passive GPS antenna (required for GPS operation)
• Optional active remote speaker available for high-noise environments
• NMEA 2000 and NMEA 0183 network compatible
• Transceiver housing cast in solid aluminum for shock/vibration resistance and heat dissipation
• RayMic handset features super-bright backlighting and oversized keys
• Supports ATIS system on navigable inland waterways (Europe)

Resources:

• Installation Guide (PDF)
