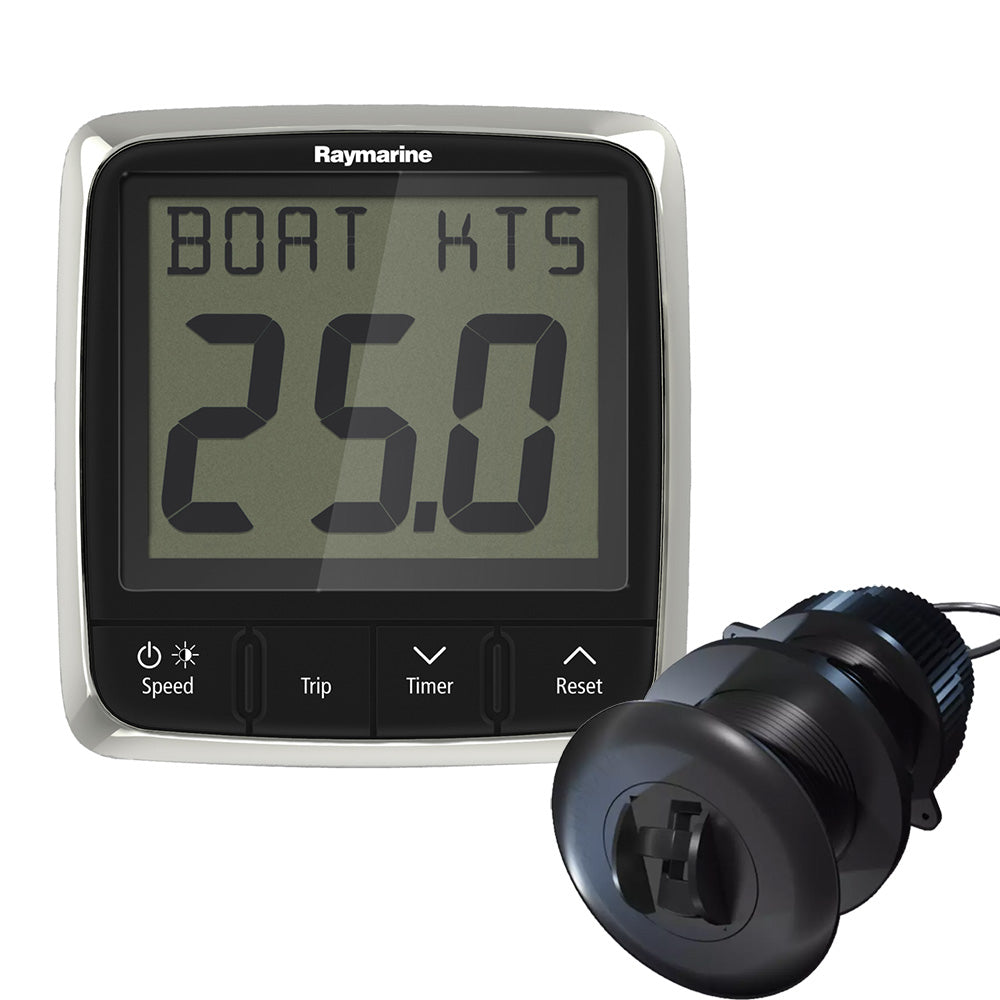

The Raymarine i50 Speed Package pairs the compact i50 Speed instrument display with the ST900/P120 thru-hull transducer, delivering speed-through-water, speed-over-ground, trip and log data, and water temperature in a single clean package. Oversized digits and a sharp LCD panel keep readings legible in bright sun or at night with red backlighting. Equally at home on RIBs, powerboats, and small yachts, the i50 integrates directly with Raymarine autopilots and navigation equipment via SeaTalkng, NMEA 2000, or legacy SeaTalk networks — operating as either a Master display hosting its own transducer or a Repeater pulling data from elsewhere on the network.

Features:

• Oversized digits readable in daylight or darkness
• Red backlighting for improved night-time visibility
• SeaTalkng, NMEA 2000, and SeaTalk network compatible
• Built-in speed and temperature transducer interface
• Compact footprint with low power draw
• Surface mount as standard; optional trunnion mount kit available

Specifications:

• Dimensions: 110 mm W x 115 mm H x 44 mm D (4.22 in x 4.52 in x 1.7 in)
• Connections: 2 x SeaTalkng (SeaTalk compliant) plus transducer connections
• Relative Humidity: 93% maximum
• Waterproof Rating: IPX6
• Storage Temperature: -30 °C to +70 °C (-22 °F to 158 °F)
• Operating Temperature: -20 °C to +55 °C (-13 °F to 131 °F)
• Current Draw: 45–65 mA typical / 200 mA maximum (with transducer connected)
• Nominal Supply Voltage: 12V DC
• Operating Voltage Range: 10V DC to 16V DC
• Power Consumption: less than 1 W typical (display only); 2.4 W maximum (transducer connected)
• LEN (NMEA 2000 Load Equivalency Number): 4

In the Box:

• i50 instrument display
• Suncover (compatible with i70s, p70s, p70Rs, eS Series)
• Front bezel (compatible with i70s, p70s, p70Rs, eS Series)
• Gasket
• Suncover (compatible with a, c, e Series)
• Front bezel (compatible with a, c, e Series)
• 400 mm (15.7 in) SeaTalkng spur cable
• SeaTalkng blanking plug
• 4 x fixing screws
• Documentation
• ST900/P120 Speed/Temp thru-hull transducer
