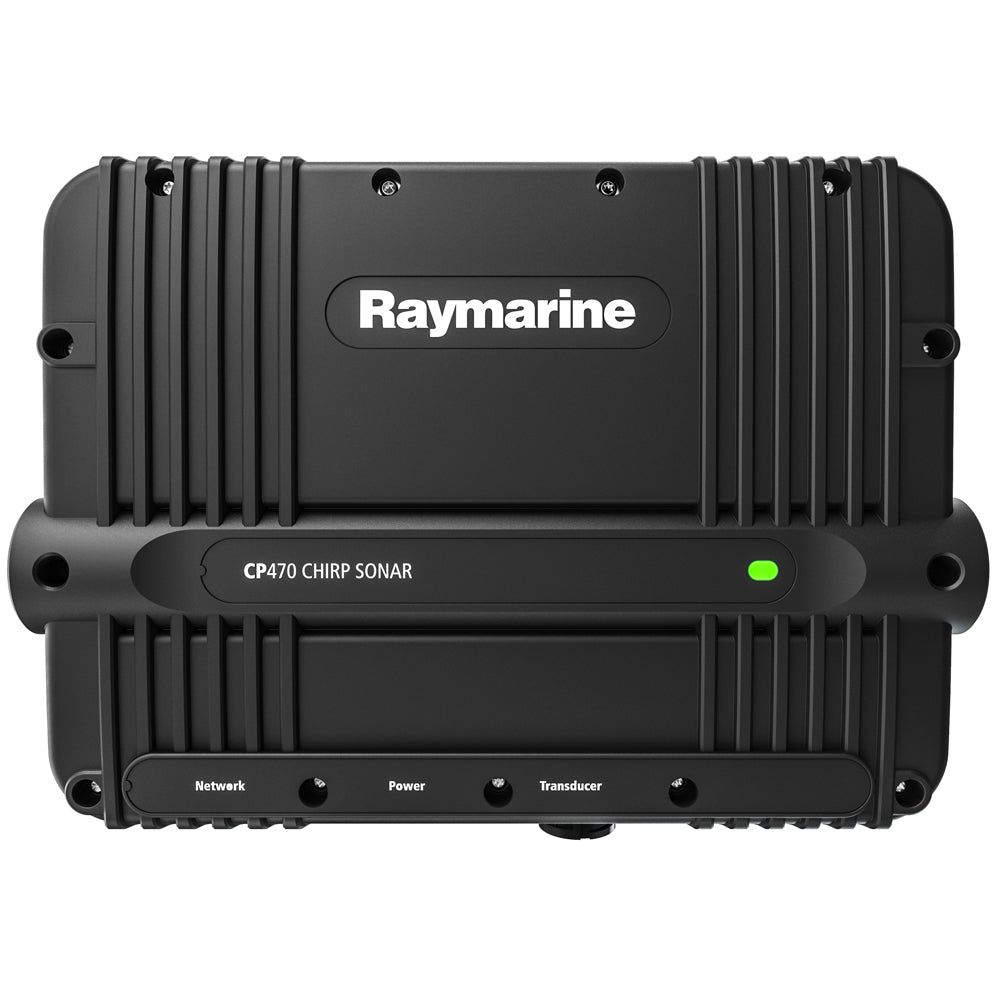

The Raymarine CP470 CHIRP Sonar Module delivers wide-spectrum CHIRP technology to Raymarine multifunction displays, giving offshore and coastal anglers high-resolution imagery, superior target separation, and reliable bottom tracking through tough conditions. Dual independent sonar channels cut through dense baitfish schools, reveal thermoclines, and isolate game fish targets down to 10,000 feet — all while intelligently filtering noise for a clean, accurate picture. TruZoom™ magnification lets you inspect targets in detail without sacrificing resolution, and automatic transducer identification via Airmar Xducer ID means setup is straightforward. The rugged IPX6-rated aluminum enclosure is built for offshore exposure.

Specifications:

• Sonar Type: Wide Spectrum CHIRP
• Sonar Channels: Dual independent CHIRP channels, 25–250 kHz
• Output Power: 1 kW or 2 kW (depending on transducer)
• Depth Range: 10,000 ft (3,000 m)
• TruZoom™ magnification mode for enhanced target detail without resolution loss
• Automatic transducer identification via Airmar Xducer ID
• Compatible with Airmar Wide Beam transducers
• Optional low, medium, and high CHIRP frequency transducers available in standard or wide-beam
• Waterproofing: IPX6-rated rugged aluminum enclosure
• Compatibility: aSeries | cSeries | eSeries | gS Series (LightHouse II powered MFDs)
• Nominal Supply Voltage: 12/24 V DC
• Power Consumption: 30.6 W (maximum)
• Connections: Power | RayNet network (10/100 Mb/s) | Transducer
