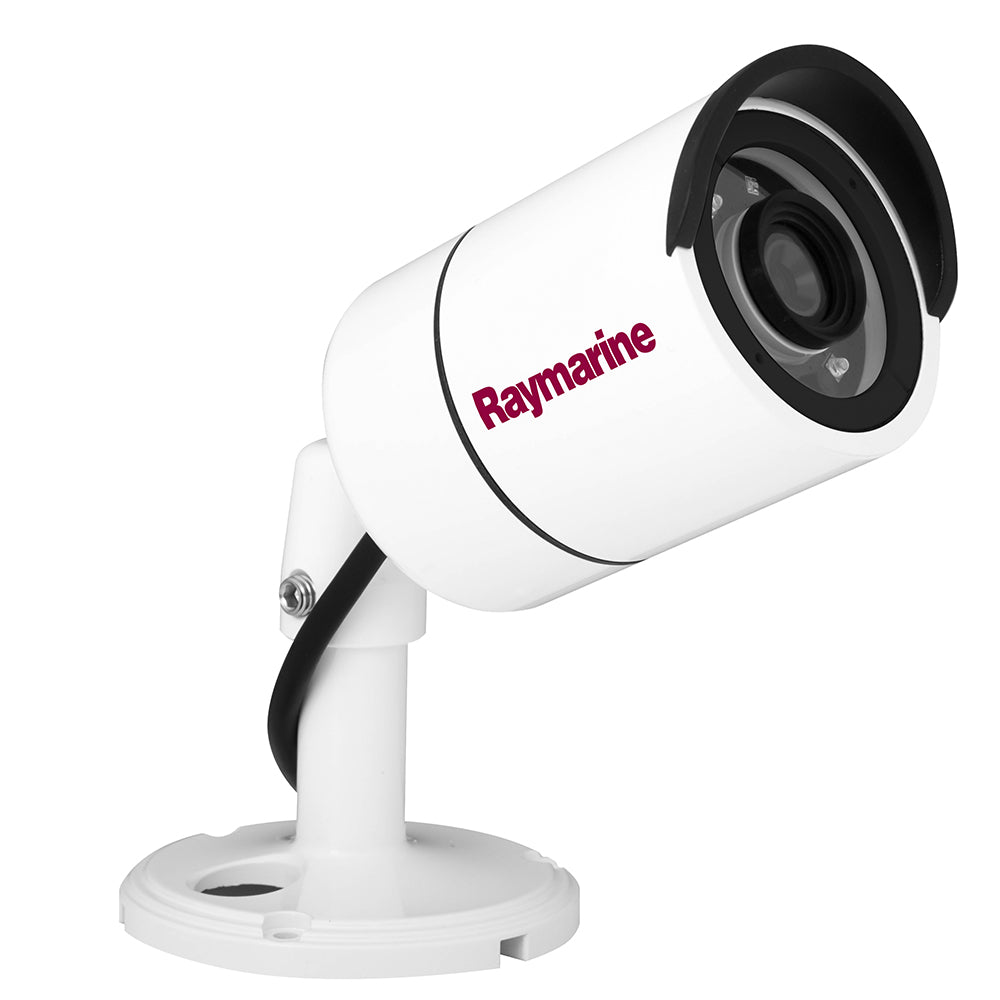

The Raymarine CAM210 is a ruggedized, HD day-and-night IP bullet camera built for above-deck marine use. A 2.0-megapixel Sony Exmor CMOS sensor pairs with high-brightness IR LEDs for clear footage in complete darkness, while Digital Defog processing cuts through fog, smog, and smoke to maintain image quality in poor conditions. The compact bullet housing includes an integrated sun cover, and plug-and-play compatibility with Raymarine MFDs running Lighthouse II makes installation straightforward. Power is supplied via PoE or direct 12V DC — no separate power run required.

Specifications:

• CPU: 32-bit ARM9 RISC, up to 432MHz
• Flash / SDRAM: 128MB / 128MB
• Image Sensor: 2.0 Megapixel 1/2.8" Sony Progressive Scan CMOS (Exmor)
• Total Pixels: 1952(H) x 1116(V) — 2.18 Megapixel
• Effective Pixels: 1944(H) x 1104(V) — 2.15 Megapixel
• S/N Ratio: Greater than 50dB
• Minimum Illumination: 0 Lux (IR on)
• IR Distance: 20m
• Day & Night: ICR
• Lens: 6.0mm Megapixel Board Lens
• Field of View: Diagonal 63.6° ±3° | Horizontal 53.3° ±3° | Vertical 33.1° ±3°
• Video Compression: H.264 High Profile@4.0; MJPEG image quality 3 steps
• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 up to 30fps at 1920x1080; MJPEG up to 30fps at VGA resolution
• Video Streaming: Multi-stream support with H.264 and MJPEG; adjustable frame rate; CVBR/CBR in H.264
• Pan / Tilt / Zoom: Digital pan, tilt, and zoom
• Image Settings: Day & Night, Auto White Balance, Auto Exposure, Privacy Mask, Effects (Color, Sharpness, Mirror/V-Flip)
• Security: Password protection, user access log, HTTPS encryption
• Supported Protocols: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
• Power Source: DC 12V/1.5A or PoE (802.3af)
• Power Consumption: Max 3.3W; Max 5.3W with IR active
• Net Weight: 900g
• LEDs: Power, Network Connection
• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including bracket
• Operating Temperature: 0° to 40°C (32°F to 104°F)
• Storage Temperature: -10° to 50°C (14°F to 122°F)
