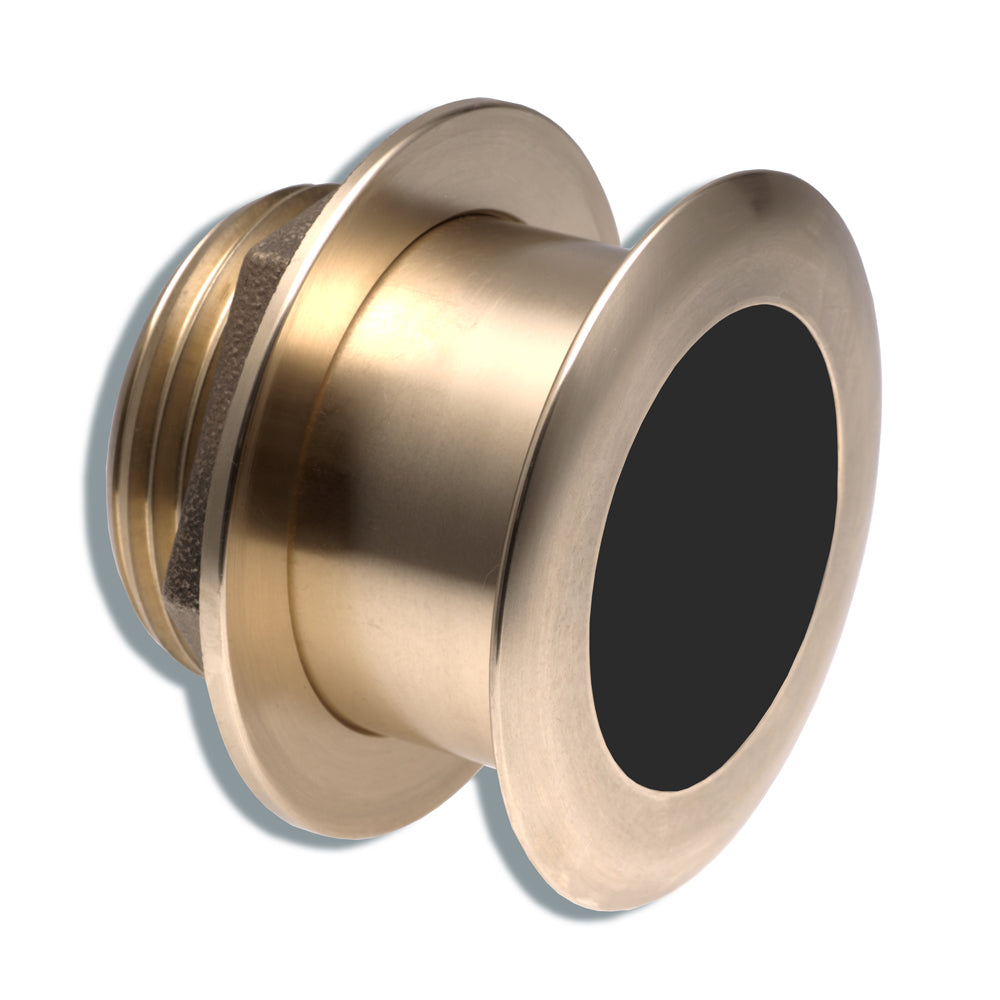

The Raymarine B175L is a bronze low-profile thru-hull transducer built for serious offshore fishing and deep-water bottom tracking. Its 20° tilted element design compensates for hull deadrise angles between 16° and 24°, keeping the beam perpendicular to the water for accurate returns. Paired with a CP450C or CP470 CHIRP Sonar Module, it delivers 1kW of power and a maximum depth capability of 2,500 feet — well suited to canyon fishing and deep-structure work common in Pacific Northwest and offshore blue-water environments.

Specifications:

• Material: Bronze
• Compatible With: CP450C or CP470 CHIRP Sonar Module
• Power (RMS): 1kW
• Maximum Depth: 2,500 ft
• Frequency Range: 40–60 kHz
• Beam Width (L/H): 32°–21°
• Records: Depth and Temperature
• Approved Hull Materials: Fiberglass, Wood
• Cable Length: 33 ft / 10 m
• Supported Deadrise / Transom Angles: 16°–24° deadrise
• Note: Using a single B175 or B75 transducer requires the A80328 Single Operation Cable (sold separately)
