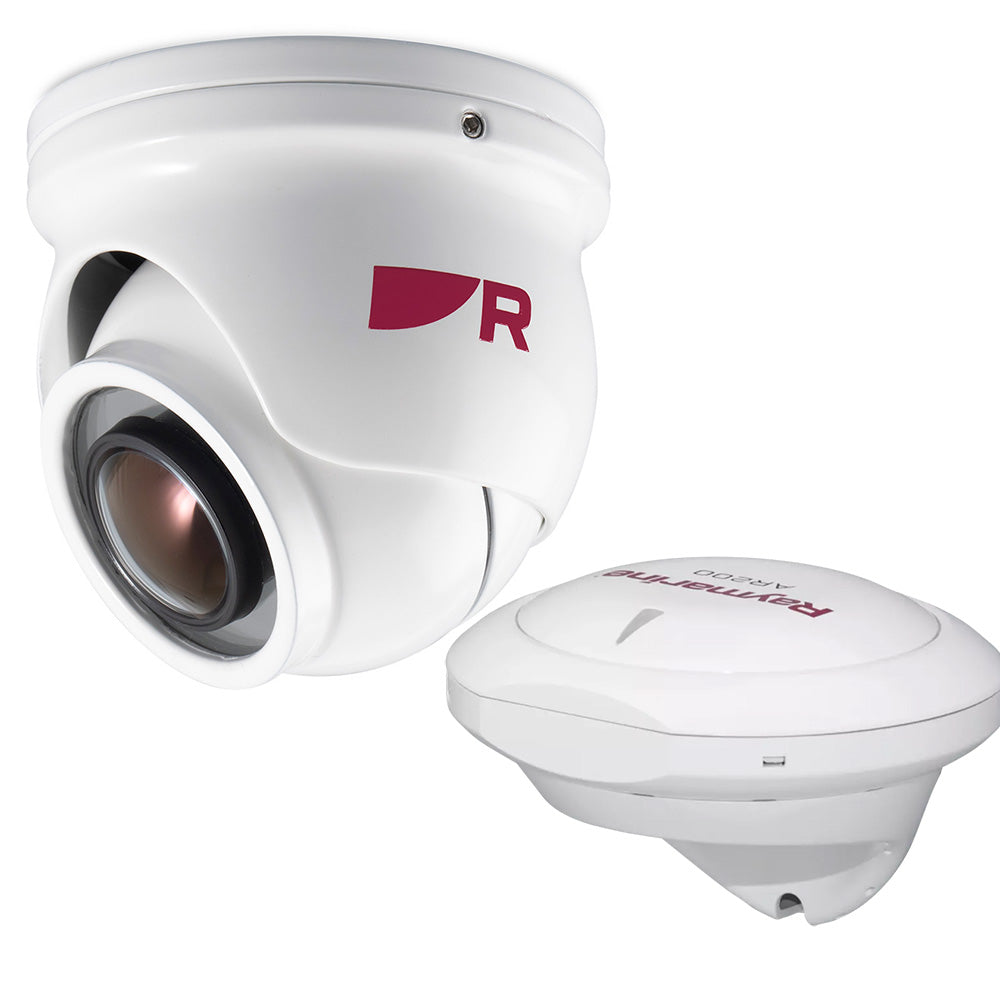

The Raymarine Augmented Reality Pack pairs the CAM300 HD mini camera with the AR200 sensor module to bring ClearCruise™ Augmented Reality to compatible Axiom® chartplotters. AIS targets, waypoints, and charted navigation aids are overlaid directly on live HD video, giving you a heads-up, real-world view of surrounding traffic, channel markers, and saved marks — even in hazy or low-light conditions. The bundle includes the CAM300 camera, AR200 sensor, SeaTalkNG T-piece, 1M cable, and a 10M RayNet cable.

CAM300 Camera

The CAM300 is a compact day/night IP camera built for Axiom chartplotters. Its 3MP CMOS sensor delivers up to 1080p HD video, while built-in infrared emitters provide near-field night visibility out to 33 ft (10 m). Up to four CAM300 streams can be viewed simultaneously on a single Axiom display. The full camera ball rotates within the housing for flexible aim, and image flip/invert functions support ball-up, ball-down, and reverse-video installations. Power the unit via a direct 12V connection or single-cable Power over Ethernet (PoE). The IP66-rated enclosure handles both above- and below-deck locations, and ONVIF Profile S compatibility allows integration with third-party security systems.

AR200 Sensor Module

The AR200 combines a GNSS receiver with an Attitude and Heading Reference System (AHRS) to supply Axiom chartplotters with GPS position, compass heading, pitch, and roll data. Its video stabilization capability is what enables ClearCruise™ AR — keeping overlaid graphics locked to real-world objects as the vessel moves. Color-coded AIS labels deliver instant vessel identification, status, and collision-risk assessment, while major chart objects and saved waypoints appear in context on the live video image.

Specifications:

• Bundle contents: CAM300 camera, AR200 sensor, SeaTalkNG T-piece, 1M cable, 10M RayNet cable
• CAM300 sensor: 3MP CMOS, up to 1080p HD resolution
• CAM300 infrared night vision range: up to 33 ft (10 m)
• CAM300 simultaneous streams: up to 4 on a single Axiom display
• CAM300 power: 12V direct or single-cable Power over Ethernet (PoE)
• CAM300 enclosure rating: IP66 (above- and below-deck capable)
• CAM300 installation: full ball rotation in housing; image flip and invert functions
• CAM300 third-party compatibility: ONVIF Profile S
• AR200 sensors: GNSS receiver and AHRS (heading, pitch, roll)
• AR200 function: video stabilization and GPS/heading data for ClearCruise™ AR on Axiom chartplotters
• ClearCruise AR overlays: live AIS targets, waypoints, marks, and charted navigation aids
• Chartplotter compatibility: Raymarine Axiom series
