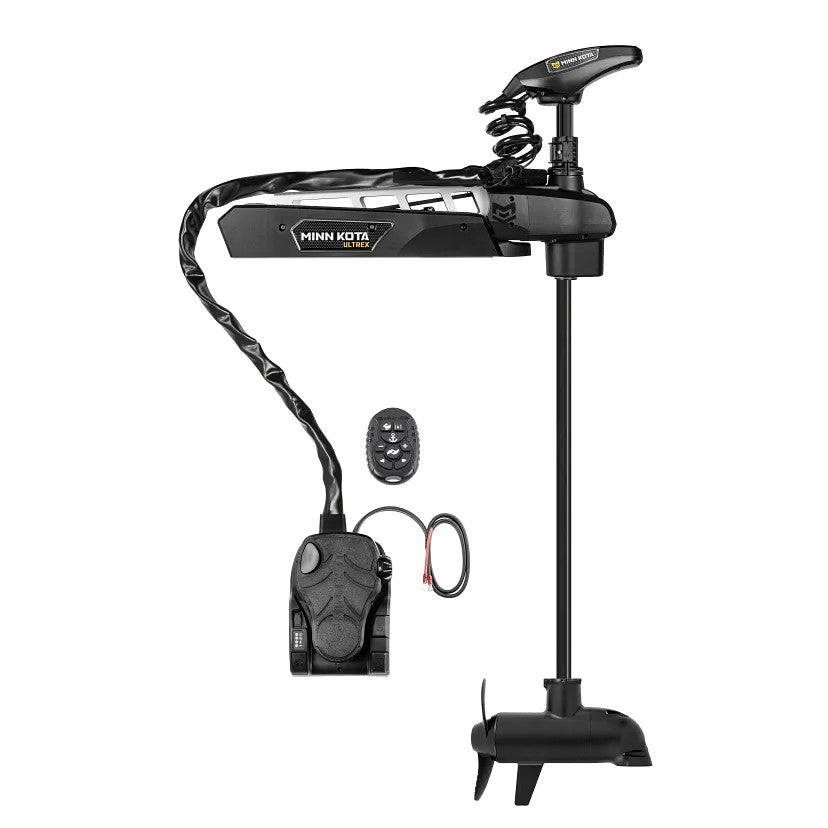

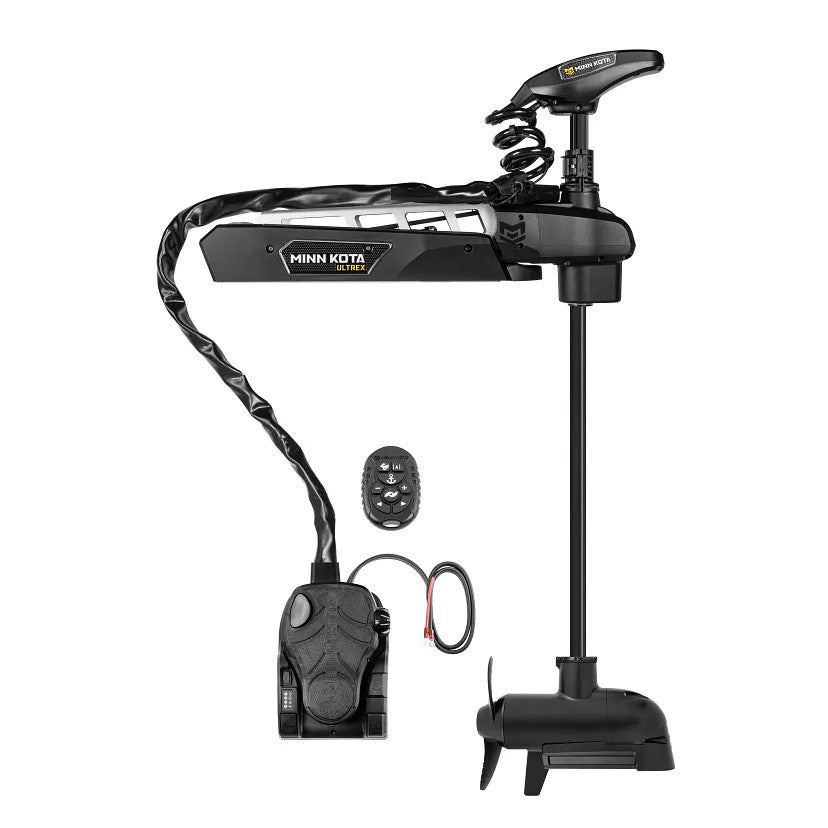

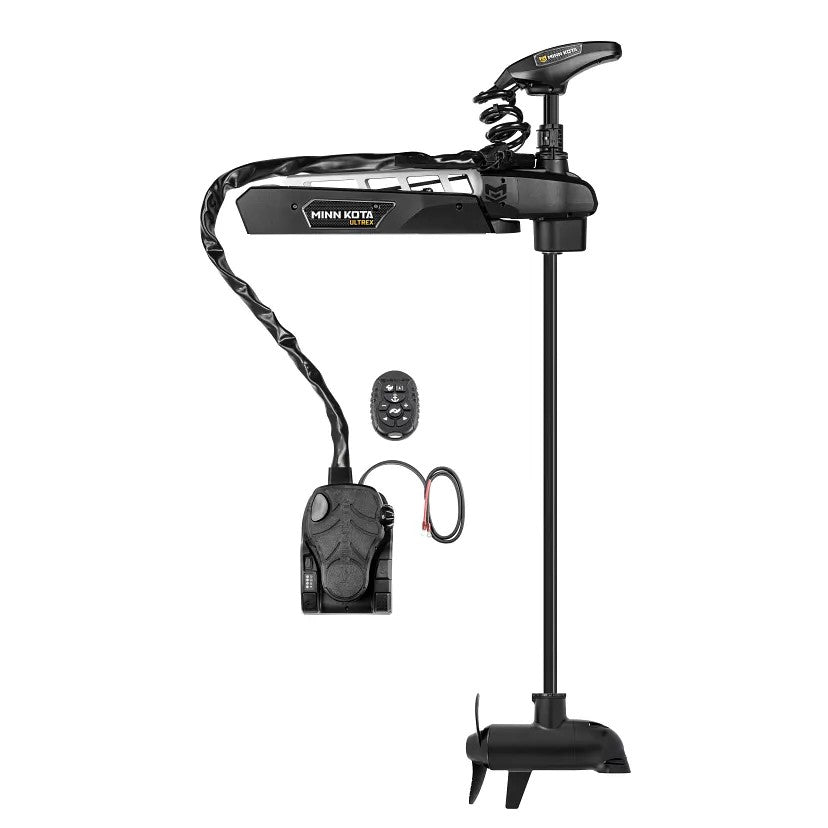

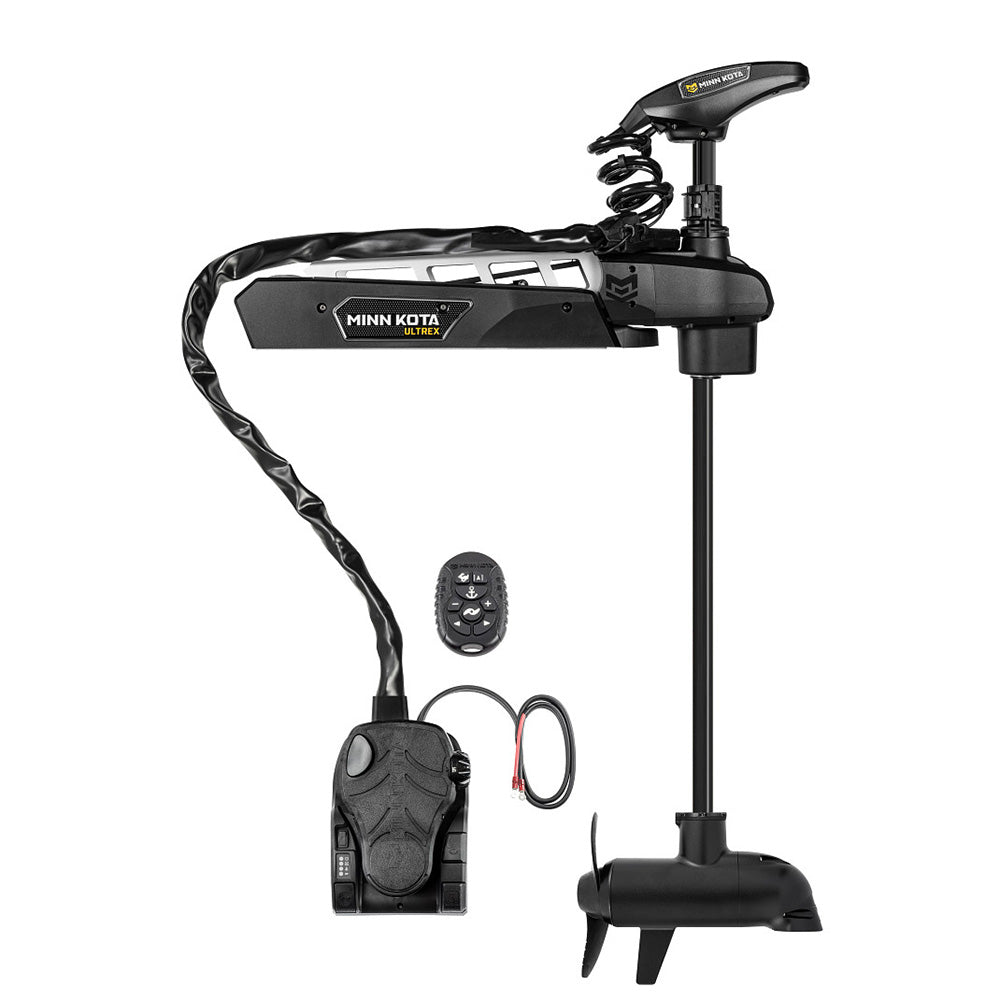

The Minn Kota Ultrex QUEST™ 90/115 is a ground-up reimagining of the world's most capable bow-mount trolling motor — now built tougher, smarter, and more efficient than ever. A dual 24/36V brushless drivetrain pairs with an advanced GPS system, programmable foot pedal, built-in Dual Spectrum CHIRP sonar, and full One-Boat Network integration to give serious anglers complete command of boat position, speed, and depth tracking in any conditions. Eco Mode, real-time battery monitoring, and Digital Maximizer technology keep you on the water longer, while a lifetime-guaranteed composite shaft means this motor is built to outlast the abuse.

QUEST Series Highlights:

• Dual 24/36V brushless motor — completely re-engineered from the ground up with updates to mounts, propellers, lift assist systems, drive motors, and software
• Designed for anglers who demand reliable performance in the harshest on-water environments

Advanced GPS & One-Boat Network:

• Links trolling motor to a Humminbird® fish finder via One-Boat Network for integrated boat control
• Control via included remote or a connected Humminbird unit
• Features include Spot-Lock, recorded path playback, depth contour following, auto-navigation to saved spots, and speed/steering control

Spot-Lock with Jog:

• Pre-installed GPS holds the boat in place with precision GPS accuracy — no manual adjustment needed
• Included heading sensor enables Jog function: moves Spot-Lock position 5 feet in any direction

Drift Mode:

• Simultaneously engages speed and course control automatically
• Eliminates reliance on drift socks, kicker motors, or manual operation to manage speed over water in heavy wind and current

Heel-Toe Programmable Foot Pedal:

• Power Steering foot pedal for all-day comfort and instant responsiveness
• User-programmable button assignable to: marking a waypoint, engaging AutoPilot, or deploying/retracting Minn Kota shallow water anchors

Real-Time Battery Monitoring:

• Displays live battery power levels while the motor is running
• Real-time "time until empty" readout
• Alerts user at 20% battery remaining with a prompt to engage Eco Mode, which reduces current draw to extend battery life

Digital Maximizer™:

• Delivers up to 5× longer run time on a single charge
• Variable speed control lets you dial in exact speed, drawing only the power required

Indestructible Composite Shaft:

• Minn Kota exclusive composite shaft construction
• Guaranteed for life against breakage

Mobile App Compatibility:

• Compatible with Apple® and Android™ devices via Minn Kota mobile app
• App provides speed, steering, Spot-Lock, and AutoPilot control, plus over-the-air software updates

Built-In Dual Spectrum CHIRP Sonar:

• Transducer and wiring run entirely through the motor shaft — fully concealed and protected
• Humminbird® Dual Spectrum CHIRP covers a wide frequency range for more accurate, detailed returns of fish, structure, and bottom composition vs. traditional sonar

Specifications:

• Motor: Ultrex QUEST™ 90/115
• Voltage: Dual 24V / 36V
• Thrust: 90 / 115 lbs
• Shaft Lengths Available: 45", 52", 60"
• Sonar: Built-In Dual Spectrum CHIRP
• Drive Type: Brushless
• Foot Pedal: Heel-Toe Power Steering with programmable button
• GPS: Pre-installed with Spot-Lock, Jog, Drift Mode, AutoPilot, and depth contour following
• Network Compatibility: One-Boat Network (Humminbird® integration)
• App Compatibility: Apple® iOS and Android™
• Battery Monitoring: Real-time display with Eco Mode alert at 20%
• Shaft Material: Indestructible composite — lifetime guarantee
• Includes: Ultrex QUEST 90/115 lb. 45" trolling motor with Built-In Dual Spectrum CHIRP and Micro Remote

Available in 45", 52", and 60" -- choose your option below.
