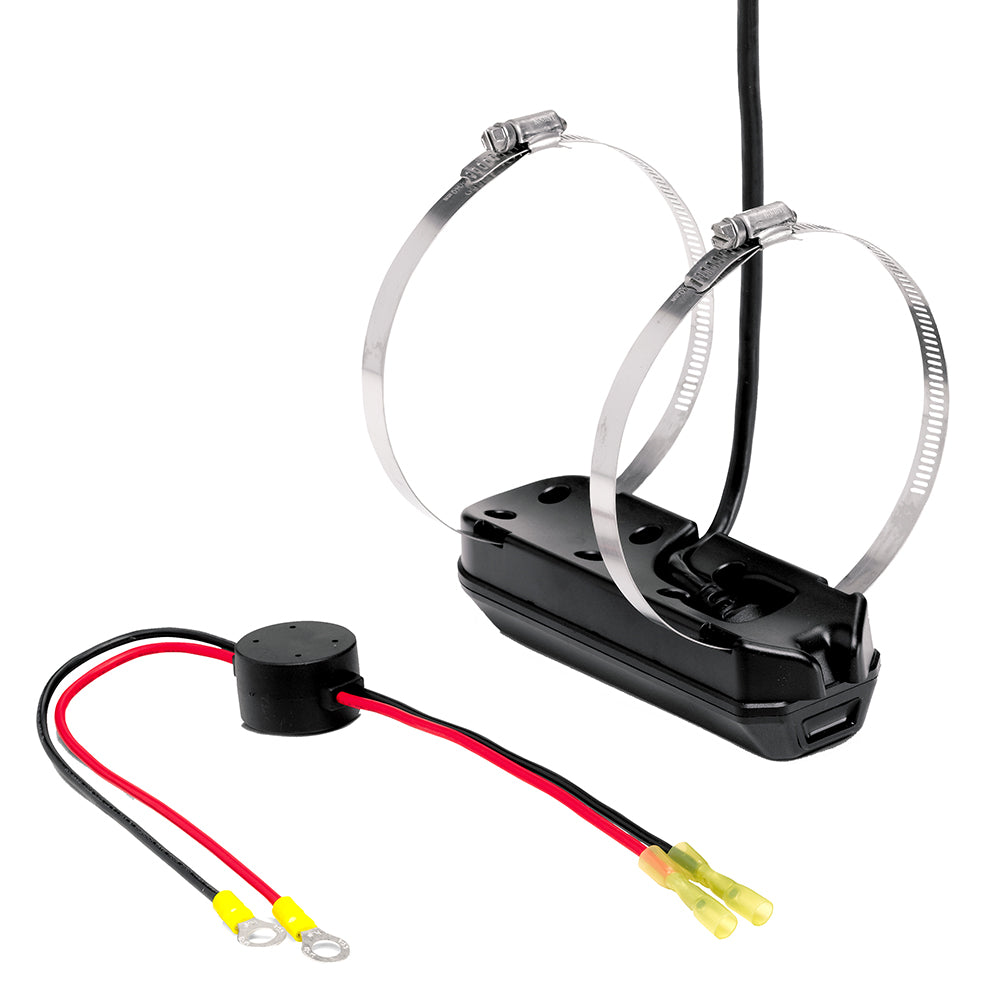

The Humminbird XTM-14-HW-MDI-T mounts to your trolling motor and delivers MEGA Down Imaging+, Dual Spectrum CHIRP 2D sonar, and a built-in temperature sensor — all in a single transducer engineered for SOLIX and APEX units. The wide MEGA DI+ frequency range pushes detail down to 200 feet, while Dual Spectrum CHIRP reaches as deep as 1,200 feet, giving Pacific Northwest anglers a serious look at what's below in any depth.

Specifications:

• Mount Type: Trolling motor
• Compatible Units: All APEX models, all SOLIX models (to maximum transducer capability)

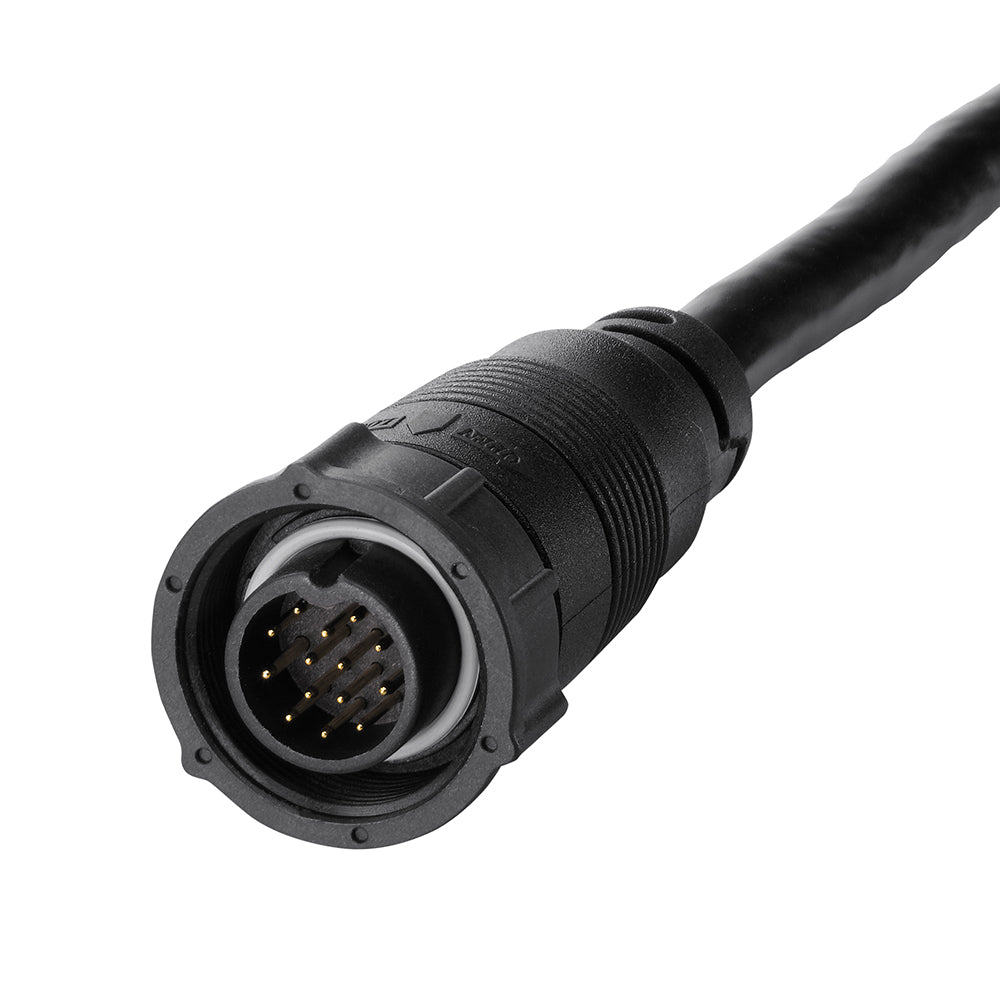

• Cable Length: 15 feet
• Dual Spectrum CHIRP Frequencies: Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz
• Dual Spectrum CHIRP Max Depth: 1,200 ft (365 m)
• MEGA Down Imaging+ Frequencies and Max Depths: 455 kHz (440–500 kHz) — 400 ft (122 m); 800 kHz (790–850 kHz) — 125 ft (38 m); MEGA DI+ (1,075–1,150 kHz) — 200 ft (61 m)
• Built-In Temperature Sensor: Yes
• Transducer Dimensions: 7.15" long x 2.3" wide (note: will not fit Minn Kota trolling motors with less than 80 lbs of thrust, as the unit will not clear between the prop and skeg)
• Warranty: 1-Year Limited

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
