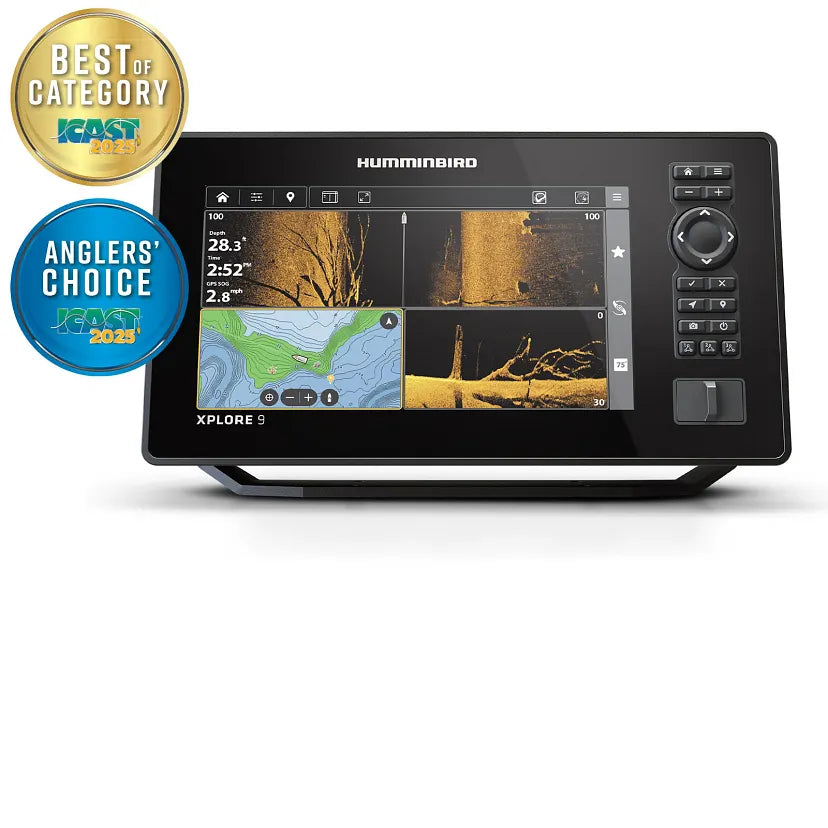

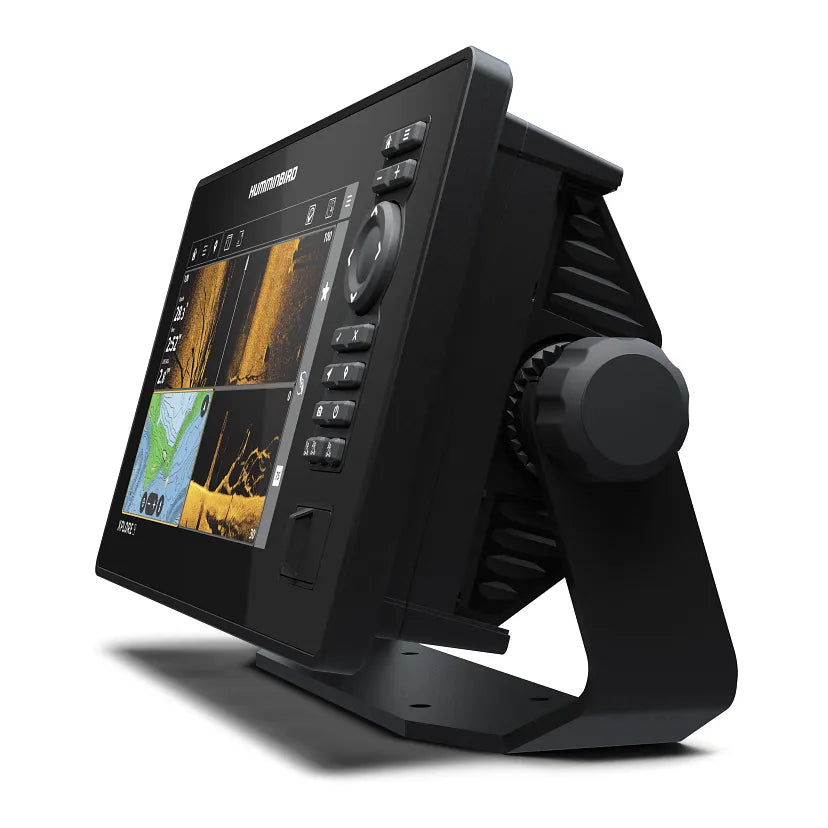

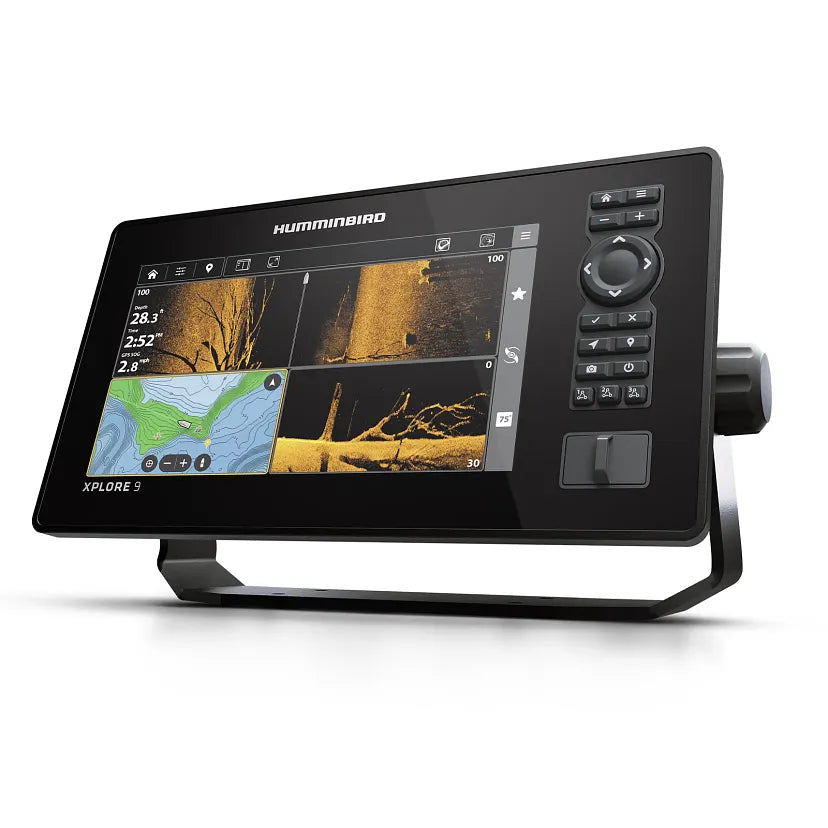

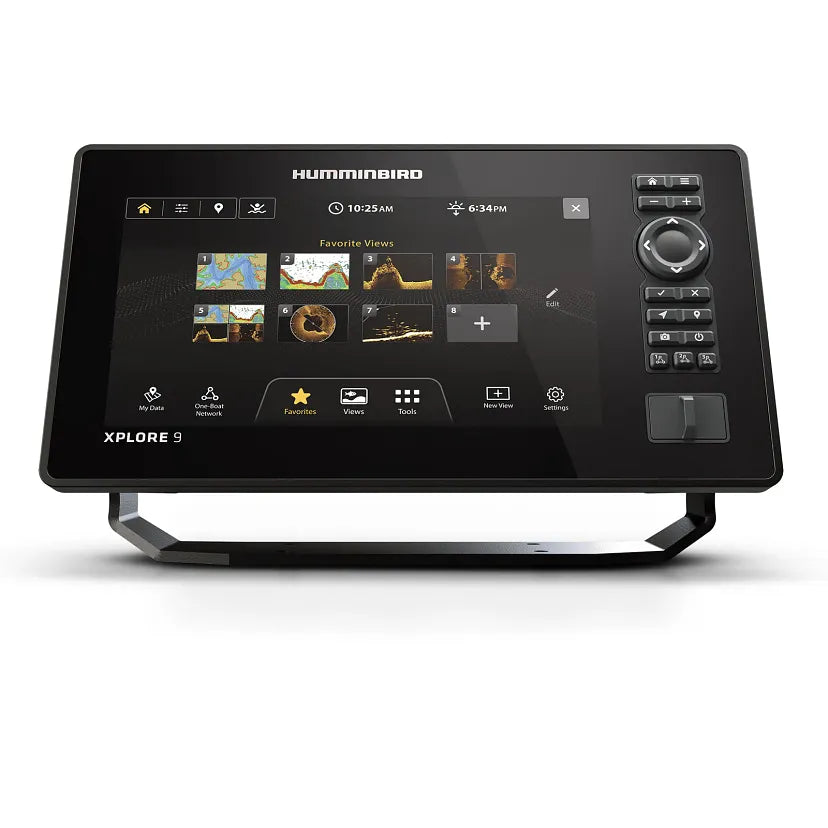

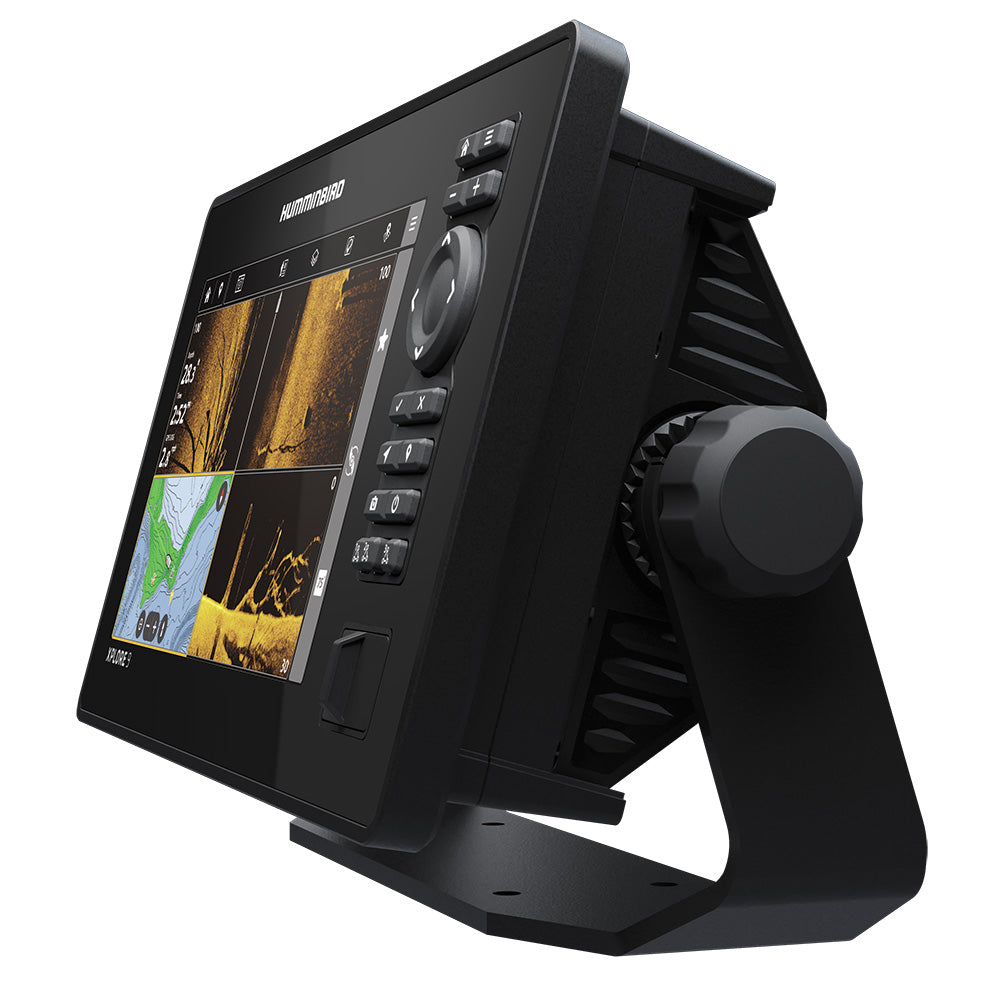

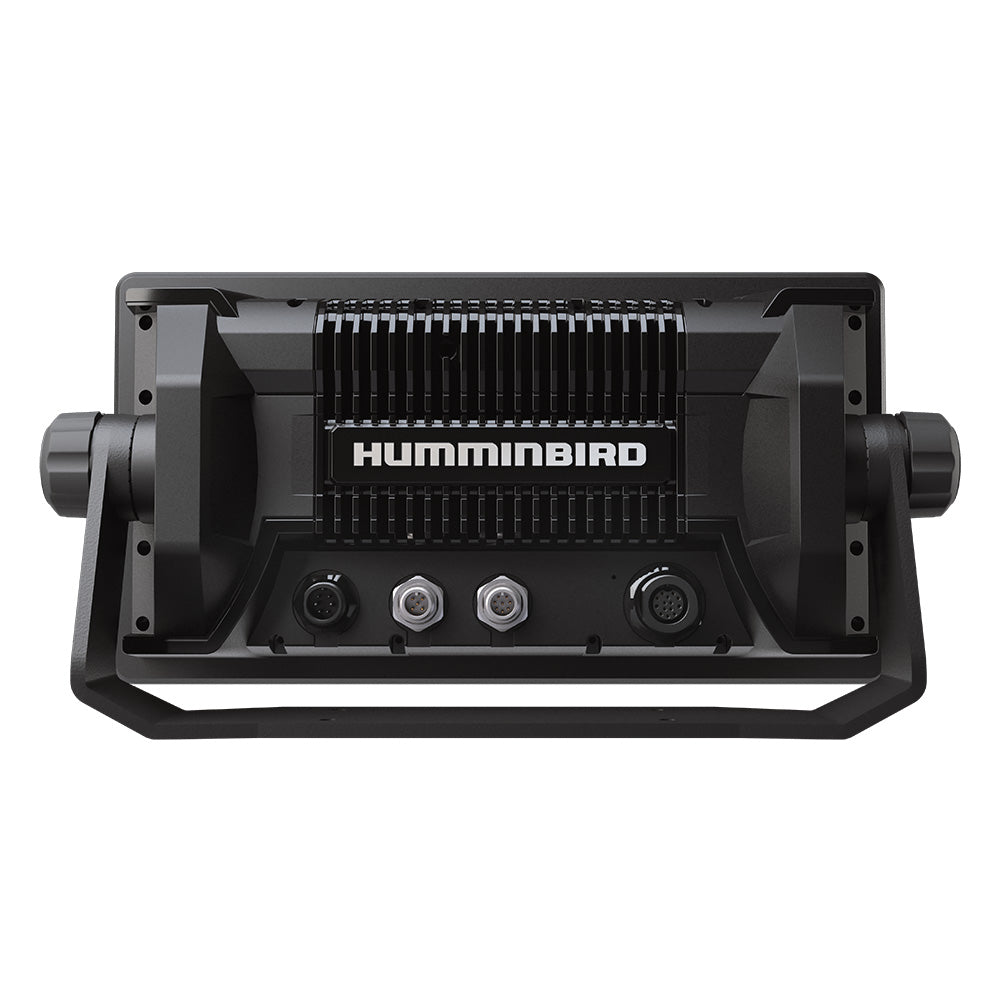

The Humminbird XPLORE 9 CMSI+ pairs a 9-inch Full-HD touchscreen with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar in a single unit built for serious anglers. Bundled LakeMaster and CoastMaster map cards covering 13 regions across the U.S. and Canada set the XPLORE series apart, while Wi-Fi, Bluetooth, NMEA 2000, and Ethernet keep it fully integrated within the One-Boat Network ecosystem of Humminbird, Minn Kota, and Cannon products.

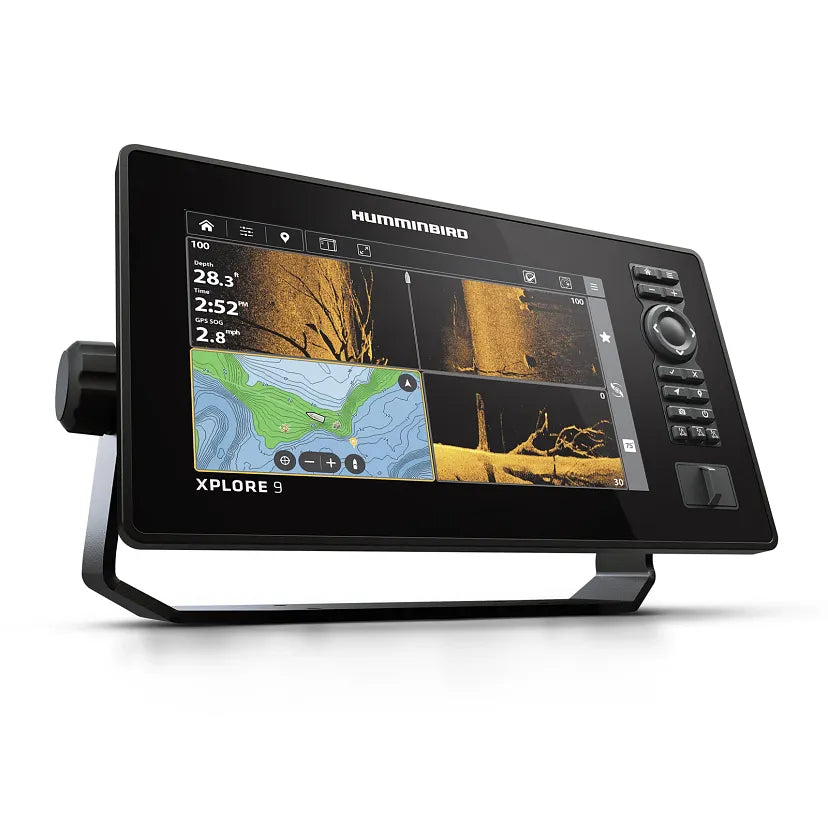

Full-HD Display with Cross Touch Interface

• 1280H x 720V resolution delivers sharp sonar and chart detail; operate via touchscreen or keypad — your choice.

Dual Spectrum CHIRP Sonar

• Powered by a proprietary Low-Q CHIRP transducer, Dual Spectrum provides two search modes: Wide Mode for broad coverage and Narrow Mode for pinpoint detail, producing highly defined fish arches and clear bottom structure.

MEGA Side Imaging+

• Scans out to 200 feet on either side of the boat with 20% more detail and 60% more range than standard MEGA Side Imaging sonar.

MEGA Down Imaging+

• Delivers underwater clarity down to 200 feet beneath the hull with 20% more detail and 60% more depth capability than standard MEGA Down Imaging sonar.

Combined Sonar Coverage

• MEGA Imaging+ covers up to 250 feet below and out to either side of the boat; Dual Spectrum CHIRP adds superior 2D sonar with excellent target separation and fish definition.

Internal GPS and Humminbird Basemap

• Built-in GPS with an enhanced basemap covering more than 10,000 lakes plus continental U.S. coastal areas; identifies buoys, day markers, hazards, marinas, contours, and depth markers.

Premium Chart Compatibility

• Supports optional Humminbird LakeMaster, CoastMaster, and compatible Navionics charts; includes LakeMaster and CoastMaster cards with North American standard data for 13 U.S. and Canada regions.

AutoChart Live

• Generates real-time depth contour, bottom hardness, and vegetation maps as you navigate; includes 8 hours of built-in recording time and supports AutoChart Zero Line SD cards for expanded capacity. Integrates patented Humminbird LakeMaster features.

One-Boat Network Compatible

• Communicates seamlessly with Minn Kota and Cannon products via Wi-Fi, Bluetooth, NMEA 2000, and Ethernet networking to unlock expanded boat control and fish-catching capabilities.

Specifications:

• Display: 9-inch Full-HD, 1280H x 720V resolution
• Interface: Cross Touch (touchscreen and keypad)
• Sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Side Imaging+ Range: Up to 200 feet per side (20% more detail, 60% more range vs. MEGA Side Imaging)
• MEGA Down Imaging+ Depth: Up to 200 feet (20% more detail, 60% more depth vs. MEGA Down Imaging)
• MEGA Imaging+ Coverage: Up to 250 feet below and to either side
• Transducer: Low-Q CHIRP (proprietary)
• GPS: Internal
• Basemap: Humminbird Basemap — 10,000+ lakes plus continental U.S. coastal coverage
• Included Maps: LakeMaster and CoastMaster cards, 13 regions (U.S. and Canada)
• Chart Compatibility: Humminbird LakeMaster, CoastMaster, Navionics (compatible)
• AutoChart Live: Included — 8 hours built-in recording; AutoChart Zero Line SD card compatible

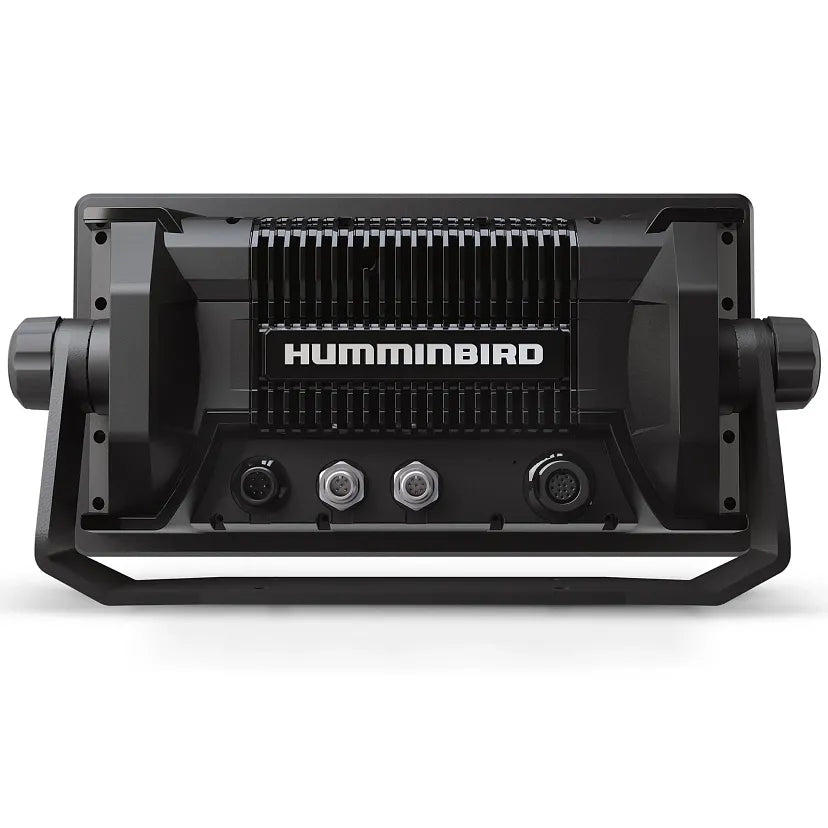

• Networking: Wi-Fi, Bluetooth, NMEA 2000, Ethernet
• One-Boat Network: Compatible with Humminbird, Minn Kota, and Cannon products
