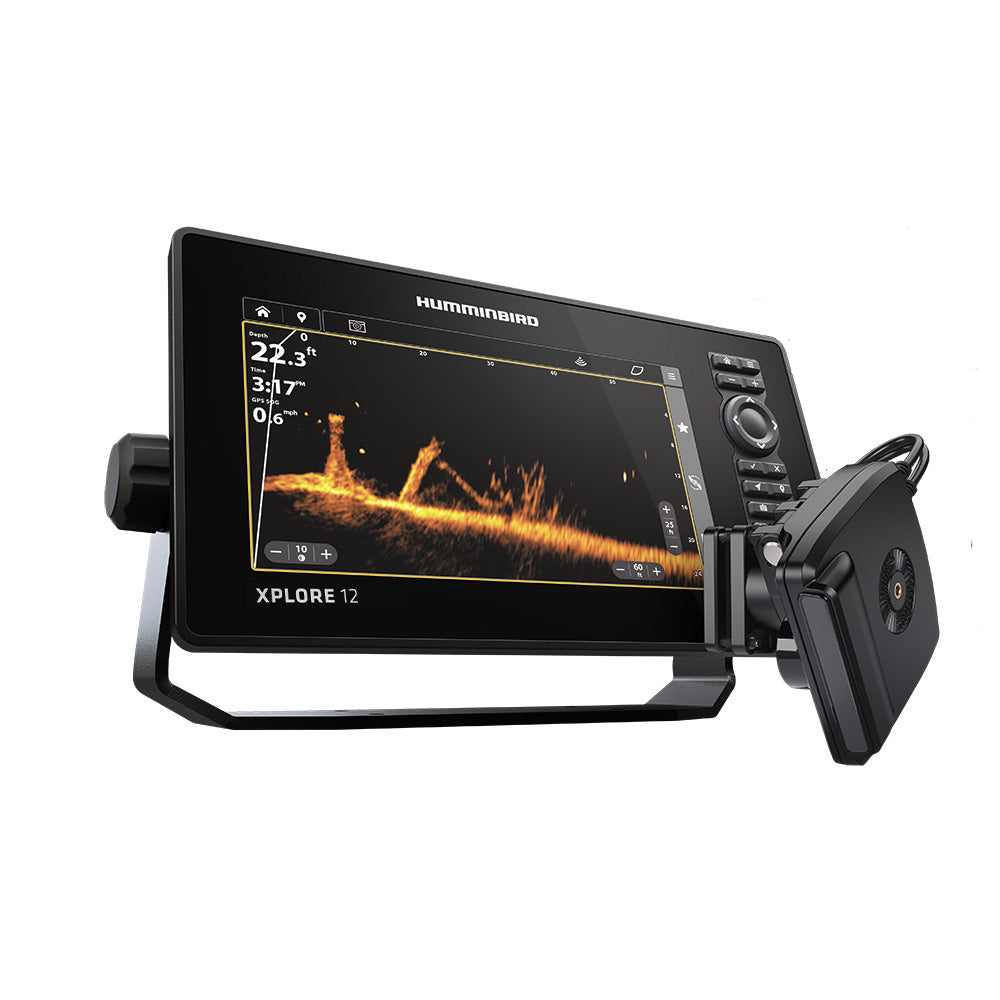

The Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle pairs a 12-inch ultra-clear Full-HD display with an extensive sonar suite — MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP — alongside the MEGA Live 2 live sonar transducer and a transom mount transducer. Exclusive to the XPLORE Series, this unit ships with both LakeMaster and CoastMaster map cards covering 13 regions across the United States and Canada, giving freshwater and saltwater anglers a ready-to-fish package straight out of the box. Wi-Fi, Bluetooth, NMEA 2000, and Ethernet networking enable full One-Boat Network compatibility with Humminbird, Minn Kota, and Cannon products.

Full-HD Display with Cross Touch Interface

The 1280H x 800V display delivers sharp, high-resolution sonar and chart imagery. Navigate menus and settings using either the intuitive touchscreen or the physical keypad — whichever suits your fishing style.

MEGA Live 2 Live Sonar Transducer

MEGA Live 2 mounts to a trolling motor shaft and delivers real-time imaging of fish and structure with enhanced clarity powered by MEGA Imaging technology. Three viewing modes — Forward, Down, and Landscape — provide continuous, gap-free sonar coverage all around the boat. Compatible with all Humminbird APEX, SOLIX G3, and XPLORE models, as well as Minn Kota trolling motors.

Dual Spectrum CHIRP Sonar

Driven by a proprietary Low-Q CHIRP transducer, Dual Spectrum CHIRP offers two search modes: Wide Mode for broad coverage and Narrow Mode for pinpoint detail. The result is crisp fish arches and a clear picture of bottom structure before you even make a cast.

MEGA Side Imaging+

Scan out to 200 feet on either side of the boat with crystal-clear Side Imaging. Compared to standard MEGA Side Imaging, MEGA Side Imaging+ delivers 20% more detail and 60% more range capability, revealing fish and structure that would otherwise go undetected.

MEGA Down Imaging+

Look straight down with unprecedented underwater clarity to depths of 200 feet. MEGA Down Imaging+ improves on standard MEGA Down Imaging with 20% more detail and 60% more depth capability.

Internal GPS and Humminbird Basemap

The built-in GPS pairs with an enhanced basemap covering more than 10,000 lakes plus coastal coverage for the continental U.S. Clearly identify buoys, day markers, hazards, marinas, depth contours, and other points of interest for confident fishing and navigation.

Premium Chart Compatibility

Beyond the included LakeMaster and CoastMaster map cards with North American standard data, the XPLORE 12 CMSI+ supports optional Humminbird LakeMaster, CoastMaster, and compatible Navionics charts for anglers who want expanded coverage.

AutoChart Live

Create custom real-time depth maps of your favorite fishing spots on the water, building a personalized chart library as you fish.

One-Boat Network Connectivity

Wi-Fi, Bluetooth, NMEA 2000, and Ethernet networking integrate seamlessly with the One-Boat Network ecosystem of Humminbird fishfinders, Minn Kota trolling motors, and Cannon downriggers.

Specifications:

• Display: 12-inch Full-HD, 1280H x 800V resolution
• Interface: Cross Touch (touchscreen + keypad)
• Sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Side Imaging+ range: up to 200 feet per side; 20% more detail and 60% more range vs. MEGA Side Imaging
• MEGA Down Imaging+ depth: up to 200 feet; 20% more detail and 60% more depth vs. MEGA Down Imaging
• MEGA Imaging+ combined coverage: views up to 250 feet under and out to either side of the boat
• Dual Spectrum CHIRP modes: Wide (maximum coverage) and Narrow (maximum detail)
• Live Sonar: MEGA Live 2 transducer (trolling motor mount) with Forward, Down, and Landscape viewing modes
• Live Sonar compatibility: Humminbird APEX, SOLIX G3, XPLORE; Minn Kota trolling motors
• GPS: Internal
• Included maps: Humminbird Basemap (10,000+ lakes, continental U.S. coastal coverage); LakeMaster and CoastMaster map cards — 13 regions, United States and Canada
• Premium chart support: Humminbird LakeMaster, CoastMaster, and compatible Navionics charts (optional)
• Networking: Wi-Fi, Bluetooth, NMEA 2000, Ethernet
• One-Boat Network compatible: Humminbird, Minn Kota, and Cannon products
• Includes: Transom mount transducer, MEGA Live 2 live sonar transducer, LakeMaster and CoastMaster map cards
