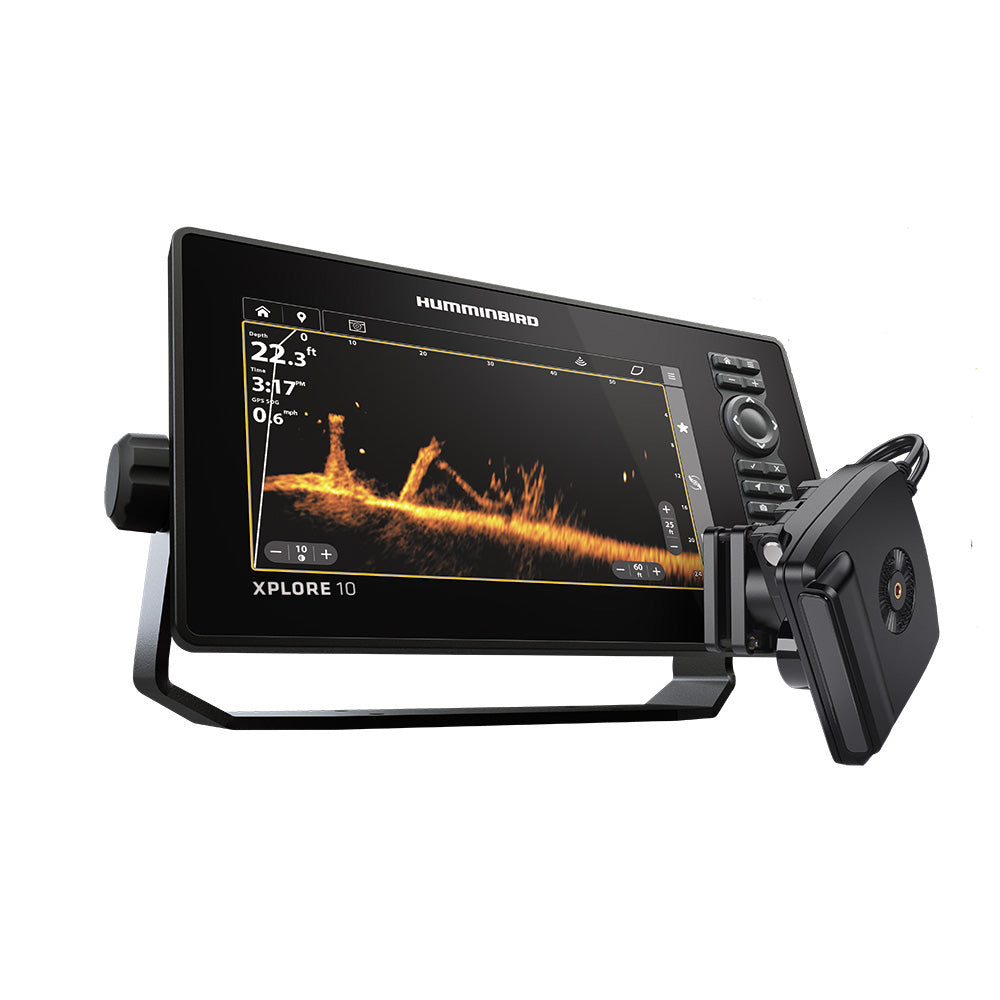

The Humminbird XPLORE 10 CMSI+ Mega Live 2 Bundle pairs a 10" Full-HD fishfinder display with the MEGA Live 2 live sonar transducer, delivering real-time underwater views alongside MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar. Bundled LakeMaster and CoastMaster map cards covering 13 U.S. and Canadian regions set the XPLORE series apart, while built-in Wi-Fi, Bluetooth, NMEA 2000, and Ethernet keep it fully integrated with the One-Boat Network ecosystem of Humminbird, Minn Kota, and Cannon products.

Full-HD Display with Cross Touch Interface

A 1280H x 720V display renders sonar returns and chart overlays with exceptional sharpness. The Cross Touch interface lets you operate the unit via touchscreen or physical keypad — whichever suits the conditions.

MEGA Live 2 Live Sonar Transducer

MEGA Live 2 mounts to a trolling motor shaft and streams real-time sonar with no gaps in coverage. Three selectable viewing modes — Forward, Down, and Landscape — let you see fish and structure as they move. Compatible with all Humminbird APEX, SOLIX G3, and XPLORE units and Minn Kota trolling motors.

Dual Spectrum CHIRP Sonar

Powered by a proprietary Low-Q CHIRP transducer, Dual Spectrum sonar offers Wide Mode for broad area coverage and Narrow Mode for pinpoint detail. Fish arches are well-defined, and bottom structure reads clearly before the first cast.

MEGA Side Imaging+

Side Imaging+ scans out to 200 feet on each side of the hull with 20% more detail and 60% more range than standard MEGA Side Imaging, revealing fish-holding structure that would otherwise go undetected.

MEGA Down Imaging+

Down Imaging+ reaches 200 feet beneath the boat with 20% more detail and 60% more depth capability than MEGA Down Imaging, providing a high-resolution look straight down through the water column.

Internal GPS and Humminbird Basemap

The integrated GPS pairs with an enhanced basemap charting more than 10,000 lakes plus coastal coverage for the continental U.S. Buoys, day markers, hazards, marinas, contours, and depth markers are all clearly identified.

Premium Chart Compatibility

The XPLORE 10 CMSI+ accepts optional Humminbird LakeMaster, CoastMaster, and compatible Navionics charts. This bundle includes LakeMaster and CoastMaster mapping cards with North American standard data across 13 regions in the U.S. and Canada.

AutoChart Live

AutoChart Live lets you build real-time custom depth maps of your fishing areas on the water, storing personalized contour data for future trips.

One-Boat Network Connectivity

Wi-Fi, Bluetooth, NMEA 2000, and Ethernet networking enable seamless communication with compatible Humminbird, Minn Kota, and Cannon products within the One-Boat Network family.

Specifications:

• Display size: 10"
• Display resolution: 1280H x 720V (Full-HD)
• Interface: Cross Touch (touchscreen and keypad)
• Sonar types: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
• MEGA Side Imaging+ range: up to 200 feet per side (20% more detail, 60% more range vs. MEGA Side Imaging)
• MEGA Down Imaging+ depth: up to 200 feet (20% more detail, 60% more depth vs. MEGA Down Imaging)
• MEGA Imaging+ combined view: up to 250 feet under and to either side of the boat
• CHIRP transducer type: Low-Q CHIRP (proprietary); Wide Mode and Narrow Mode
• Live sonar transducer: MEGA Live 2 (included)
• MEGA Live 2 viewing modes: Forward, Down, Landscape
• MEGA Live 2 mount: trolling motor shaft
• MEGA Live 2 compatibility: Humminbird APEX, SOLIX G3, XPLORE; Minn Kota trolling motors
• Internal GPS: Yes
• Basemap: Humminbird Basemap (10,000+ lakes, continental U.S. coastal coverage)
• Included map cards: LakeMaster and CoastMaster with North American standard data, 13 U.S. and Canadian regions
• Premium chart compatibility: Humminbird LakeMaster, CoastMaster, Navionics
• AutoChart Live: Yes
• Networking: Wi-Fi, Bluetooth, NMEA 2000, Ethernet
• Network compatibility: One-Boat Network (Humminbird, Minn Kota, Cannon)
• Transducer mount: Transom mount (included)
