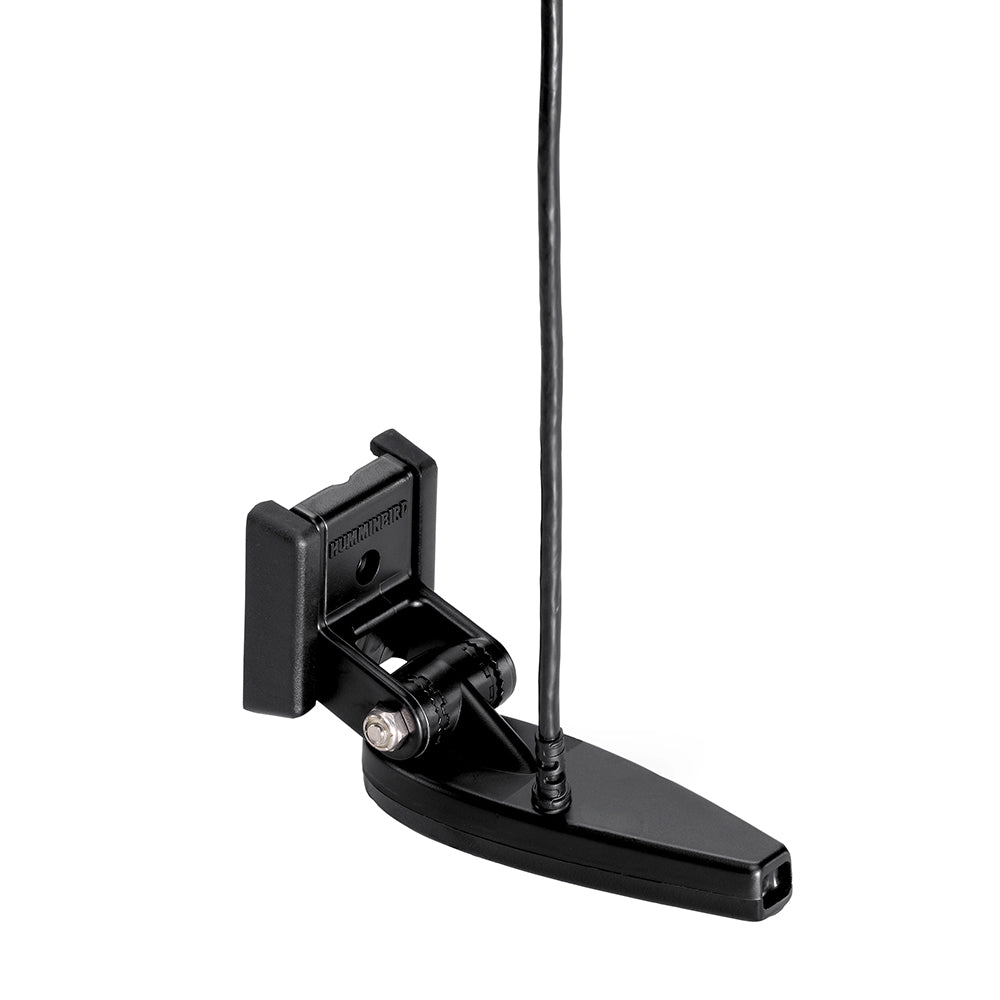

The Humminbird XNT-9-HW-MDI-75-T brings MEGA Down Imaging and Dual Spectrum CHIRP 2D sonar together in a single transom-mount package built for HELIX 7 and HELIX 8 fishfinders. A rugged composite housing, impact-release bracket, built-in temperature sensor, and 20-foot cable make this a ready-to-install upgrade for anglers who want high-resolution bottom detail alongside traditional sonar.

Specifications:

• Compatible Units: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N
• Cable Length: 20 ft
• Dual Spectrum CHIRP Frequency Range — Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Dual Spectrum CHIRP Maximum Depth: 1,200 ft (365 m)
• MEGA Down Imaging 455 kHz (440–500 kHz) Maximum Depth: 350 ft (107 m)
• MEGA DI 1,075–1,150 kHz Maximum Depth: 125 ft (38 m)
• Built-in Temperature Sensor: Yes
• Mounting Style: Transom mount with impact-release bracket
• Construction: Rugged composite

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
