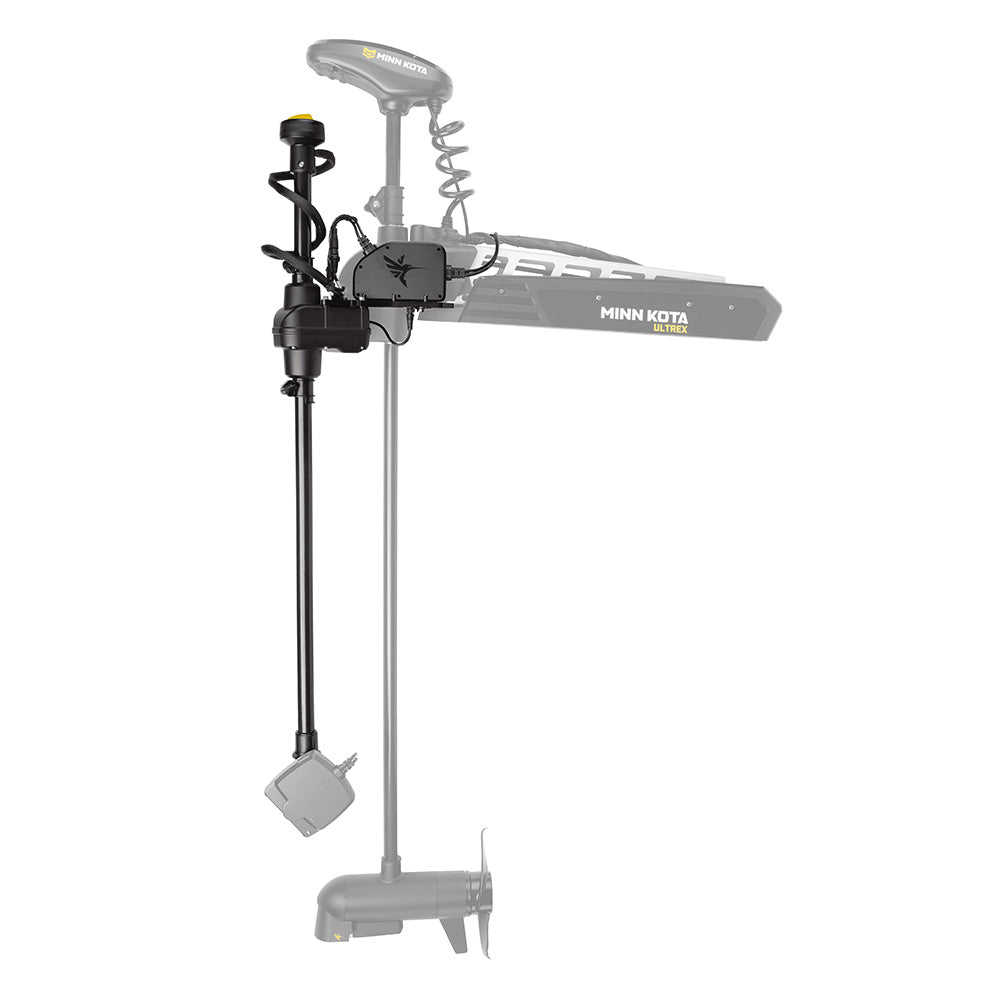

The Humminbird MEGA Live TargetLock Adapter Kit for Minn Kota Ultrex 60" trolling motors lets anglers add MEGA Live TargetLock capability without replacing existing gear. Mounted independently of the trolling motor shaft, the system keeps full Spot-Lock and steering functionality intact while giving dedicated directional control over the MEGA Live Imaging transducer. The TargetLock feature holds the live sonar beam on chosen structure even as the boat moves, and MEGA Live Sweep delivers a continuous 120-degree forward scan. Compatible control heads span all APEX and SOLIX units plus select HELIX G3N and G4N models. Note: MEGA Live Imaging Transducer and trolling motor are not included.

Specifications:

• Independently mounted from the trolling motor shaft — full trolling motor use, including Spot-Lock, is maintained alongside dedicated MEGA Live Imaging control
• TargetLock holds the live sonar beam locked on structure regardless of boat movement
• Controllable via the included MEGA Live foot pedal, the trolling motor foot pedal (Minn Kota Steer — requires motor with i-Pilot Link), compatible Humminbird fish finder display, or optional accessory hand remote
• MEGA Live Sweep: continuous 120-degree forward scan to identify structure and fish while retaining trolling motor control (requires AS GPS HS or Minn Kota Heading Sensor with Ultrex trolling motor with i-Pilot Link)
• MEGA Live Imaging delivers real-time sonar with no coverage gaps, powered by MEGA Imaging detail and clarity across the full sonar view
• Multiple viewing modes: Forward Mode (partial below-boat and forward coverage), Down Mode (full view below the boat), and Landscape Mode (wide top-down view around the boat)
• Connects to compatible Humminbird control heads via included Ethernet cable — no external sonar box required; leaves ports available for optional MEGA 360 Imaging or built-in MEGA Imaging sources
• Compatible control heads: all APEX models, all SOLIX models, HELIX 8–12 G3N, and HELIX 7–15 G4N (must be MEGA Side Imaging or MEGA Down Imaging model)
• Exclusively compatible with Minn Kota Ultrex and Ultrex QUEST 60" trolling motors
• In the box: MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20 ft Ethernet Cable, 10 ft Power Cable
• MEGA Live Imaging Transducer and trolling motor not included
• 2-Year Limited Warranty

Resources:

• Installation Guide (PDF)
