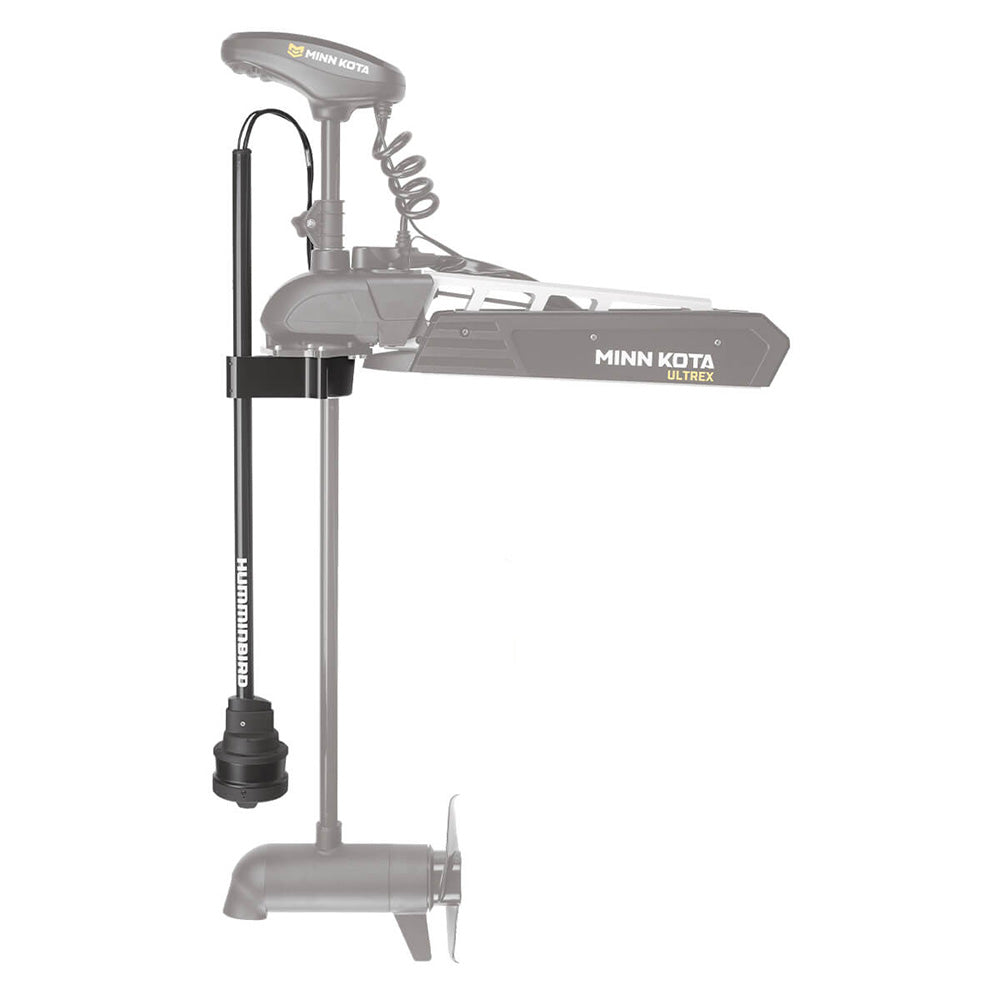

The Humminbird MEGA 360 Imaging transducer for the Minn Kota Ultrex and Ultrex QUEST mounts independently on the trolling motor, delivering a full 360-degree MEGA Imaging picture around your boat without interrupting motor control. Whether you're holding position on Spot-Lock or trolling through rough Pacific Northwest conditions, the sonar view stays consistent as the motor turns — giving you a continuous, photo-like read of fish, structure, and bottom composition in all directions.

Specifications:

• Compatible HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N
• Compatible with all APEX models and all SOLIX G2 and G3 models
• Compatible with all Minn Kota Ultrex and Ultrex QUEST trolling motor models
• High-frequency MEGA Imaging beam CHIRPs across the megahertz range for picture-like detail around the entire boat
• Independently mounted transducer keeps the sonar image stable while the trolling motor turns — usable during trolling and Spot-Lock
• Two selectable operation modes: MEGA 360 Imaging or Side Imaging
• Waypoints can be marked directly on the MEGA 360 Imaging screen and update dynamically as boat position changes
• Optional range rings display target distances from the boat
• Viewable alongside multiple sonar and mapping technologies simultaneously
• Customizable sweep speed, viewing area, display information, sonar zoom, and color palette
• MEGA 360 Imaging view shareable across all SOLIX models and all HELIX G2N and G3N models via Ethernet network when connected to a compatible HELIX G3N (MEGA Imaging+) or SOLIX G2 unit
• Transducer shaft length: 39 inches
• Weight: 12 lbs
• Mounting bracket material: Anodized Aluminum
• 2-Year Limited Warranty

In the Box:

• Ultrex bow-mount MEGA 360 Imaging transducer with attached power cable and transducer cable
• 10 ft SOLIX transducer cable
• 10 ft HELIX transducer adapter cable
• 10 ft MEGA 360 power cable
• MEGA 360 Imaging Ultrex mounting bracket
• Minn Kota Ultrex trolling motor sold separately
