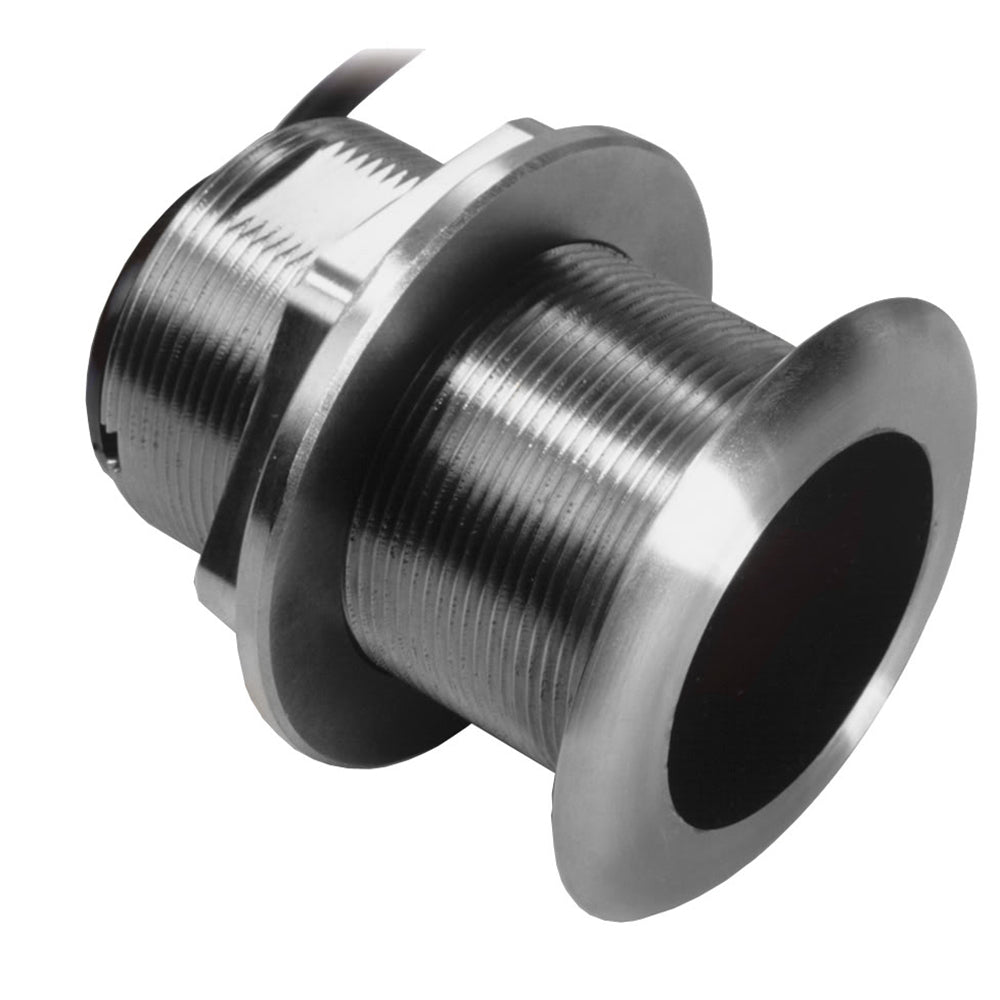

The Garmin SS60 is a stainless steel thru-hull transducer built for fiberglass and wood hulls, providing a true vertical beam at 0° tilt without needing a fairing block. Dual-frequency operation at 50 and 200 kHz with 600 watts of power gives anglers dependable bottom readings from shallow water down past 1,000 feet — a solid choice for any sonar-equipped vessel running an 8-pin Garmin sounder.

Specifications:

• Transducer type: Thru-hull, 0° tilt
• Construction: Stainless steel
• Power output: 600 W
• Connector: 8-pin
• Operating frequencies: 50 / 200 kHz
• Beamwidth: 45° at 50 kHz / 12° at 200 kHz
• Depth range: 800–1,200 ft
• Deadrise compatibility: 0°–7°
• Compatible hull types: Fiberglass, wood
• No fairing block required
• Includes installation instructions
• Note: A transducer adapter cable is required when pairing with a 6-pin Garmin sounder (sold separately)
