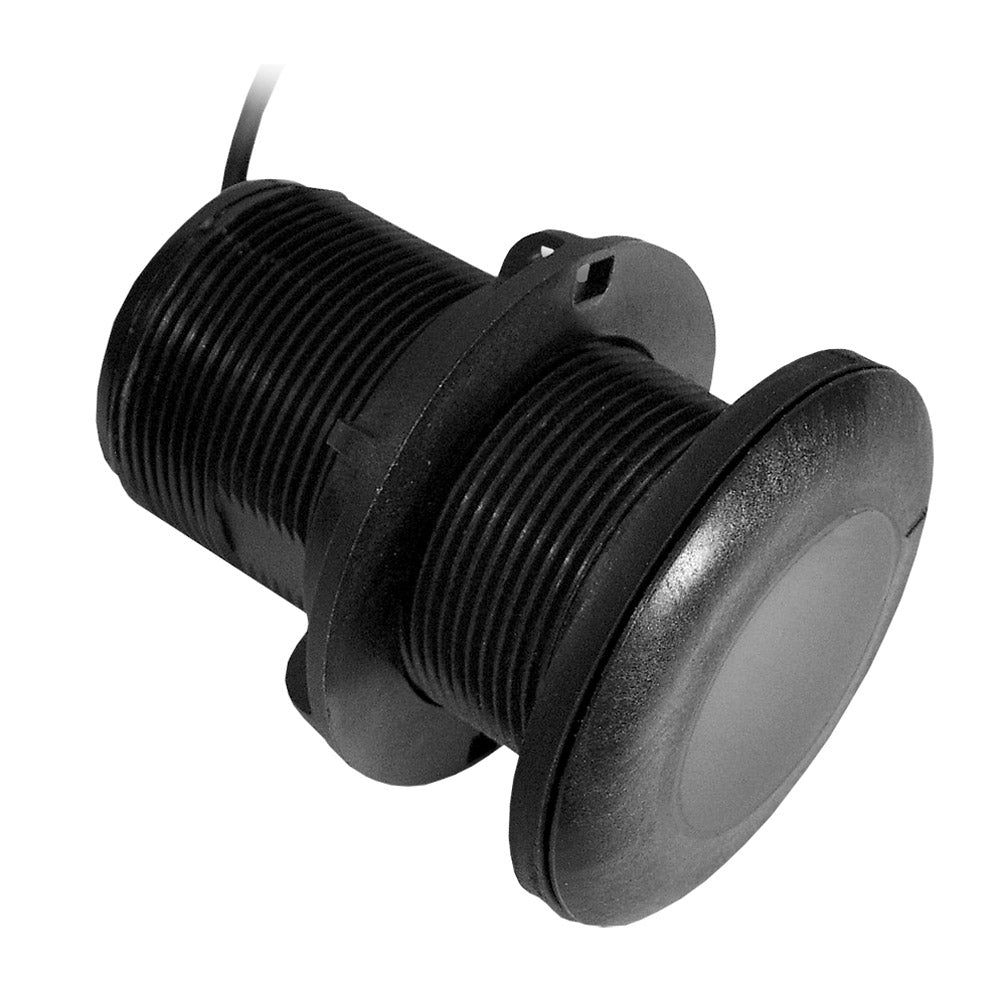

The Garmin P19 is a nylon thru-hull transducer engineered for a nearly flush installation — only 5 mm (2/10") extends below the hull, keeping drag minimal on cruising powerboats and sailboats up to 9 m (30 ft). Its internally tilted ceramic element compensates for hull deadrise without a fairing block, projecting a true vertical beam for accurate depth readings to 206 m (700 ft). The right-angle, low-headroom cable exit and included rubber washer make installation straightforward even on irregular hull surfaces.

Specifications:

• Housing material: Nylon plastic
• Connector: 8-pin
• Beam angle: 12° tilted element for 8°–15° hull deadrise
• Maximum depth: 206 m (700 ft)
• Hull protrusion: 5 mm (2/10")
• Cable exit: Right-angle, low-headroom design with step-on protection
• Included rubber washer accommodates irregular hull surfaces
• Housing compliance: ABYC H-27
• Function: Depth only, or depth and temperature (optional temperature sensor)
• Suitable vessel size: Up to 9 m (30 ft)
• Applications: Cruising powerboats and sailboats

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)
