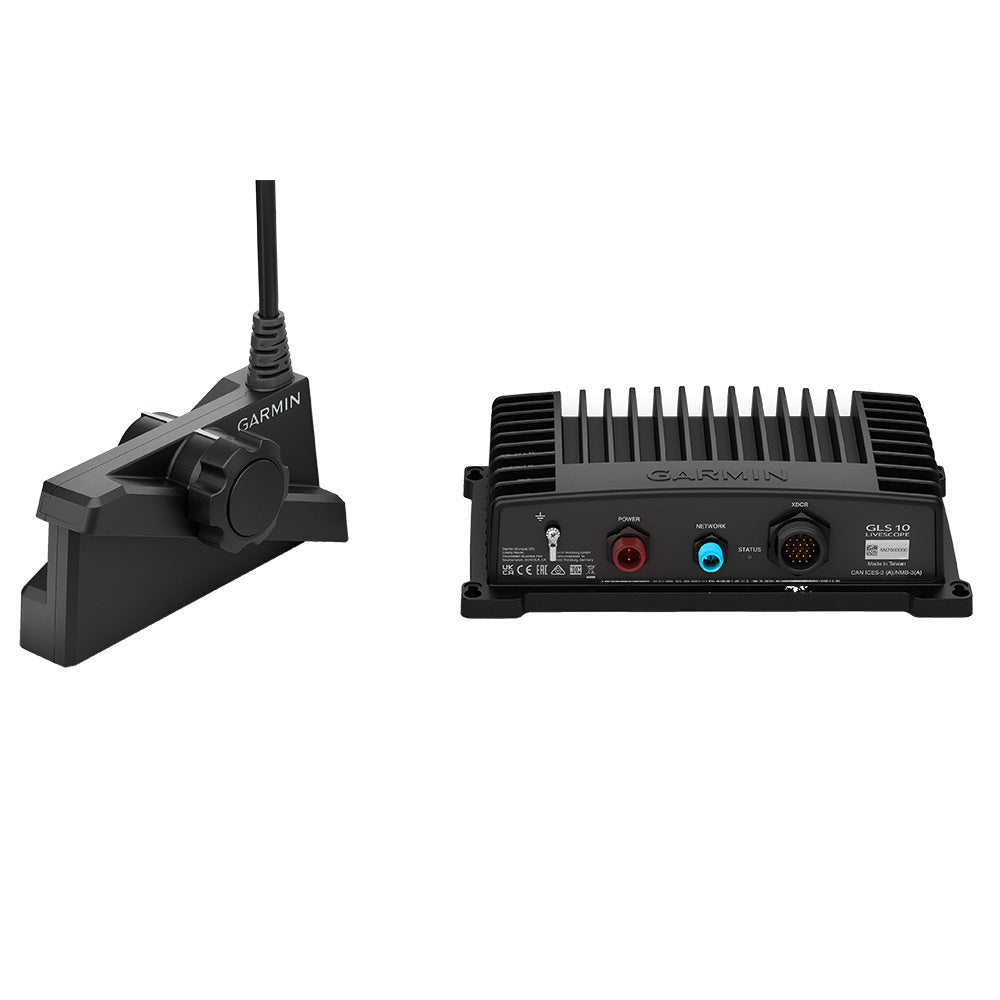

The Garmin LiveScope Plus Ice Fishing System brings live, real-time scanning sonar under the ice the moment you pair it with a compatible Garmin chartplotter. Built around the LVS34-IF transducer, a cold-weather flexible cable, and an all-in-one power cable, this package gives you everything needed to locate fish, identify structure, and watch your jig in action — all in a single system designed specifically for ice fishing.

Two operating modes expand your on-ice versatility. LiveScope Forward scans up to 200 feet in any direction around the hole, letting you pinpoint schools of fish before you ever pick up a drill. LiveScope Down mode focuses beneath you so you can observe exactly how fish respond to your presentation in real time. Reduced noise and fewer imaging artifacts keep your sonar picture sharp and easy to read, while customizable layout options — range, gain, color limit, and color brightness — let you fine-tune the display to your conditions.

Specifications:

• Transducer beamwidth: 20° x 135°
• Transducer cable length: 20 ft
• Transducer number of pins: 21
• Dimensions — GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
• Weight — GLS 10 sonar black box: 4.3 lbs (2.0 kg); LiveScope Plus LVS34-IF transducer: 2.25 lbs (1.02 kg)
• Water rating: IPX7
• Temperature range — GLS 10 black box operating: -15°C to 70°C; LVS34-IF transducer operating: 0°C to 40°C
• Frequency: 530–1,100 kHz
• Transmit power: 500 W
• Maximum depth (Down and Forward): 200 ft (61.0 m)
• Sonar type: Live
• Target separation at 100 ft: 14"
• Garmin Marine Network ports: 1 (small connector)

In the Box:

• LiveScope Plus LVS34-IF transducer
• GLS 10 sonar module
• 0-degree pole mount
• Lithium-ion four-in-one power cable
• Hardware
• Documentation
