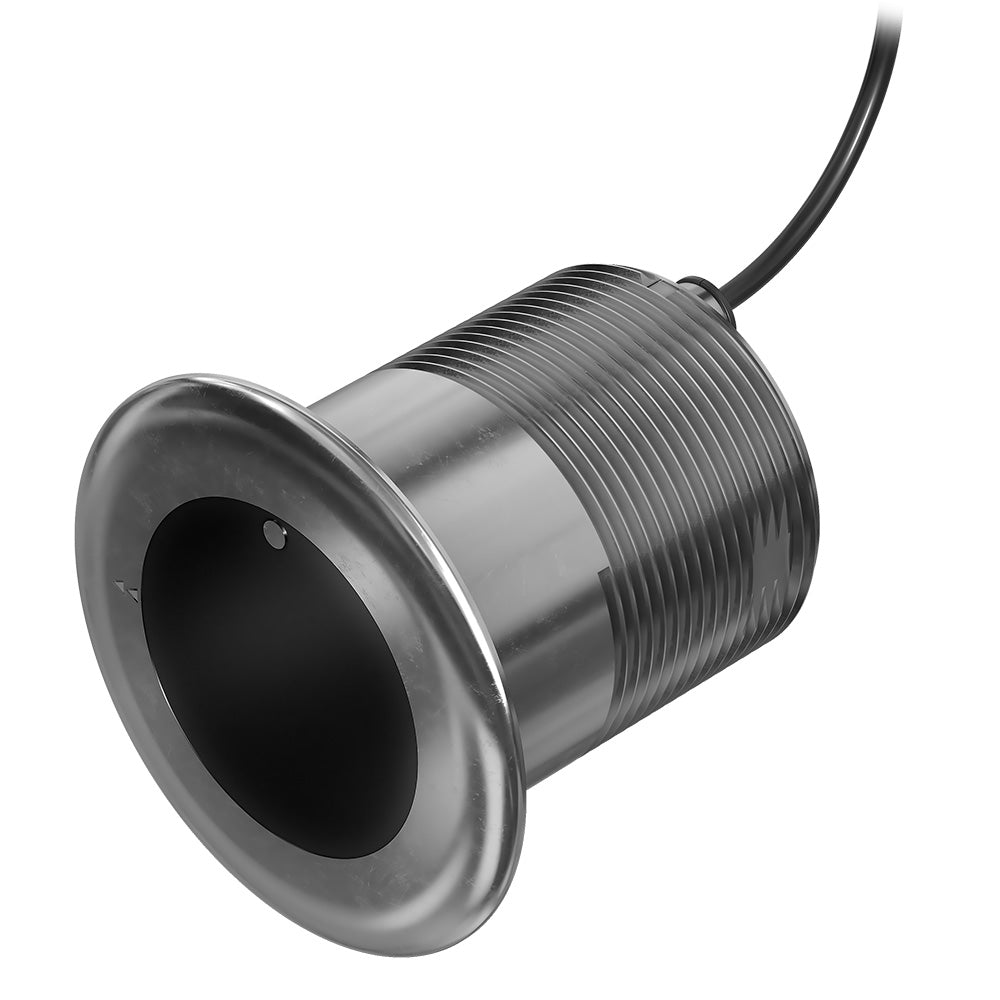

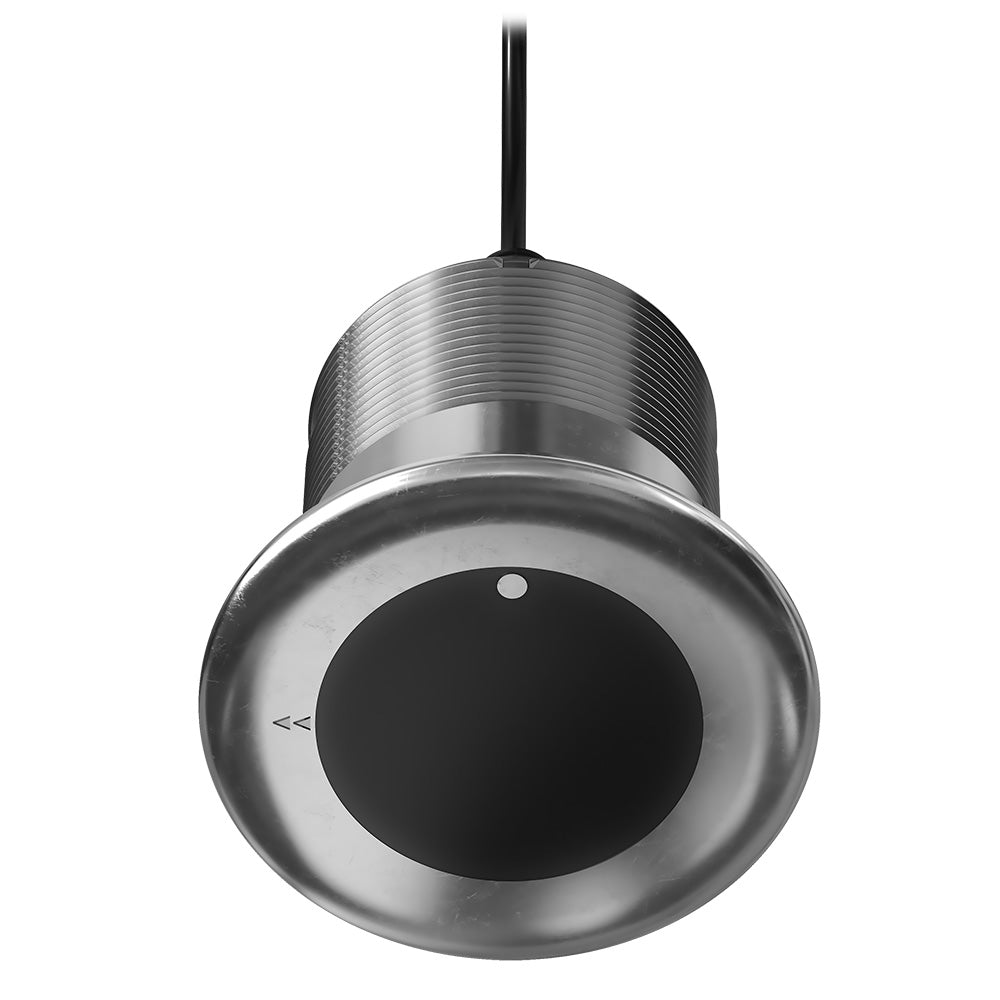

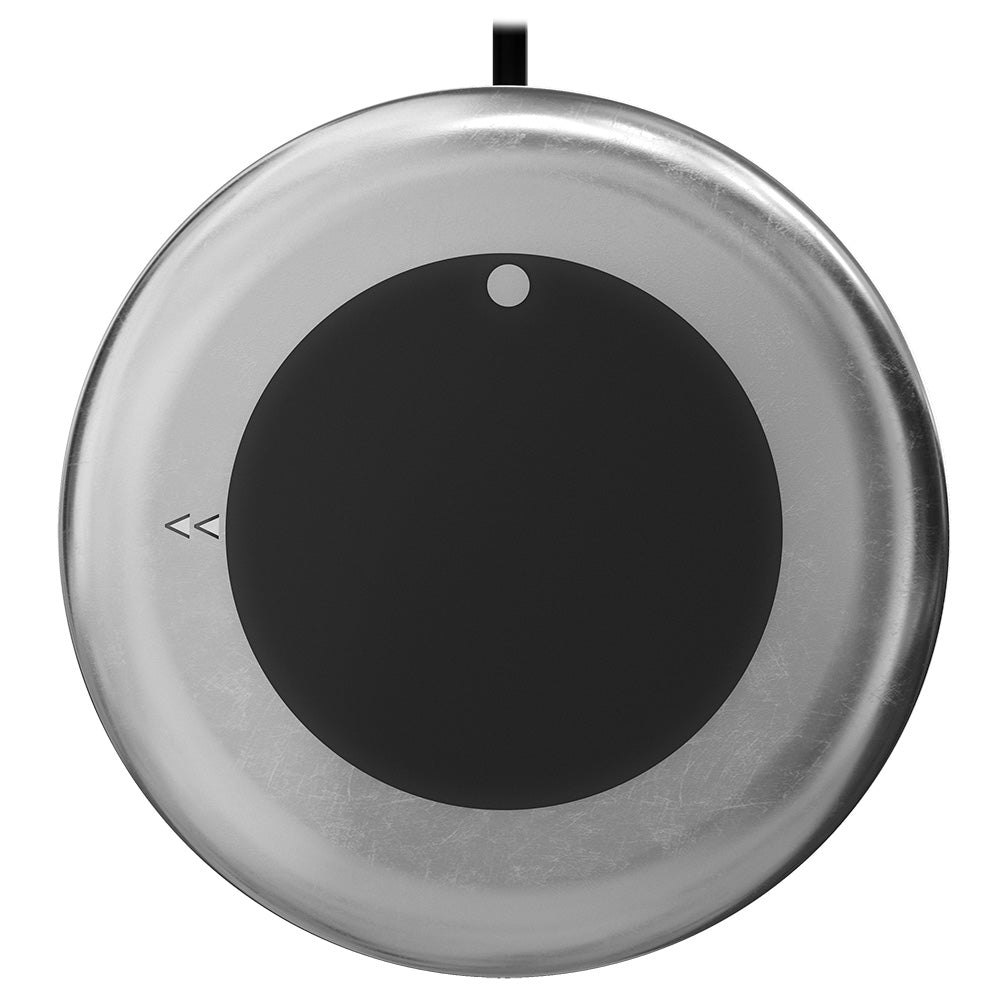

The Garmin GT17M-THF SS is a stainless steel thru-hull flush-mount transducer designed for fishing and cruising boats that need precise sonar performance without added hull drag. Mid-band CHIRP operation across 80–165 kHz at 1 kW resolves fish arches, bottom structure, and contour detail to 1,800 ft in saltwater and 2,400 ft in freshwater. The 20° tilt accommodates hull deadrise angles from 16° to 24° with no fairing block required, and Garmin Auto-ID lets your compatible sonar unit configure itself automatically at startup. Works with fiberglass, composite, steel, aluminum, and wood hulls.

Features:

• Mid-band CHIRP sonar (80–165 kHz) for high resolution, low noise, and clear target separation
• 1 kW output reaches 1,800 ft in saltwater and 2,400 ft in freshwater
• 9°–18° beamwidth balances broad coverage with sharp target definition
• Built-in fast-response water temperature sensing
• Stainless steel housing and stem for long-lasting thru-hull flush installation
• 20° tilt design fits hull deadrise angles from 16° to 24° without a fairing block
• Compatible with fiberglass, composite, steel, aluminum, and wood hulls
• Auto-ID plug-and-play: the sonar unit configures itself to the transducer on startup
• RapidReturn™ Sonar compatible
• 50 ft cable with 8-pin connector

In the Box:

• GT17M-THF transducer
• Jam nut
• Spacer
• 2 washers
• 2 set screws
• Thread isolator
• Hull isolator
• Documentation

Specifications:

• Transducer Frequency: Mid-band CHIRP (80–165 kHz)
• Transducer Power: 1 kW
• Transducer Beamwidth: 9°–18°
• Maximum Depth: 1,800 ft saltwater / 2,400 ft freshwater
• RapidReturn™ Sonar Compatible: Yes
• Cable Length: 50 ft
• Sensing: Depth and temperature
• Connector: 8-pin
• Supported Deadrise Angles: 16°–24° (20° tilt version)
• Housing Material: Stainless steel
