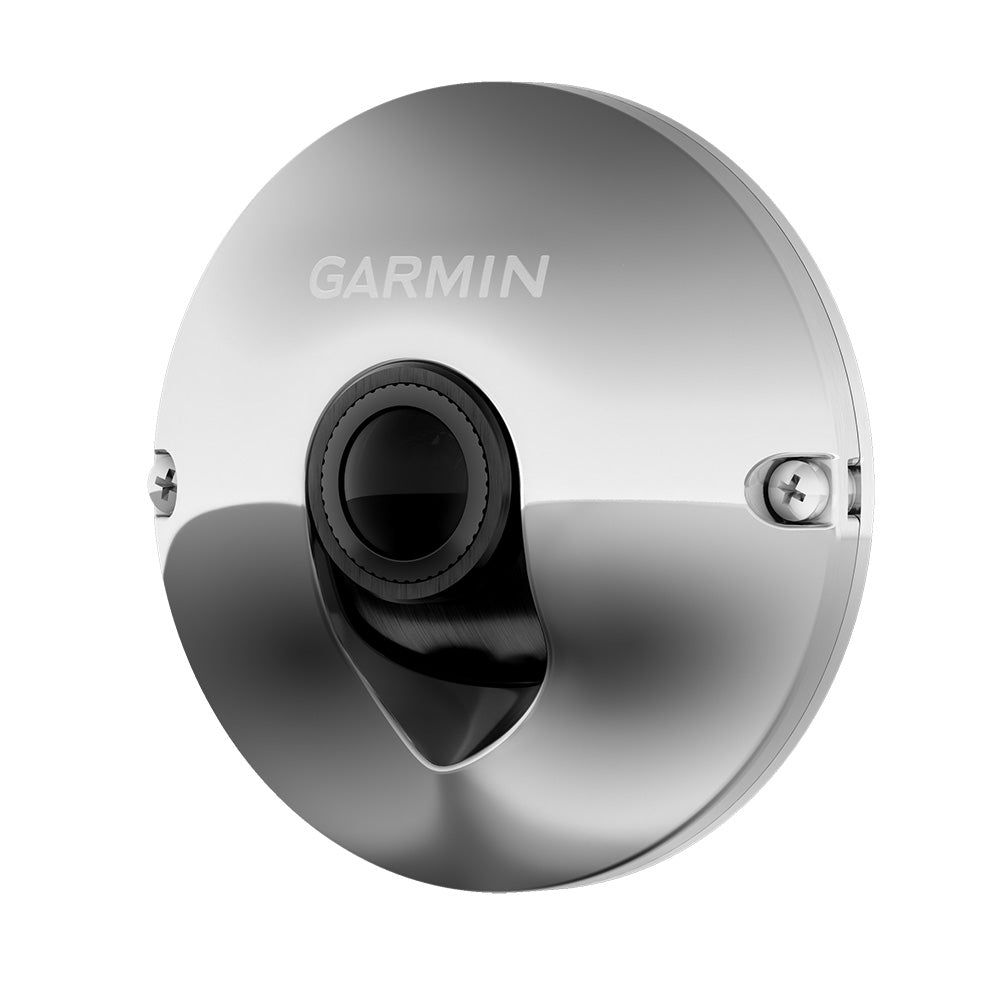

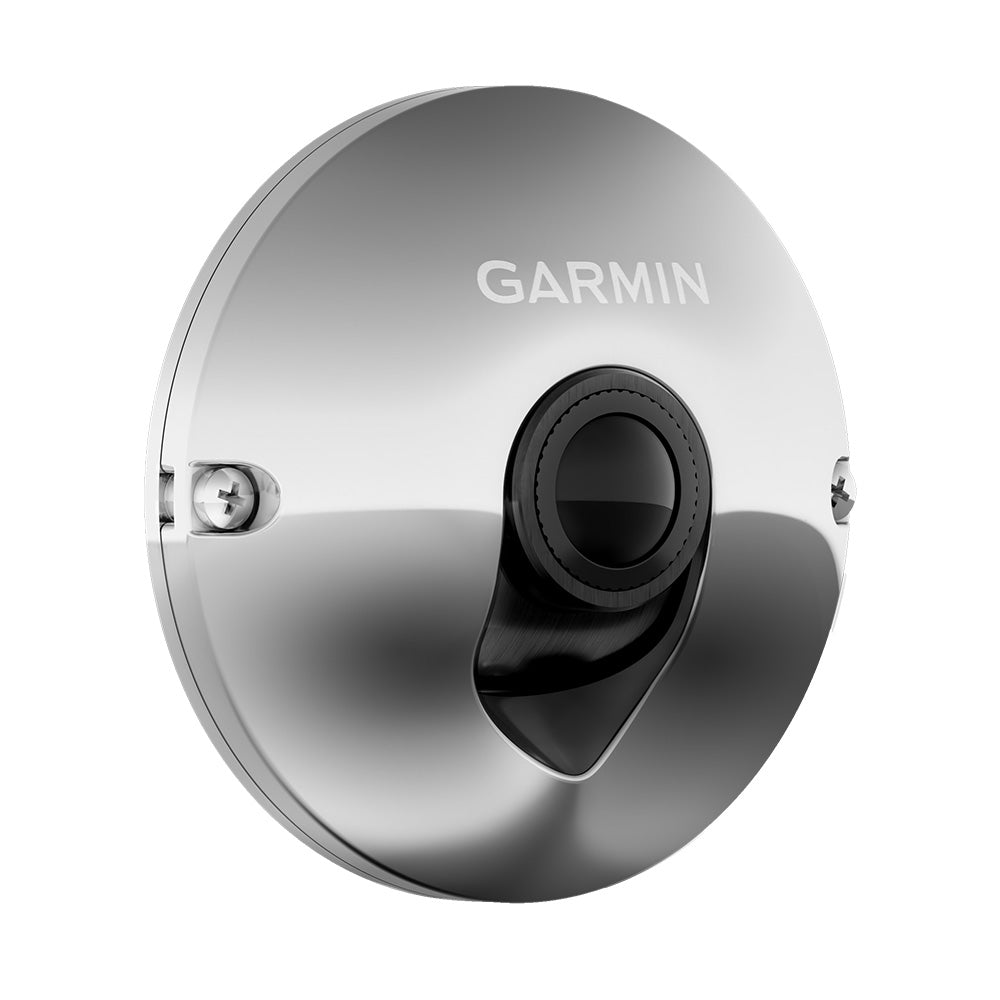

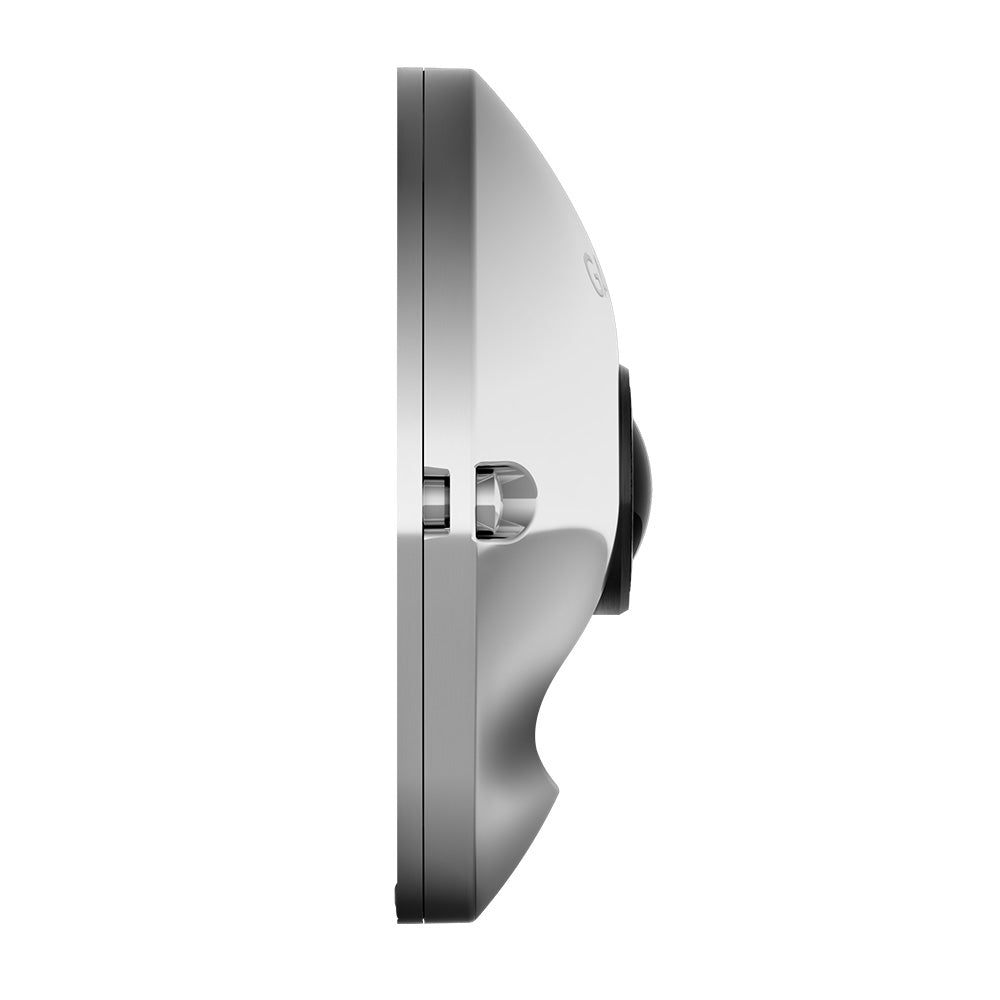

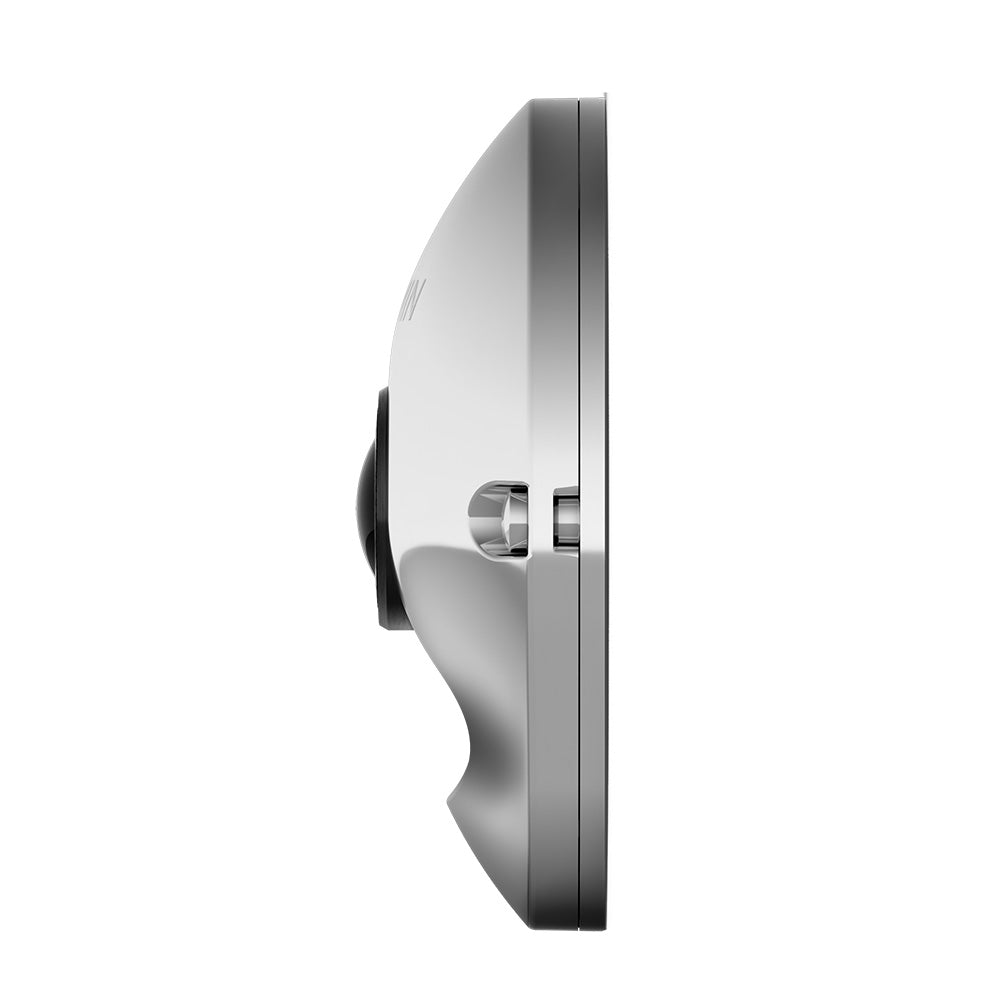

The Garmin GC 255 Flush Mount Camera brings 1080p high-resolution video to your helm, giving you clear proximity awareness during docking and close-quarters maneuvering. Its low-profile stainless steel housing installs thru-hull for a clean, rugged fit, and full integration with the Garmin marine network or Garmin BlueNet™ network means camera feeds display seamlessly on compatible MFDs — up to four feeds simultaneously. User-defined guidance lines, vessel-calibrated distance markers, digital zoom, and digital pan give you precise situational control from the cockpit.

Key Features:

• User-defined guidance lines and vessel-calibrated distance markers for confident maneuvering
• 1080p high-resolution video output
• FishEye, standard, and BirdsEye camera views available
• View up to four camera feeds simultaneously on a compatible MFD
• Digital zoom and digital pan for flexible perspective control
• Low-profile stainless steel flush-mount housing
• Plug-and-play setup with full Garmin marine network and BlueNet™ integration
• Impressive low-light performance

In the Box:

• GC 255 flush mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions (body): 3.2" x 3.2" x 3.3" (8.1 x 8.1 x 8.38 cm)
• Unit dimensions (flush flange): 3.2" x 3.2" x 0.95" (8.1 x 8.1 x 2.4 cm)
• Weight: 22.9 oz (650 g)
• Power input: 12V / 24V hardwire
• Operating current: 300 mA at 12 VDC; 200 mA at 24 VDC
• Power consumption: 4.5 W
• Chartplotter connection: IP
• Mounting type: Thru-hull flush installation
• Install below rub rail: Yes
• Rugged housing: Yes (high impact)
• Setup: Plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels
• Video output: H.264 over GMN and BlueNet™
