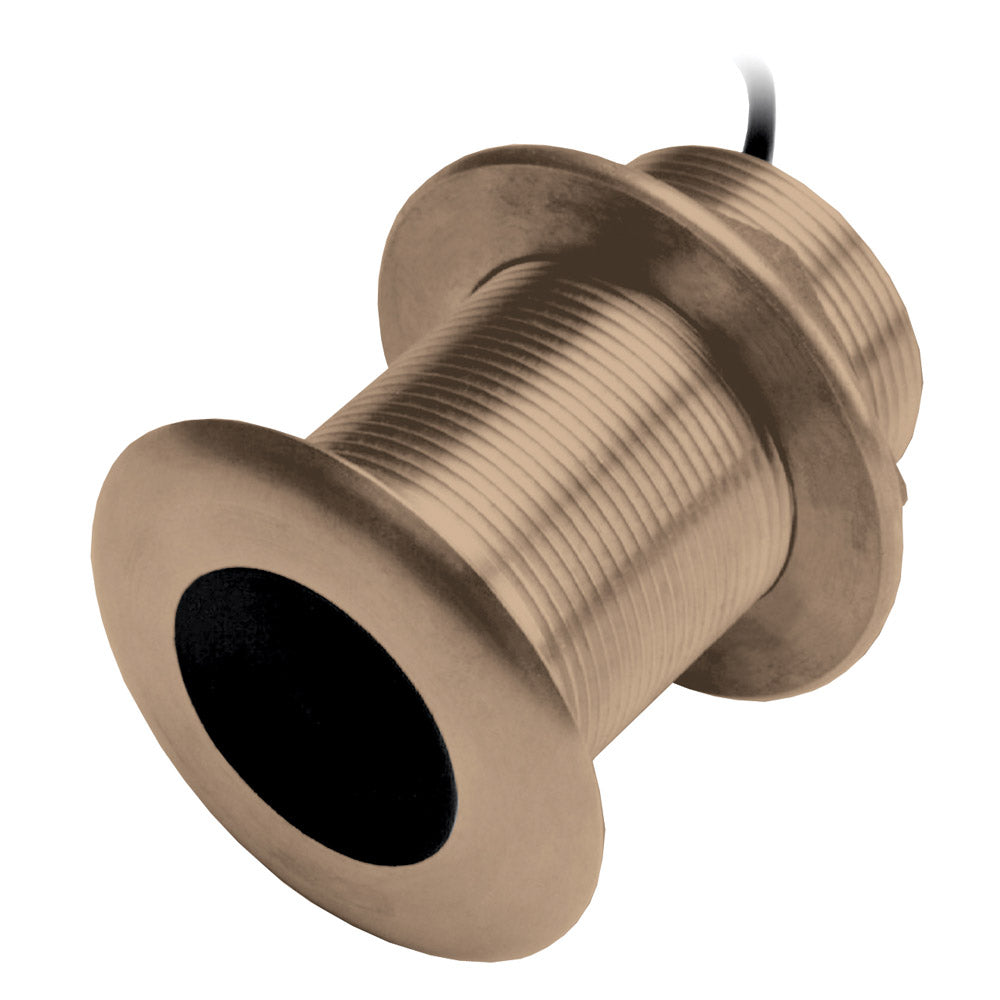

The Garmin B150M bronze thru-hull transducer uses a flush-mount housing with a 12° tilted internal element, letting it sit level on hull deadrises between 8° and 15° without a fairing block. Built on the Airmar B150M platform, it brings entry-level CHIRP capability to fiberglass and wood hulls, reaching depths to 1,500 ft with dependable target separation across low, medium, and high frequency configurations.

Specifications:

• Model: Airmar B150M
• Housing: Flush-mounted bronze thru-hull
• Element Tilt: 12°
• Power Output: 300W
• Connector: 8-Pin
• Frequency Options: Low, medium, and high frequency versions available
• CHIRP: Yes — entry-level CHIRP solution
• Max Depth: 1,500 ft
• Supported Deadrise / Transom Angles: 8–15°
• Compatible Hull Materials: Fiberglass, wood
• Fairing Block Required: No

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
