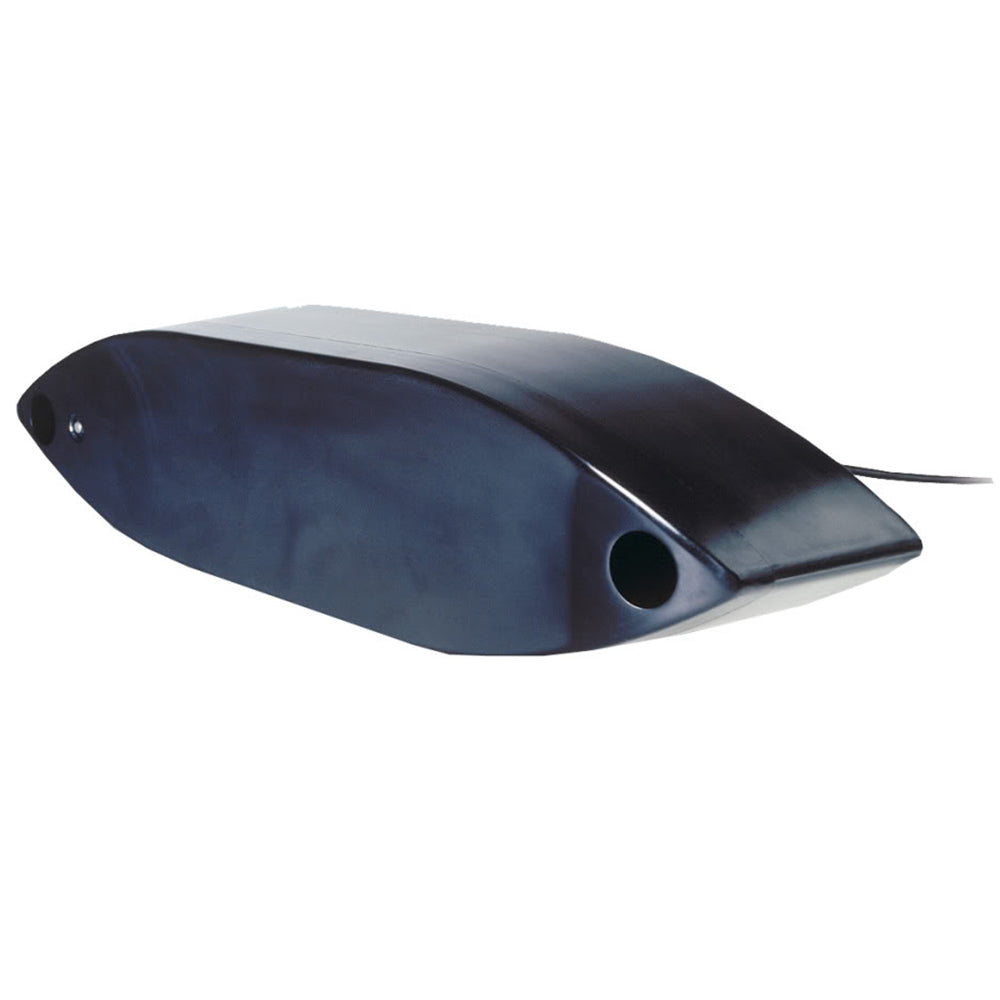

The Garmin Airmar R109LM is a dual-band CHIRP thru-hull transducer engineered for commercial fishermen, charter captains, and serious tournament anglers who require extreme depth capability and precise target separation. Spanning a combined 87 kHz of bandwidth across Low (38–75 kHz) and Medium (80–130 kHz) CHIRP bands from a single install, it reaches bottom to 3,000 m (10,000 ft) and delivers five to ten times the resolution of conventional sonar — well suited for deep-water canyon and sea-mount work in bluewater and offshore environments. The urethane housing with high-performance fairing accommodates fiberglass, wood, and metal hulls 40 ft and above, and Xducer ID technology ensures clean integration with supported Garmin displays.

Specifications:

• Low CHIRP band: 38–75 kHz; 19° to 10° port-starboard beamwidth, 10° to 5° fore-aft beamwidth
• Medium CHIRP band: 80–130 kHz; 13° to 8° beamwidth
• Total bandwidth: 87 kHz from a single transducer
• Covers popular fishing frequencies: 38, 50, 88, and 107 kHz, plus all frequencies within the bandwidth
• Maximum depth capability: 3,000 m (10,000 ft)
• Built-in depth sensor and fast-response water-temperature sensor
• Fishing profile: Commercial and recreational inshore and offshore fishing, including deep-water canyon and sea-mount tracking

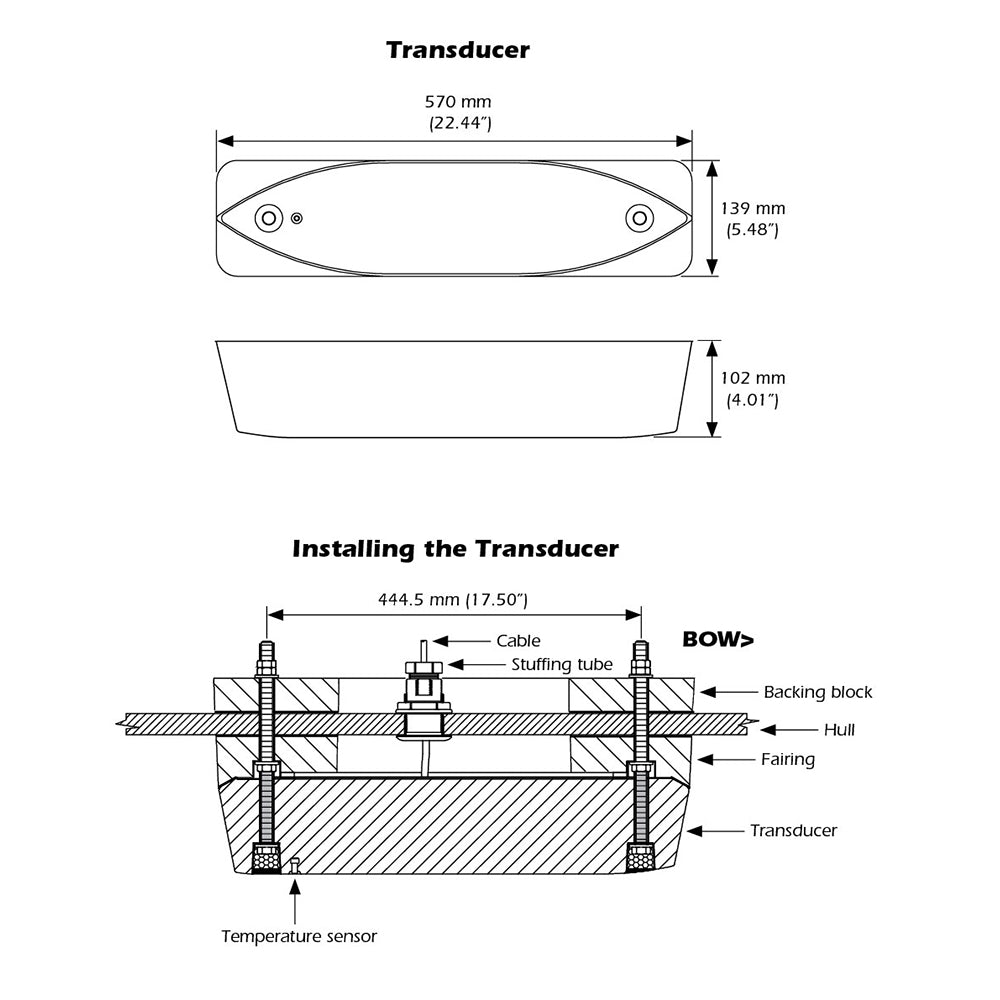

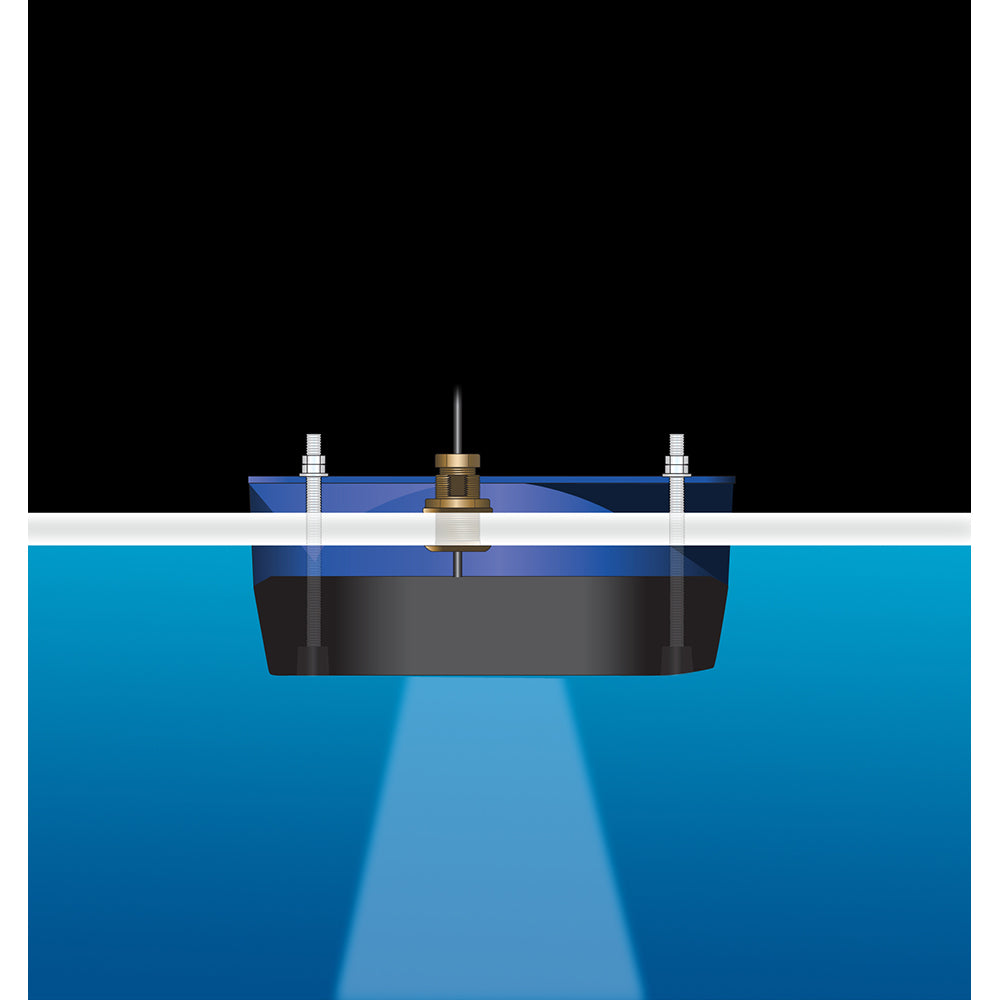

• Transducer housing: Urethane with high-performance fairing
• Minimum boat size: 12 m (40 ft) and above
• Compatible hull types: Fiberglass, wood, or metal
• Hull deadrise: 0° to 25°
• Acoustic window: Epoxy/urethane
• Weight: 15.1 kg (33.3 lb)
• Xducer ID® technology for seamless display compatibility
• Connection: Bare wires
