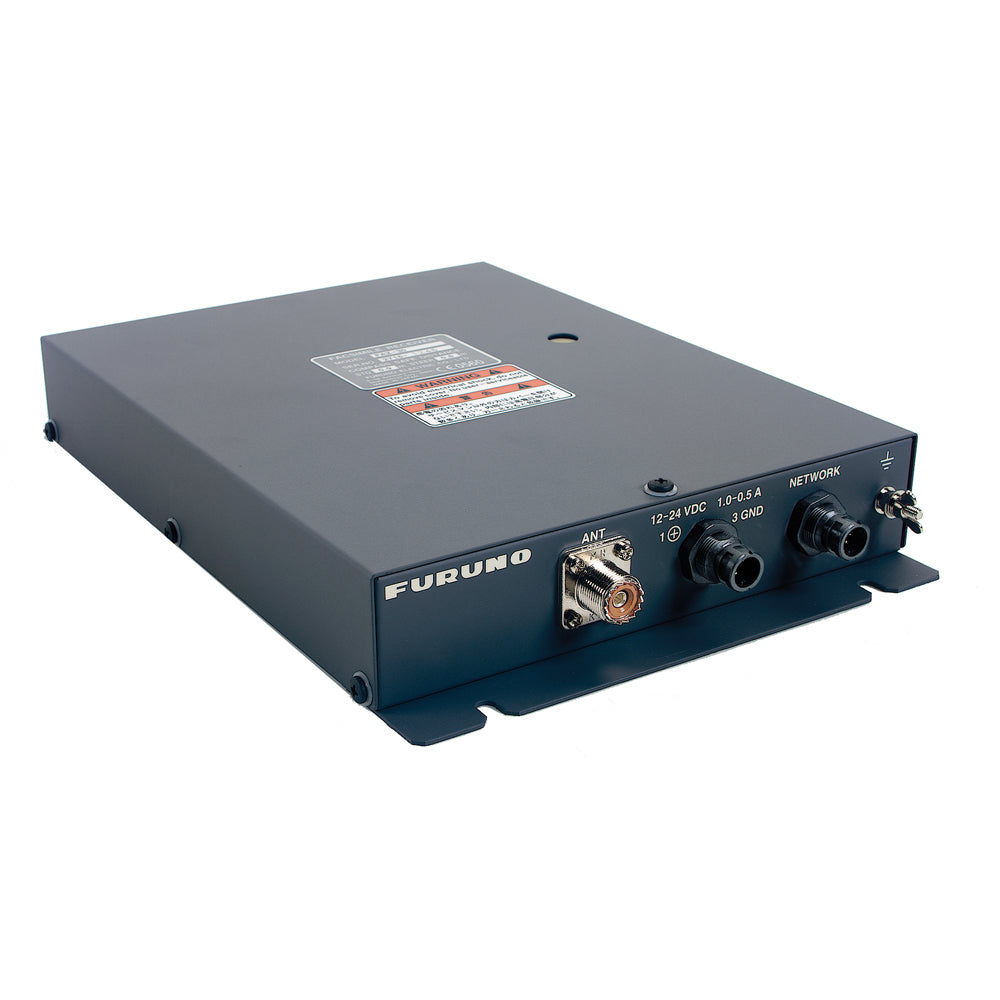

The Furuno FAX30 is a waterproof black-box receiver that brings weatherfax and Navtex capability to any compatible NavNet display or Ethernet-connected PC — no proprietary software required. A single Ethernet cable connects it directly to a 10.4" NavNet display or to an Ethernet hub serving multiple displays simultaneously. On a PC, weather images and Navtex messages are accessed through a standard web browser, and can be printed directly from your PC and printer.

Specifications:

• Connects directly to a 10.4" NavNet display or via Ethernet hub
• Connects to any generic PC with an Ethernet card
• Selectable display colors: 8 grey tones, monochrome, blue shades, pink and black, red and blue
• User-friendly softkey menu operation on NavNet display
• Web browser interface on PC — no proprietary software to install
• Print images and messages from a generic PC and printer
• Stores up to 12 weatherfax images (depending on file size)
• Navtex message table stores up to 130 files
• Stored images and messages accessible at any time
• 320 user-programmed channels
• 1,000 Navtex channels
• Noise rejection for clear image reception
• Thumbnail view for easy browsing of stored images
• Phase and synchronization adjustable even after reception is complete
• Fax Frequency Range: LF 80 kHz–160 kHz; MF/HF 2 MHz–25 MHz
• Navtex Frequency Range: 490 kHz or 518 kHz
• Fax Mode of Reception: F3C, J3C
• Navtex Mode of Reception: F1B
• Waterproof rating: IEC 60529
• Power: 12–24V DC, 15W maximum
• Shipping weight: 8 lbs., 1 carton
• Antenna not included

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
