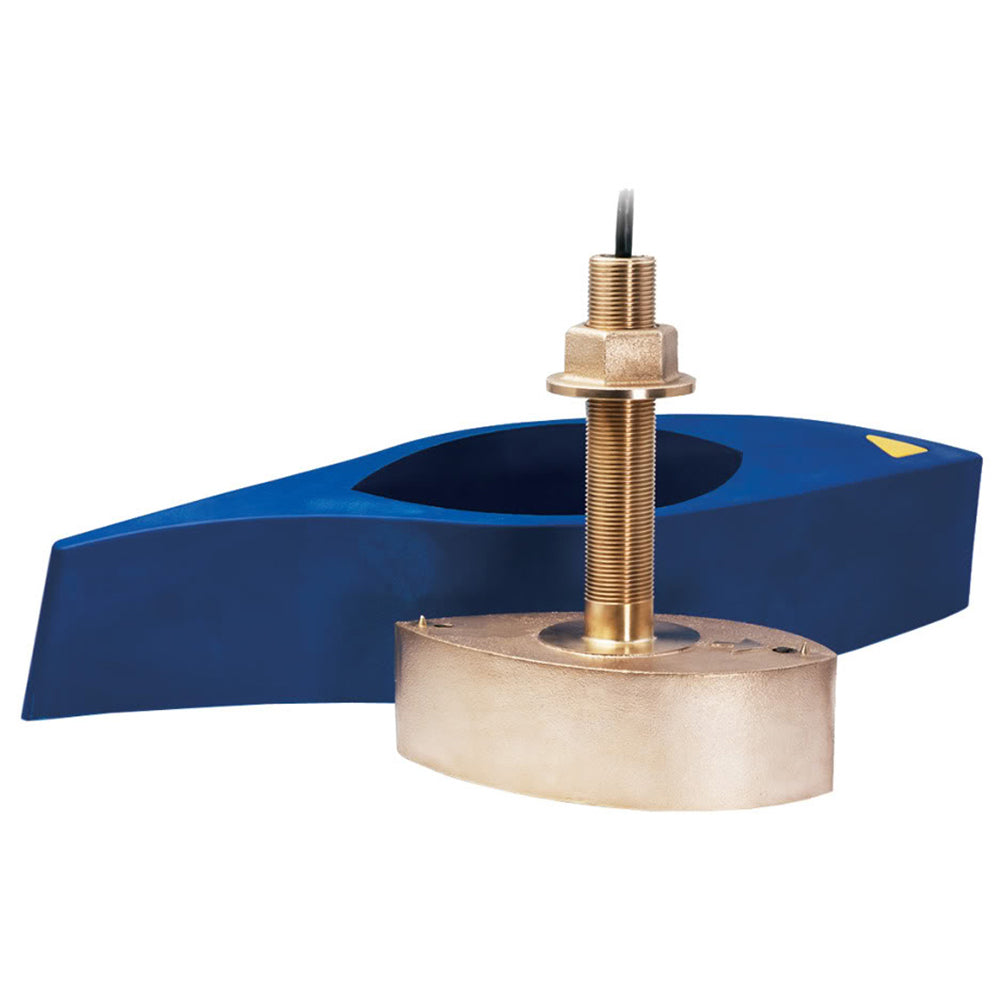

The Furuno 526T-HDN is a bronze broadband thru-hull transducer built for serious depth sounding, combining 1kW output with dual-frequency operation and an integrated temperature sensor. Broadband technology delivers sharp bottom definition across a wide range of depths, while the included high-speed fairing block keeps performance consistent at elevated vessel speeds. No plug is provided, making this suited for direct wiring installations.

Specifications:

• Output power: 1 kW
• Frequencies: 50/200 kHz (no diplexer)
• Beam angles: 20° (50 kHz) / 6° (200 kHz)
• Hull fitting: bronze thru-hull with integrated temperature sensor
• Cable length: 10 meters
• Connector: none provided (no plug)
• Includes high-speed fairing block (Furuno part # AIR-033-391)
• Element designation: B260
• MB1100 may be required for certain applications — contact Furuno for compatibility details

Resources:

• Product Brochure (PDF)
