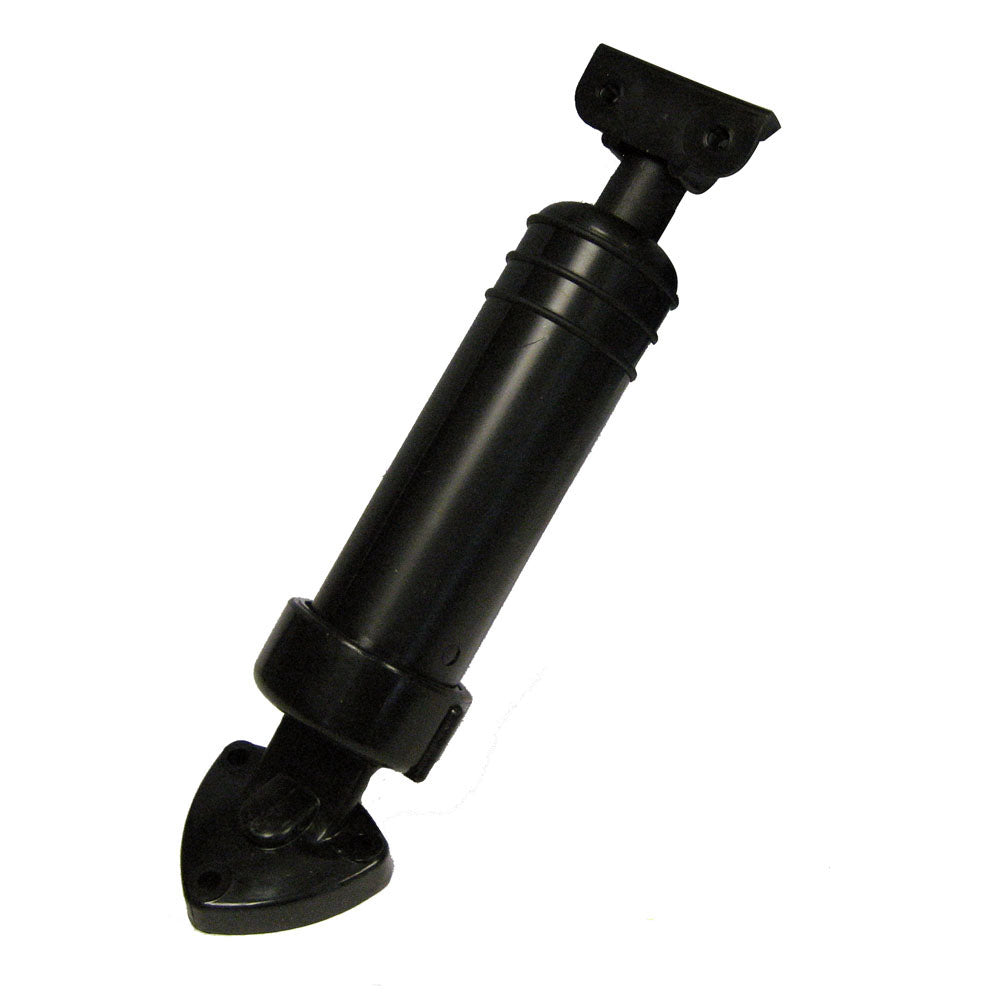

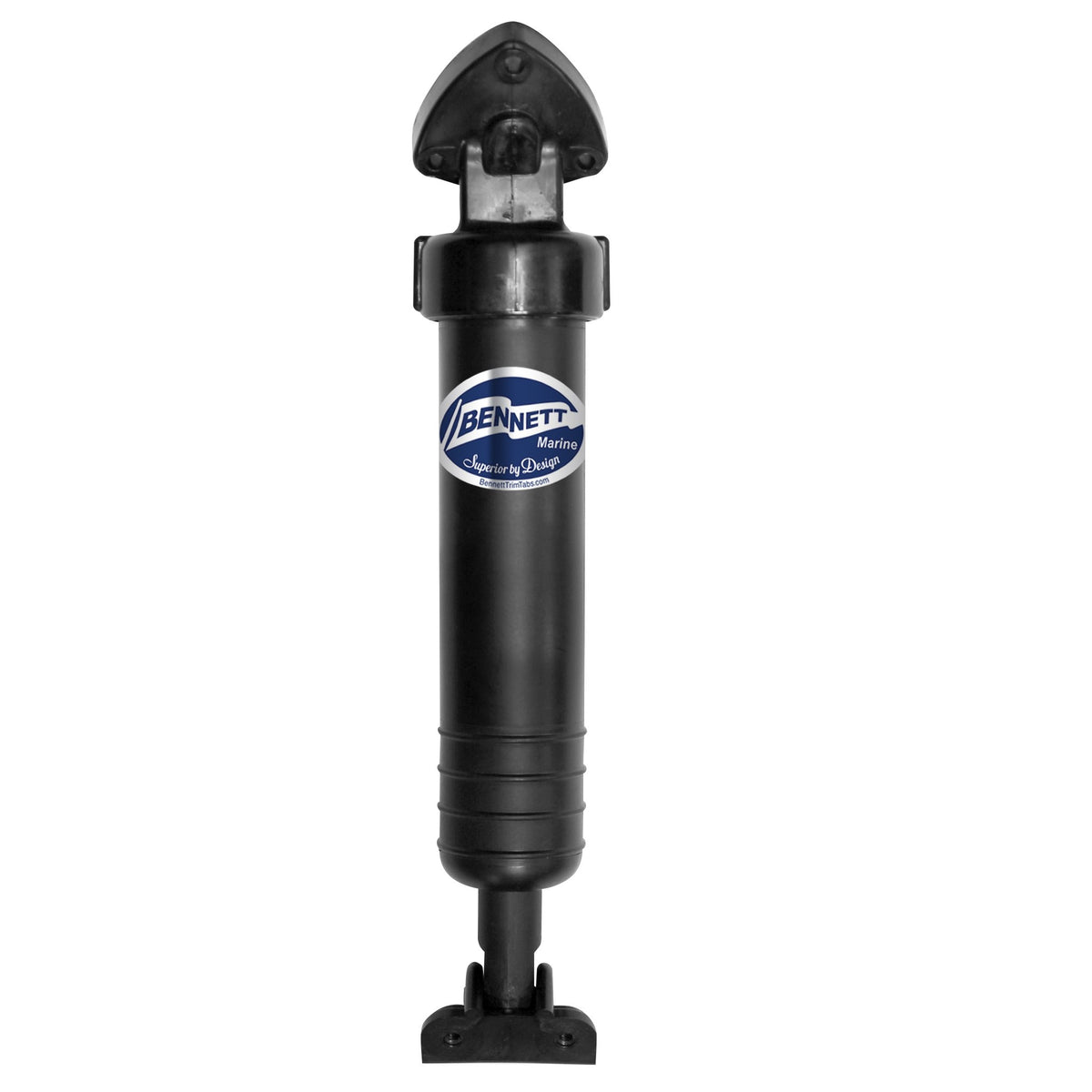

The Bennett Trim Tab Actuator Assembly is a complete hydraulic cylinder designed to push trim tab planes into position with reliable, piston-driven force. Built with a sophisticated plastic resin body and a nylon upper hinge, this unit routes hydraulic fluid through a concealed passage in the upper hinge — eliminating external hoses that are vulnerable to damage. The assembly flexes 5° during operation and is engineered to handle the demands of offshore conditions. Compatible with Bennett standard trim tabs only.

Specifications:

• Complete hydraulic cylinder actuator assembly

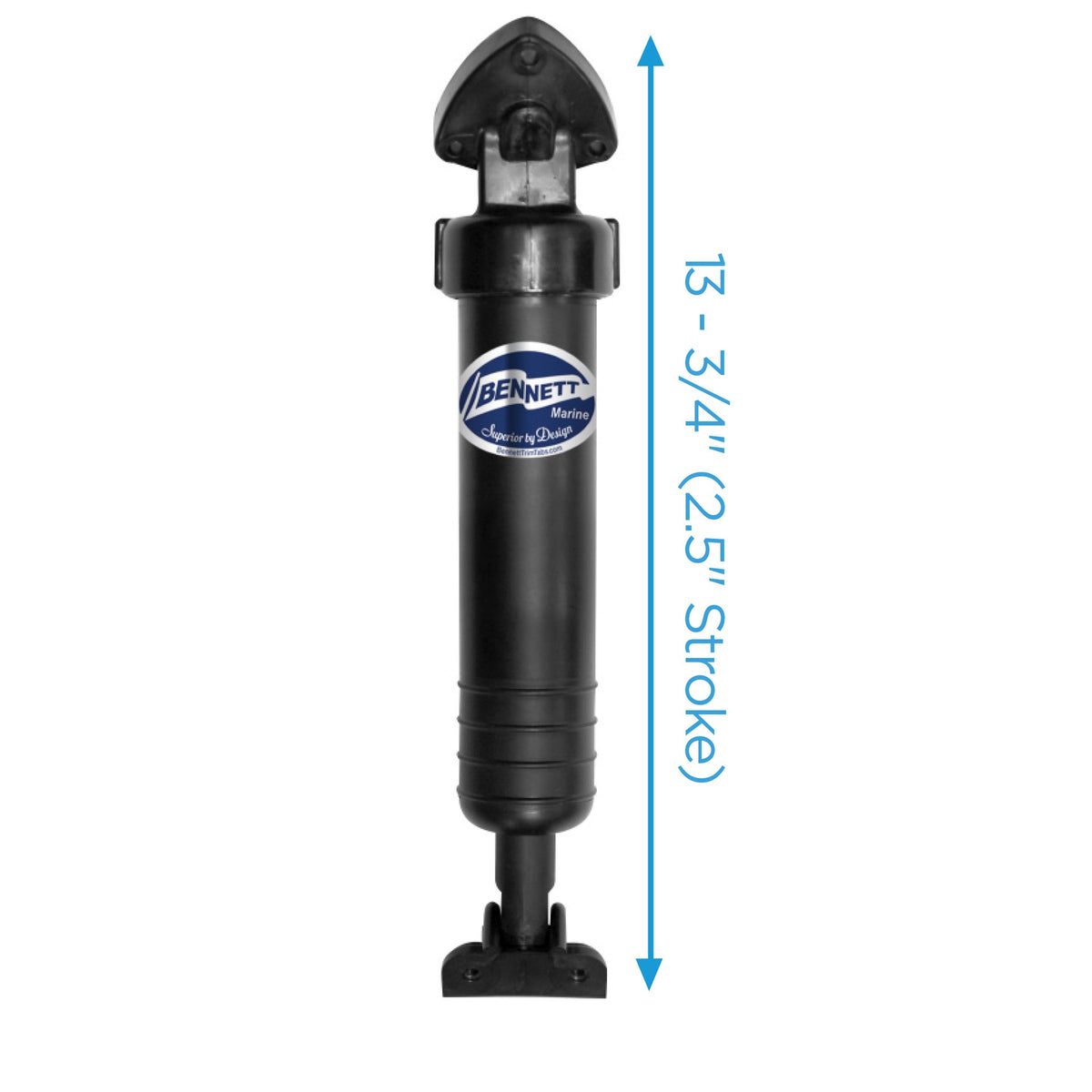

• Closed length: 13.75"
• Plastic resin body construction
• Nylon upper hinge
• 5° flex in actual use
• Hydraulic fluid routed through concealed port in upper hinge — no external hoses
• Designed for offshore durability
• Compatible with Bennett standard trim tabs only

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
