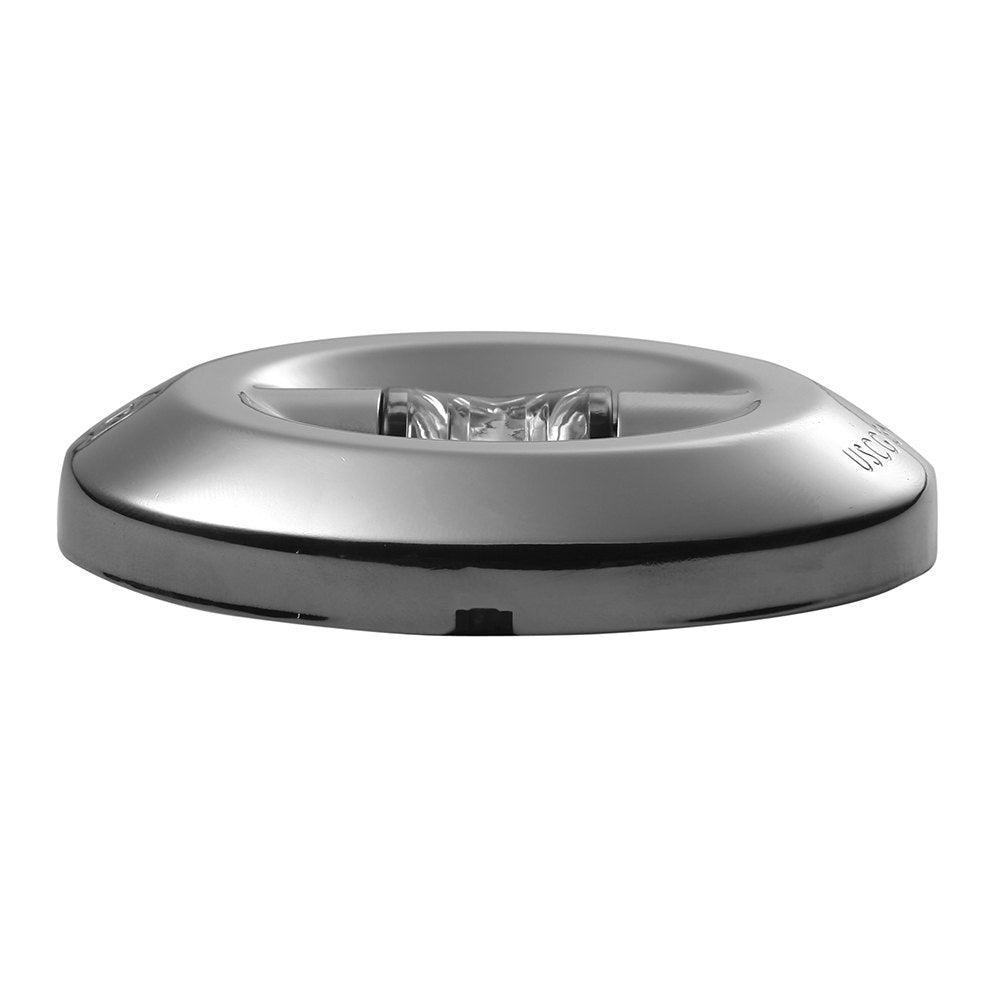

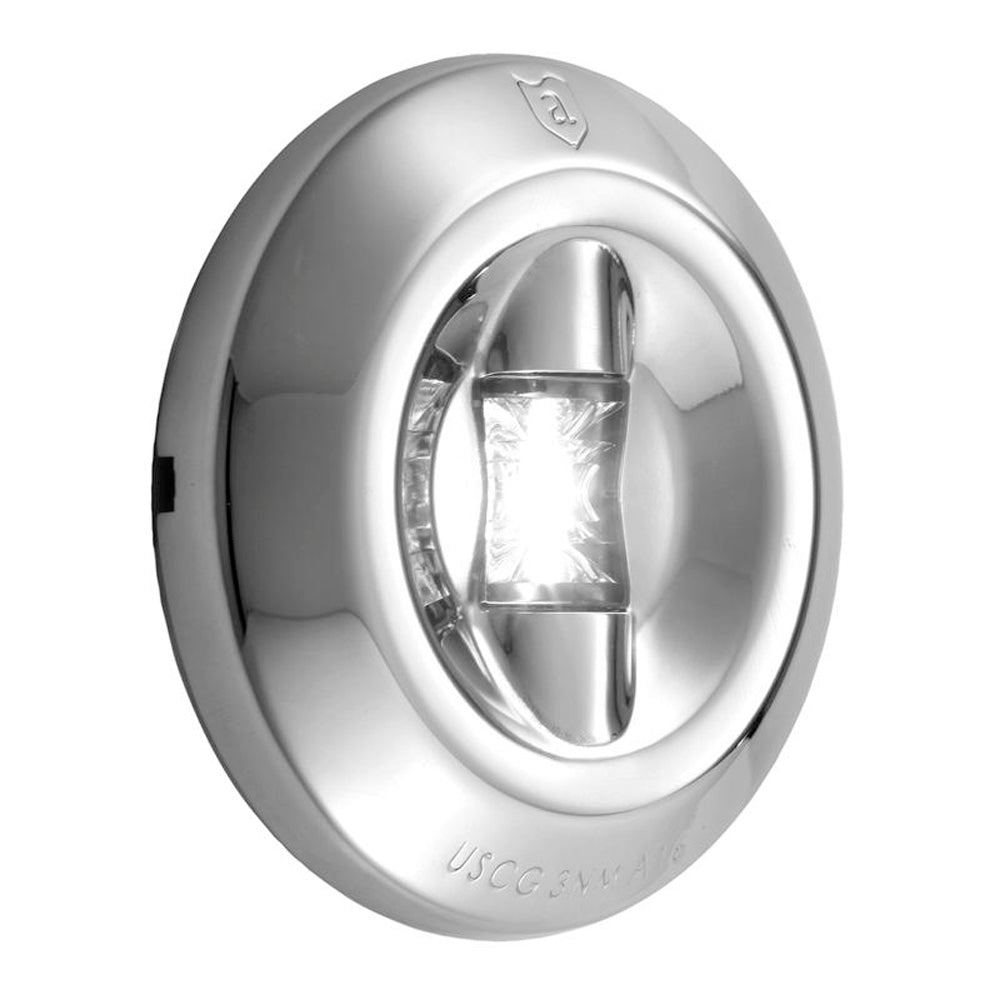

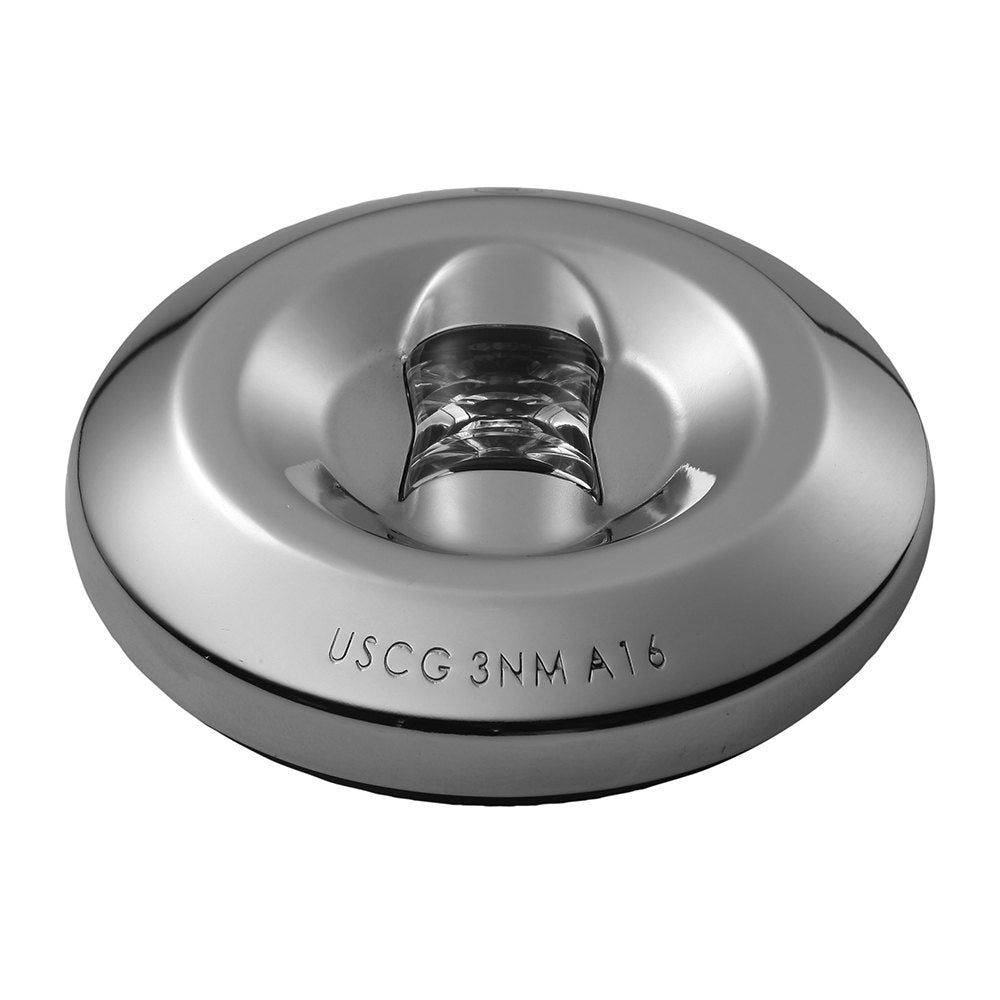

The Attwood 6556-7 is a USCG-compliant LED transom navigation light rated to 3 nautical miles — one of the first LED sternlights to meet that standard. Proprietary optics concentrate 135 degrees of white light aft while keeping the helm in a natural shadow. The electropolished stainless steel cover resists corrosion, and a snap-in surface-mount design eliminates exposed fasteners for a clean installation on any transom that accepts Attwood or Perko mounting patterns. At just 1.5 watts, it draws minimal current from a 12V system and is rated for 50,000+ hours of service.

Specifications:

• Part Number: 6556-7
• Rated Visibility: 3 nautical miles (3NM)
• Beam Angle: 135 degrees
• Power Draw: 1.5W at 12VDC
• Suitable For: Pleasure craft up to 164 ft. (50 m) in length
• Housing: Electropolished stainless steel
• Mounting: Surface-mount snap design, no exposed fasteners
• Mounting Compatibility: Attwood and Perko mounting hole patterns
• Diameter: 3 inches
• Rated Service Life: 50,000+ hours
• Warranty: 10 years

Resources:

• Installation Guide (PDF)
• Quick Guide (PDF)
