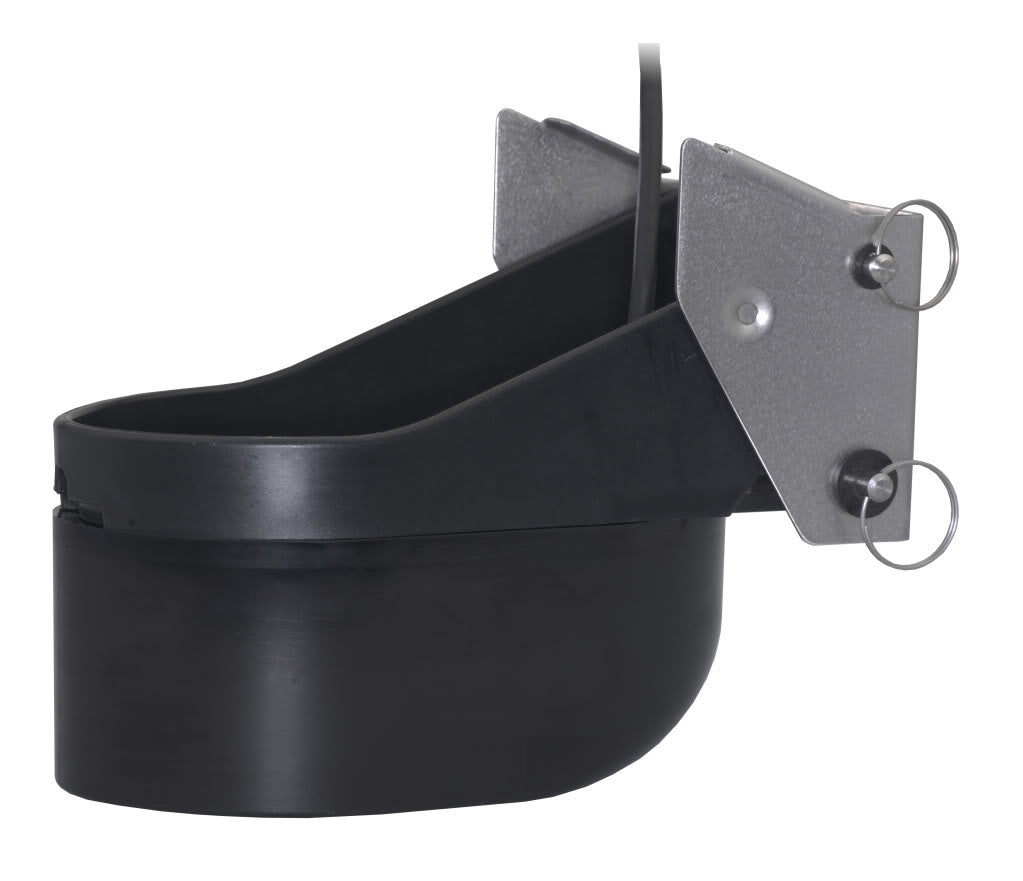

The Airmar TM260 brings the proven depth-finding capability of the B260 to a transom-mount form factor, pairing a large 200 kHz element with a seven-element 50 kHz array for sharp bait and game fish separation and reliable bottom detection. The streamlined urethane housing and kick-up bracket mount cleanly on transoms angled between 3° and 21°, and the hydrodynamic profile sustains stable readings at speeds up to 30 knots. Wires directly to Navico fishfinders equipped with the 7-pin blue connector.

Specifications:

• Transom-mount urethane housing
• Measures depth and water temperature
• Maximum depth range — 50 kHz: 529 m to 735 m (1,800–2,500 ft); 200 kHz: 206 m to 294 m (700–1,000 ft)
• Recommended boat size: 8 m to 12 m (25–40 ft)
• Beam angle: 19° at 50 kHz; 6° at 200 kHz
• Compatible with 600 W or 1 kW sounders
• Cable length: 10 m (33 ft)
• Kick-up assembly locks in the up position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• High-speed performance rated to 30 knots (35 MPH)
• Fits: Navico units with 7-pin blue connector

Fishing Applications:

• Blue-water trolling using 50 kHz
• Deep-water bottom and wreck fishing to 800 m (2,625 ft)

Resources:

• Installation Guide (PDF)
• Quick Start Guide (PDF)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
